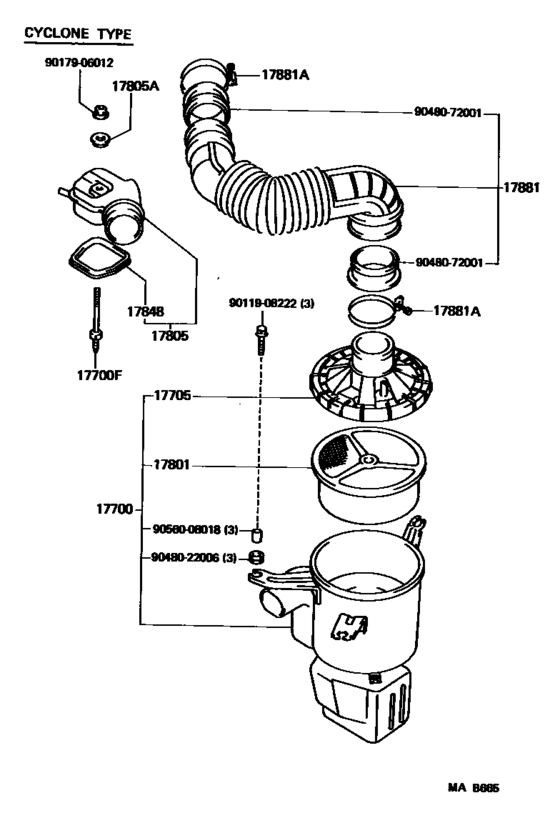

Air Cleaner ([08.1988 - ] (8808- )2Y#) Diagram Toyota LITEACE
- Year
- 1989 - 1998
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 05.1989
- To
- 04.1998
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-72101
Cleaner Assy, Air
[08.1988 - 04.1998] 2Y#..YM30,35 |
17700-72101 |
— | ||
|
17700
|
17700
17700-72111 Cleaner Assy, Air[08.1988 - 04.1998] 2Y#..YM30,35 W(CYCLONE TYPE) |
17700-72111 |
US $423.70 |
||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[08.1988 - 04.1998] 2Y#..YM3# |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-72040 Cap Sub-Assy, Air Cleaner[08.1988 - 04.1998] 2Y#..YM30,35 |
17705-72040 |
US $40.91 |
||
|
17705
|
17705
17705-72050 Cap Sub-Assy, Air CleanerAIR CLEANER [08.1988 - 04.1998] 2Y#..YM30,35 W(CYCLONE TYPE) |
17705-72050 |
US $40.91 |
||
|
17801
|
17801
17801-13050 Element Sub-Assy, Air Cleaner Filter[08.1988 - 04.1998] 5K#..KM3#; 2Y#..YM3# |
17801-13050 |
from US $26.01 |
||
|
17805
|
17805
17805-72020
Connector Sub-Assy, Intake Air
[08.1988 - 04.1998] 2Y#..YM3# |
17805-72020 |
— | ||
|
17805A
|
17805A
90210-09026 Washer, Seal(For Air Cleaner)[08.1988 - 04.1998] 2Y#..YM3# |
90210-09026 |
from US $2.63 |
||
|
17848
|
17848
17848-35010 Gasket, Air Cleaner To Carburetor[08.1988 - 04.1998] 2Y#..YM3# |
17848-35010 |
from US $6.64 |
||
|
17881
|
17881
17881-72020
Hose, Air Cleaner, No.1
[08.1988 - 04.1998] 2Y#..YM3# |
17881-72020 |
— | ||
|
17881A
|
17881A
90460-80001
Clamp, Hose
[08.1988 - 04.1998] 5K#..KM3#; 2Y#..YM3# |
90460-80001 |
— | ||
| replacement | |||||
|
17881A
|
17881A
90460-80006 Clamp, Hose[08.1988 - 04.1998] 5K#..KM3#; 2Y#..YM3# |
90460-80006 |
from US $9.07 |
||
|
9011908222
|
9011908222
90119-08222
New Genuine Part
|
90119-08222 |
— | ||
|
9017906012
|
9017906012
90179-06012 New Genuine Part |
90179-06012 |
US $2.48 |
||
|
9048022006
|
9048022006
90480-22006 New Genuine Part |
90480-22006 |
US $3.14 |
||
|
9048072001
|
9048072001
90480-72001 New Genuine Part |
90480-72001 |
US $6.84 |
||
|
9056008018
|
9056008018
90560-08018 Spacer, Air Cleaner Inlet |
90560-08018 |
US $2.91 |
||
