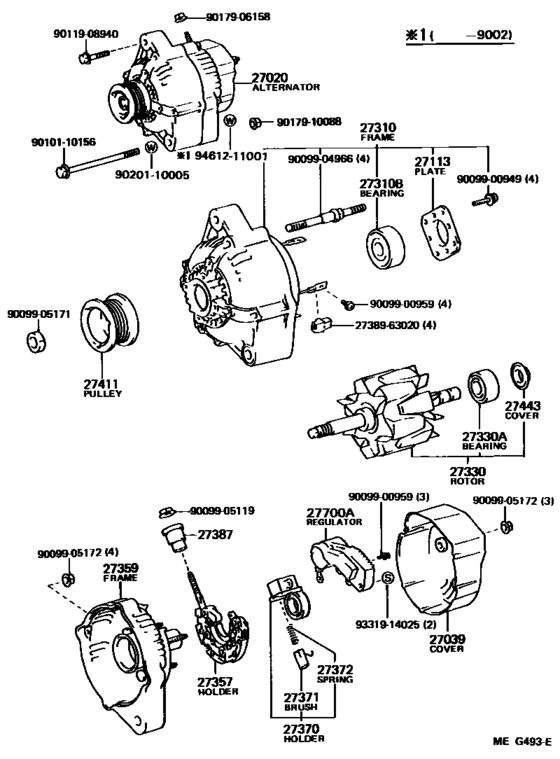

Alternator ([08.1988 - ] 12V 60A (8808- )2Y#) Diagram Toyota LITEACE
- Year
- 1989 - 1998
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 05.1989
- To
- 04.1998
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-72071 Alternator Assy[08.1988 - 04.1998] 2Y#..YM3# 12V 60A |
27060-72071 |
US $1,375.92 |
||
|
27039
|
27039
27039-72110
Cover, Alternator Rear End
[08.1988 - 08.1990] 2C,2Y#..CM36,YM3# |
27039-72110 |
— | ||
|
27113
|
27113
27312-72100 Plate, Bearing Retainer, Alternator[08.1988 - 04.1998] 2Y#..YM3# |
27312-72100 |
US $3.92 |
||
|
27310
|
27310
27310-72110
Frame Assy, Drive End, Alternator
[08.1988 - 04.1998] 2Y#..YM3# |
27310-72110 |
— | ||
|
27310B
|
27310B
90099-10159
Bearing(For Alternator Drive End Frame)
[08.1988 - 05.1991] 2Y#..YM3# |
90099-10159 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10199 Bearing(For Alternator Drive End Frame)[08.1988 - 05.1991] 2Y#..YM3# |
90099-10199 |
from US $19.39 |
||
|
27310B
|
27310B
90099-10199 Bearing(For Alternator Drive End Frame)[05.1991 - 04.1998] 2Y#..YM3# |
90099-10199 |
from US $19.39 |
||
|
27330
|
27330
27330-10021
Rotor Assy, Alternator
[08.1988 - 04.1998] 2Y#..YM3# |
27330-10021 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1988 - 04.1998] 2C,2Y#..CM36,YM3# |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63040
Holder, Alternator, W/rectifier
[08.1988 - 08.1990] 2C,2Y#..CM36,YM3# |
27357-63040 |
— | ||
|
27359
|
27359
27359-16081
Frame, Alternator Rectifier End
[08.1988 - 04.1998] 2Y#..YM3# |
27359-16081 |
— | ||
|
27370
|
27370
27370-63021
Holder Assy, Alternator Brush
[08.1988 - 05.1991] 2Y#..YM3# |
27370-63021 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[08.1988 - 05.1991] 2Y#..YM3# |
27370-35060 |
from US $17.39 |
||
|
27370
|
27370
27370-70300
Holder Assy, Alternator Brush
[05.1991 - 04.1998] 2Y#..YM3# |
27370-70300 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[05.1991 - 04.1998] 2Y#..YM3# |
27370-35060 |
from US $17.39 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[08.1988 - 08.1989] 2C,2Y#..CM36,YM3# |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1988 - 08.1989] 2C,2Y#..CM36,YM3# |
27371-70300 |
from US $2.97 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[05.1991 - 04.1998] 2C,2Y#..CM36,YM3# |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[08.1991 - 09.1991] 2Y#..YM3# |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1991 - 09.1991] 2Y#..YM3# |
27372-87501 |
— | ||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[08.1988 - 08.1991] 2C,2Y#..CM36,YM3# |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1988 - 08.1991] 2C,2Y#..CM36,YM3# |
27372-87501 |
— | ||
|
27387
|
27387
27387-70170
Insulator, Terminal
[08.1988 - 04.1998] 2C,2Y#..CM36,YM3# |
27387-70170 |
— | ||
|
27411
|
27411
27411-16150
Pulley, Alternator
[08.1988 - 04.1998] 2Y#..YM3# |
27411-16150 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1988 - 04.1998] 2C,2Y#..CM36,YM3# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[02.1989 - 08.1990] 2C,2Y#..CM36,YM3# |
27700-70030 |
US $263.54 |
||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900949
|
9009900949
90099-00949
New Genuine Part
|
90099-00949 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010110156
|
9010110156
90101-10156 Bolt(For Alternator) |
90101-10156 |
US $6.24 |
||
|
9011908940
|
9011908940
90119-08940 New Genuine Part |
90119-08940 |
US $1.89 |
||
| replacement | |||||
|
9011908940
|
9011908940
91611-60840 BOLT |
91611-60840 |
US $2.08 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9020110005
|
9020110005
90201-10005 Washer, Plate(For Cylinder Head Set) |
90201-10005 |
from US $2.56 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
