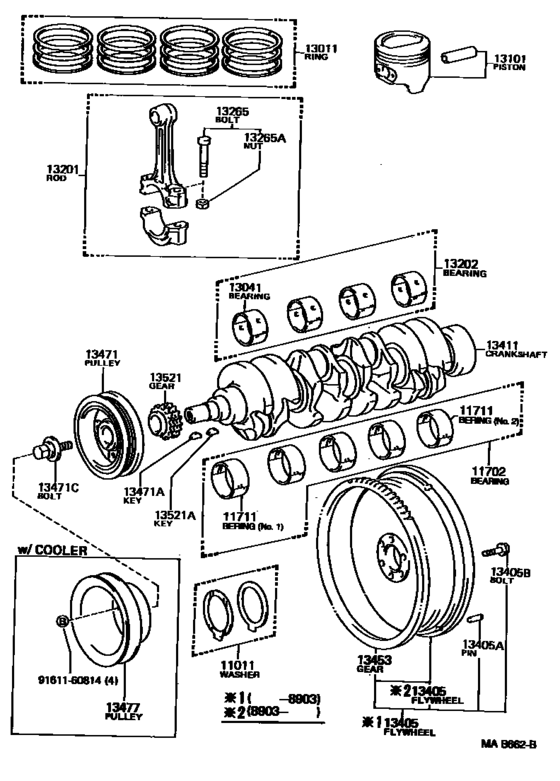

Crankshaft & Piston ([08.1988 - ] (8808- )2Y#) Diagram Toyota LITEACE
- Year
- 1989 - 1998
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 05.1989
- To
- 04.1998
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[08.1988 - 04.1998] 2Y#..YM3# STD |
11011-25010 |
from US $20.67 |
||
|
11702
|
11702
11704-71020 Bearing Set, Crankshaft (0.25)[08.1988 - 12.1995] 2Y#..YM3# U/S 0.25 |
11704-71020 |
US $206.17 |
||
|
11702
|
11702
11704-71030
Bearing Set, Crankshaft (0.25)
[12.1995 - 04.1998] 2Y..YM3# U/S 0.25 |
11704-71030 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-73010 Bearing Set, Crankshaft (0.25)[12.1995 - 04.1998] 2Y..YM3# U/S 0.25 |
11704-73010 |
US $309.25 |
||
|
11711
|
11711
11071-71010-01
Bearing, Crankshaft
[12.1995 - 04.1998] 2Y..YM3# MARK 1,NO.1 |
11071-71010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-73010-01 Bearing, Crankshaft[12.1995 - 04.1998] 2Y..YM3# MARK 1,NO.1 |
11071-73010-01 |
US $53.14 |
||
|
11711
|
11711
11071-71010-02
Bearing, Crankshaft
[12.1995 - 04.1998] 2Y..YM3# MARK 2,NO.1 |
11071-71010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-73010-02 Bearing, Crankshaft[12.1995 - 04.1998] 2Y..YM3# MARK 2,NO.1 |
11071-73010-02 |
US $53.14 |
||
|
11711
|
11711
11071-71010-03
Bearing, Crankshaft
[12.1995 - 04.1998] 2Y..YM3# MARK 3,NO.1 |
11071-71010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-73010-03 Bearing, Crankshaft[12.1995 - 04.1998] 2Y..YM3# MARK 3,NO.1 |
11071-73010-03 |
US $53.14 |
||
|
11711
|
11711
11701-71020-01 Bearing, Crankshaft[08.1988 - 12.1995] 2Y#..YM3# MARK 1 |
11701-71020-01 |
US $45.43 |
||
|
11711
|
11711
11701-71020-02 Bearing, Crankshaft[08.1988 - 12.1995] 2Y#..YM3# MARK 2 |
11701-71020-02 |
US $45.43 |
||
|
11711
|
11711
11701-71020-03 Bearing, Crankshaft[08.1988 - 12.1995] 2Y#..YM3# MARK 3 |
11701-71020-03 |
US $45.43 |
||
|
11711
|
11711
11701-71030-01
Bearing, Crankshaft
[12.1995 - 04.1998] 2Y..YM3# MARK 1,NO.2 |
11701-71030-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-73010-01 Bearing, Crankshaft[12.1995 - 04.1998] 2Y..YM3# MARK 1,NO.2 |
11701-73010-01 |
US $53.14 |
||
|
11711
|
11711
11701-71030-02
Bearing, Crankshaft
[12.1995 - 04.1998] 2Y..YM3# MARK 2,NO.2 |
11701-71030-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-73010-02 Bearing, Crankshaft[12.1995 - 04.1998] 2Y..YM3# MARK 2,NO.2 |
11701-73010-02 |
US $53.14 |
||
|
11711
|
11711
11701-71030-03
Bearing, Crankshaft
[12.1995 - 04.1998] 2Y..YM3# MARK 3,NO.2 |
11701-71030-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-73010-03 Bearing, Crankshaft[12.1995 - 04.1998] 2Y..YM3# MARK 3,NO.2 |
11701-73010-03 |
US $53.14 |
||
|
13011
|
13011
13011-71031 Ring Set, Piston[05.1989 - 10.1990] 2Y..YM35 STD |
13011-71031 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13011-71033 Ring Set, PistonPISTON [05.1989 - 10.1990] 2Y..YM35 STD |
13011-71033 |
US $143.07 |
||
|
13011
|
13011
13011-71032
Ring Set, Piston
[10.1990 - 12.1992] 2Y..YM31,35 STD |
13011-71032 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-71033 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YM31,35 STD |
13011-71033 |
US $143.07 |
||
|
13011
|
13011
13011-71033 Ring Set, PistonPISTON [12.1992 - 04.1998] 2Y..YM3# STD |
13011-71033 |
US $143.07 |
||
|
13011
|
13011
13013-71031 Ring Set, Piston[05.1989 - 10.1990] 2Y..YM35 O/S 0.50 |
13013-71031 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13013-71033 Ring Set, PistonPISTON [05.1989 - 10.1990] 2Y..YM35 O/S 0.50 |
13013-71033 |
from US $161.01 |
||
|
13011
|
13011
13013-71032 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YM31,35 O/S 0.50 |
13013-71032 |
US $216.94 |
||
| replacement | |||||
|
13011
|
13011
13013-71033 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YM31,35 O/S 0.50 |
13013-71033 |
from US $161.01 |
||
|
13011
|
13011
13013-71033 Ring Set, PistonPISTON [12.1992 - 04.1998] 2Y..YM3# O/S 0.50 |
13013-71033 |
from US $161.01 |
||
|
13011
|
13011
13014-71031 Ring Set, Piston[05.1989 - 10.1990] 2Y..YM35 O/S 0.75 |
13014-71031 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13014-71033 Ring Set, PistonPISTON [05.1989 - 10.1990] 2Y..YM35 O/S 0.75 |
13014-71033 |
US $218.40 |
||
|
13011
|
13011
13014-71032 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YM31,35 O/S 0.75 |
13014-71032 |
US $216.94 |
||
| replacement | |||||
|
13011
|
13011
13014-71033 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YM31,35 O/S 0.75 |
13014-71033 |
US $218.40 |
||
|
13011
|
13011
13014-71033 Ring Set, PistonPISTON [12.1992 - 04.1998] 2Y..YM3# O/S 0.75 |
13014-71033 |
US $218.40 |
||
|
13011
|
13011
13015-71031 Ring Set, Piston[05.1989 - 10.1990] 2Y..YM35 O/S 1.00 |
13015-71031 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13015-71033 Ring Set, PistonPISTON [05.1989 - 10.1990] 2Y..YM35 O/S 1.00 |
13015-71033 |
US $218.40 |
||
|
13011
|
13011
13015-71032
Ring Set, Piston
[10.1990 - 12.1992] 2Y..YM31,35 O/S 1.00 |
13015-71032 |
— | ||
| replacement | |||||
|
13011
|
13011
13015-71033 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YM31,35 O/S 1.00 |
13015-71033 |
US $218.40 |
||
|
13011
|
13011
13015-71033 Ring Set, PistonPISTON [12.1992 - 04.1998] 2Y..YM3# O/S 1.00 |
13015-71033 |
US $218.40 |
||
|
13041
|
13041
13041-71011-06
Bearing, Connecting Rod
[12.1995 - 04.1998] 2Y..YM3# MARK 6 |
13041-71011-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-06 Bearing, Connecting Rod[12.1995 - 04.1998] 2Y..YM3# MARK 6 |
13041-73010-06 |
US $37.22 |
||
|
13041
|
13041
13041-71011-07
Bearing, Connecting Rod
[12.1995 - 04.1998] 2Y..YM3# MARK 7 |
13041-71011-07 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-07 Bearing, Connecting Rod[12.1995 - 04.1998] 2Y..YM3# MARK 7 |
13041-73010-07 |
US $34.42 |
||
|
13041
|
13041
13041-71011-08
Bearing, Connecting Rod
[12.1995 - 04.1998] 2Y..YM3# MARK 8 |
13041-71011-08 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-08 Bearing, Connecting Rod[12.1995 - 04.1998] 2Y..YM3# MARK 8 |
13041-73010-08 |
US $35.38 |
||
|
13101
|
13101
13101-72010-01 Piston Sub-Assy, W/pin[08.1988 - 04.1998] 2Y#..YM3# STD,MARK1 |
13101-72010-01 |
US $88.82 |
||
|
13101
|
13101
13101-72010-02 Piston Sub-Assy, W/pin[08.1988 - 04.1998] 2Y#..YM3# STD,MARK2 |
13101-72010-02 |
US $88.82 |
||
|
13101
|
13101
13101-72010-03
Piston Sub-Assy, W/pin
[08.1988 - 04.1998] 2Y#..YM3# STD,MARK3 |
13101-72010-03 |
— | ||
|
13101
|
13101
13103-72010 Piston Sub-Assy, W/pin[08.1988 - 04.1998] 2Y#..YM3# O/S 0.50 |
13103-72010 |
US $94.64 |
||
|
13101
|
13101
13104-72010 Piston Sub-Assy, W/pin[08.1988 - 04.1998] 2Y#..YM3# O/S 0.75 |
13104-72010 |
US $94.64 |
||
|
13101
|
13101
13105-72010 Piston Sub-Assy, W/pin[08.1988 - 04.1998] 2Y#..YM3# O/S 1.00 |
13105-72010 |
US $94.64 |
||
|
13201
|
13201
13201-71011
Rod Sub-Assy, Connecting
[08.1988 - 04.1998] 2Y#..YM3# |
13201-71011 |
— | ||
|
13202
|
13202
13204-71011
Bearing Set, Connecting Rod
[08.1988 - 04.1998] 2Y#..YM3# U/S 0.25 |
13204-71011 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-73010 Bearing Set, Connecting Rod (0.25)[08.1988 - 04.1998] 2Y#..YM3# U/S 0.25 |
13204-73010 |
US $160.74 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[08.1988 - 04.1998] 2Y#..YM3# |
13265-29025 |
US $12.16 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[08.1988 - 04.1998] 2Y#..YM3# |
90170-09001 |
US $2.72 |
||
|
13405
|
13405
13405-71011 Flywheel Sub-Assy[03.1989 - 04.1998] 2Y#..YM3#..5F |
13405-71011 |
US $374.19 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[08.1988 - 04.1998] 2C..CM36 L=23,OD=8; 2Y#..YM3#..5F L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[08.1988 - 04.1998] 2Y#..YM3#..5F |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-72010
Crankshaft
[08.1988 - 04.1998] 2Y#..YM3# |
13411-72010 |
— | ||
| replacement | |||||
|
13411
|
13411
13411-72900 Crankshaft[08.1988 - 04.1998] 2Y#..YM3# |
13411-72900 |
US $1,320.59 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[08.1988 - 04.1998] 2Y#..YM3#..5F |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13408-73010 Pulley, Crankshaft[08.1988 - 04.1998] 2Y#..YM3# |
13408-73010 |
US $230.40 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[09.1992 - 04.1998] 5K..KM3#; 2Y..YM3# |
90280-05005 |
from US $0.98 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[08.1988 - 04.1992] 5K#..KM3#; 2Y#..YM3# |
90280-05010 |
from US $1.89 |
||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[01.1989 - 04.1998] 2Y#..YM3# |
90105-14069 |
US $14 |
||
|
13477
|
13477
88451-20110
Pulley, Crankshaft, No.2
[08.1988 - 04.1998] 2Y#..YM35 |
88451-20110 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[08.1988 - 04.1998] 2Y#..YM3# |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[09.1992 - 04.1998] 5K..KM3#; 2Y..YM3# |
90280-05005 |
from US $0.98 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1988 - 04.1992] 5K#..KM3#; 2Y#..YM3# |
90280-05010 |
from US $1.89 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
