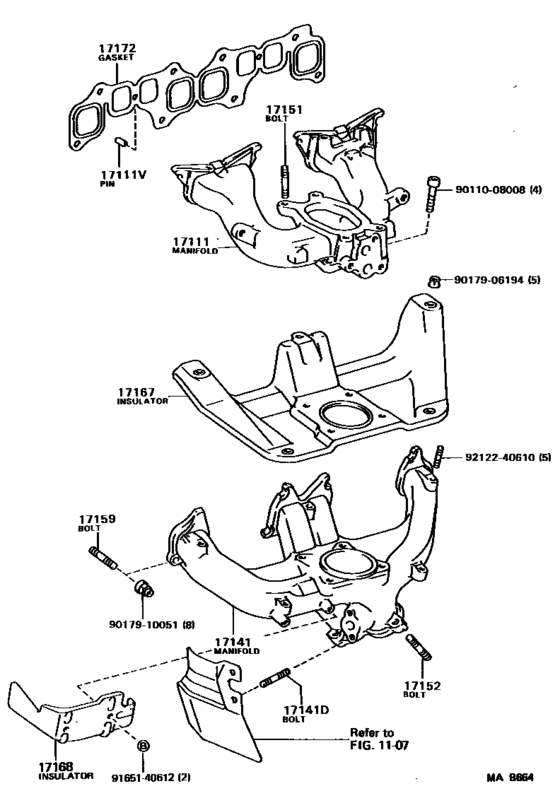

Manifold ([08.1988 - ] (8808- )2Y#) Diagram Toyota LITEACE
- Year
- 1989 - 1998
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 05.1989
- To
- 04.1998
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-71020
Manifold, Intake
[05.1989 - 04.1998] 2Y..YM31,35 |
17111-71020 |
— | ||
|
17111V
|
17111V
90250-08120 Pin, Straight, No.1[08.1988 - 04.1998] 2Y#..YM3# |
90250-08120 |
from US $1.07 |
||
|
17141
|
17141
17141-71020 Manifold, Exhaust[05.1989 - 04.1998] 2Y..YM31,35 |
17141-71020 |
US $324.98 |
||
|
17151
|
17151
92122-40835 Bolt, Stud(For Manifold To Carburetor)[08.1988 - 04.1998] 2Y#..YM3# |
92122-40835 |
US $1.31 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[08.1988 - 09.1989] 2Y#..YM3# |
90116-10058 |
from US $2.44 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[01.1990 - 04.1998] 2Y#..YM3# |
90116-10146 |
from US $1.91 |
||
|
17152
|
17152
90116-10148 Bolt, Stud(For Turbocharger)[09.1989 - 01.1990] 2Y#..YM3# |
90116-10148 |
US $1.31 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.1988 - 04.1998] 2Y#..YM3# |
90116-10063 |
from US $1.17 |
||
|
17167
|
17167
17167-71020 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 04.1998] 2Y#..YM3# |
17167-71020 |
US $101.34 |
||
|
17168
|
17168
12521-72010 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 04.1998] 2Y#..YM3# |
12521-72010 |
US $54.60 |
||
|
17172
|
17172
17172-71011 Gasket, Manifold To Cylinder Head[08.1988 - 04.1998] 2Y#..YM3# |
17172-71011 |
US $48.94 |
||
|
9011008008
|
9011008008
90110-08008 BOLT |
90110-08008 |
US $2.77 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9017910051
|
9017910051
90179-10051 NUT |
90179-10051 |
US $4.16 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9212240610
|
9212240610
92122-40610 Bolt, Stud(For Manifold To Carburetor) |
92122-40610 |
US $2.08 |
||
