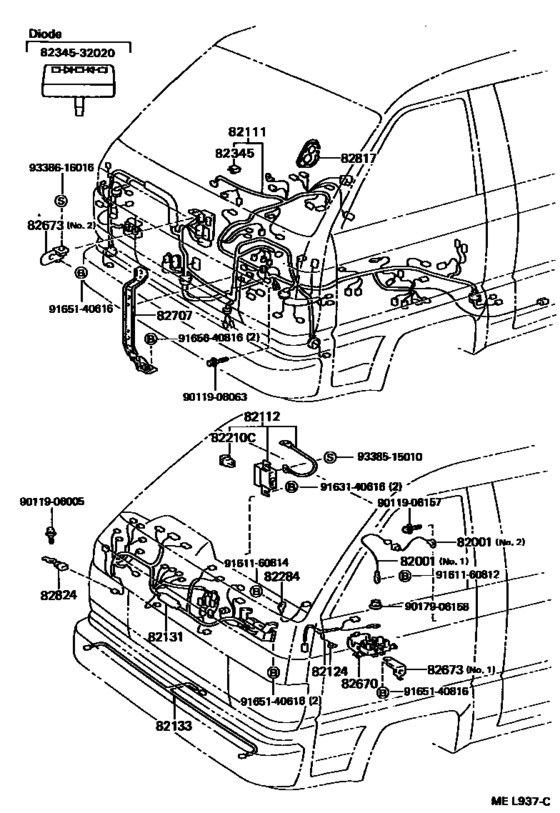

Wiring & Clamp ([08.1988 - ] (8808- )YM3#) Diagram Toyota LITEACE
- Year
- 1989 - 1998
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 05.1989
- To
- 04.1998
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07275 Cable, Bond, No.1[08.1988 - 04.1998] YM30,35;CM36..5H;CM36..ARL;CM36..SRF NO.2 |
90980-07275 |
US $8.15 |
||
| replacement | |||||
|
82001
|
82001
90980-07206 Cable, Bond, No.1[08.1988 - 04.1998] YM30,35;CM36..5H;CM36..ARL;CM36..SRF NO.2 |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07276 Cable, Bond, No.1[08.1988 - 04.1998] YM30,35;CM36..5H;CM36..ARL;CM36..SRF NO.1 |
90980-07276 |
US $7.13 |
||
| replacement | |||||
|
82001
|
82001
90980-07228 Cable, Bond, No.1[08.1988 - 04.1998] YM30,35;CM36..5H;CM36..ARL;CM36..SRF NO.1 |
90980-07228 |
US $7.16 |
||
|
82111
|
82111
82115-95769 Wire, Engine Room MainENGINE ROOM MAIN [05.1989 - 04.1998] YM35..GEN |
82115-95769 |
US $1,688.96 |
||
|
82112
|
82112
82112-95712 Wire, Engine Room, No.2[08.1988 - 04.1998] YM3# |
82112-95712 |
US $49.36 |
||
|
82124
|
82124
82124-95718 Wire, Engine, No.4[08.1988 - 04.1998] YM30,35 |
82124-95718 |
US $49.36 |
||
|
82131
|
82131
82131-95T60 Wire, CowlCOWL [05.1989 - 04.1998] YM35..GEN |
82131-95T60 |
US $784.78 |
||
|
82133
|
82133
82133-95702 Wire, Cowl, No.3[08.1991 - 04.1998] YM35..GEN;KM36..SRF..05S; CM36,KM36,YM31..MRF..5F..GEN |
82133-95702 |
US $99.01 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[08.1988 - 04.1998] CM36,KM36,YM3#..RHD 30A,TERMINAL:FEMALE |
90982-08188 |
US $11.36 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[08.1988 - 04.1998] CM36,KM3#,YM3# 40A,TERMINAL:FEMALE |
90982-08189 |
US $7.04 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[12.1989 - 04.1998] CM36,YM3# 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08253
Fusible Link
[12.1988 - 12.1989] CM36,YM3# 80A,TERMINAL:MALE |
90982-08253 |
— | ||
| replacement | |||||
|
82210C
|
82210C
90982-08203 Fusible Link[12.1988 - 12.1989] CM36,YM3# 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82284
|
82284
82284-95700 Wire, Earth[08.1988 - 04.1998] YM3# |
82284-95700 |
US $4.22 |
||
|
82345
|
82345
82345-32020 Diode[08.1991 - 04.1998] YM35..GEN;KM36..SRF..05S; CM36,KM36,YM31..MRF..5F..GEN |
82345-32020 |
US $13.45 |
||
|
82670
|
82670
82670-95A00 Block Assy, Junction, No.1[08.1988 - 04.1998] YM3# |
82670-95A00 |
US $22.57 |
||
|
82673
|
82673
82673-95705 Bracket, Junction Block[08.1988 - 04.1998] YM3# NO.1 |
82673-95705 |
US $4.08 |
||
|
82707
|
82707
82701-95700 Support Sub-Assy, Wiring Harness[08.1988 - 04.1998] CM36,KM36,YM3#..RHD |
82701-95700 |
US $31.89 |
||
|
82817
|
82817
82817-95703 Protector, Wiring Harness, No.1[08.1988 - 08.1991] CM36,KM3#,YM3# |
82817-95703 |
US $9.90 |
||
|
82824
|
82824
82824-12100 Connector, Wiring Harness[08.1988 - 08.1991] CM36,KM36,YM3#..RHD |
82824-12100 |
US $8.15 |
||
|
8234532020
|
8234532020
82345-32020 Diode |
82345-32020 |
US $13.45 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906157
|
9011906157
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $2.72 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
|
9338616016
|
9338616016
93386-16016 New Genuine Part |
93386-16016 |
US $0.58 |
||
