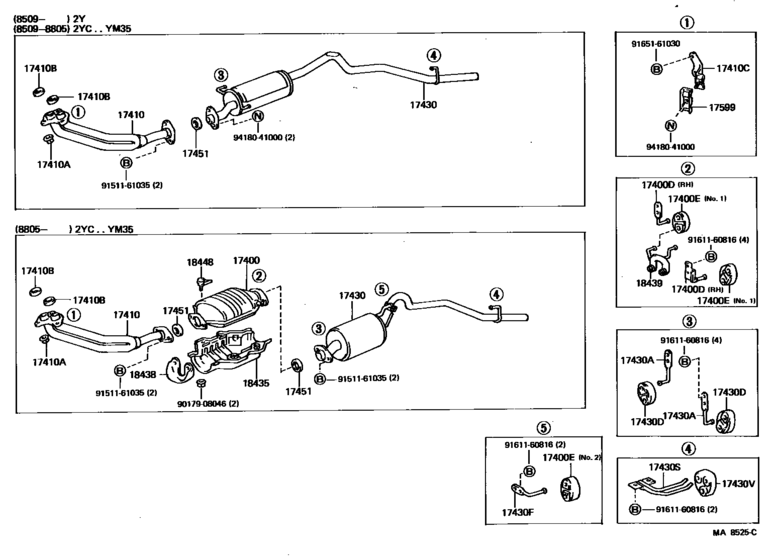

Exhaust Pipe ([09.1985 - ] (8509- )2Y#,3YC) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2YC
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-72041 Converter Assy, W/catalystW/CATALYST [05.1988 - 08.1988] 2YC,3YC..YM30,35,40 |
18450-72041 |
US $1,330.78 |
||
|
17400D
|
17400D
17587-13050 Bracket, Catalytic Converter SupportCATALYTIC CONVERTER SUPPORT [05.1988 - 08.1988] 5KC,2YC..KM36,YM35 RH |
17587-13050 |
US $20.09 |
||
|
17400D
|
17400D
17588-13030 Bracket, Catalytic Converter Support[05.1988 - 08.1988] 5KC,2YC..KM36,YM35 LH |
17588-13030 |
US $10.63 |
||
|
17400E
|
17400E
17565-13030 Ring, Catalytic Converter[05.1988 - 08.1988] 5KC,2YC..KM36,YM35 NO.1 |
17565-13030 |
from US $6.51 |
||
|
17400E
|
17400E
17565-13040 Ring, Catalytic Converter[05.1988 - 08.1988] 5KC,2YC..KM36,YM35 NO.2 |
17565-13040 |
US $10.77 |
||
|
17410
|
17410
17410-72080 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [09.1985 - 05.1988] 2YC..YM35;2Y..YM30,31 |
17410-72080 |
US $94.64 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[09.1985 - 08.1988] 1C,2C,5K#,2Y#,3YC..CM3#,KM3#,YM3#,4# |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[09.1985 - 08.1988] 1C,2C,5K#,2Y#,3YC..CM3#,KM3#,YM3#,4# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06001
Gasket(For Manifold Extension)
[09.1985 - 08.1988] 2Y#,3YC..YM3#,4# |
90917-06001 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06038 Gasket, Exhaust Pipe[09.1985 - 08.1988] 2Y#,3YC..YM3#,4# |
90917-06038 |
from US $2.34 |
||
|
17410C
|
17410C
17571-72040 Bracket, Exhaust Pipe Front (For Front)[09.1985 - 05.1988] 2Y#,3YC..YM3#,4# |
17571-72040 |
US $22.71 |
||
|
17410C
|
17410C
17571-72100 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [05.1988 - 08.1988] 2Y#,3YC..YM30,35,40 |
17571-72100 |
US $27.08 |
||
|
17430
|
17430
17430-13390 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.1988 - 08.1988] 5KC,2YC..KM36,YM35 |
17430-13390 |
US $358.18 |
||
|
17430
|
17430
17430-72140 Pipe Assy, Exhaust, TailEXHAUST, TAIL [09.1985 - 10.1987] 2YC..YM35;2Y..YM30,31 |
17430-72140 |
US $358.18 |
||
|
17430
|
17430
17430-72220 Pipe Assy, Exhaust, TailEXHAUST, TAIL [10.1987 - 05.1988] 2YC..YM35 |
17430-72220 |
US $358.18 |
||
|
17430A
|
17430A
17562-13060 Bracket, Exhaust Tail Pipe(For Front)[09.1985 - 09.1987] 2YC..YM35;1C,5K#,2Y..CM35,KM3#,YM30,31 |
17562-13060 |
US $10.92 |
||
|
17430D
|
17430D
17563-35020 Bolt Or Ring, Exhaust Tail Pipe (For Front)[09.1985 - 09.1987] 2YC..YM35;1C,5K#,2Y..CM35,KM3#,YM30,31 |
17563-35020 |
US $13.28 |
||
|
17430S
|
17430S
17575-13060 Bracket, Exhaust Tail Pipe (For Rear)[09.1985 - 09.1987] 2YC..YM35;1C,5K#,2Y..CM35,KM3#,YM30,31 |
17575-13060 |
US $17.18 |
||
|
17430V
|
17430V
17565-13030 Ring, Catalytic Converter[09.1985 - 04.1987] 2YC..YM35;1C,5K#,2Y..CM35,KM3#,YM30,31 |
17565-13030 |
from US $6.51 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[09.1985 - 05.1988] 2YC..YM35;1C,2C,5K#,2Y..CM3#,KM3#,YM30,31 |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[09.1985 - 05.1988] 2YC..YM35;1C,2C,5K#,2Y..CM3#,KM3#,YM30,31 |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06020
Gasket, Exhaust Pipe, Center
[05.1988 - 08.1988] 5KC..KM36 RR; 2YC,3YC..YM30,35,40 RR |
90917-06020 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06044 Gasket, Exhaust Pipe, Center[05.1988 - 08.1988] 5KC..KM36 RR; 2YC,3YC..YM30,35,40 RR |
90917-06044 |
from US $6.55 |
||
|
17451
|
17451
90917-06023
Gasket, Exhaust Pipe
[05.1988 - 08.1988] 2YC,3YC..YM30,35,40 FR |
90917-06023 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06041 Gasket, Exhaust Pipe[05.1988 - 08.1988] 2YC,3YC..YM30,35,40 FR |
90917-06041 |
from US $6.20 |
||
|
17599
|
17599
17599-71010 Clamp No.1, Exhaust Pipe Front (For Front)[09.1985 - 08.1988] 2Y#,3YC..YM3#,4# |
17599-71010 |
US $12.52 |
||
|
18435
|
18435
18407-28011 Protector, Catalytic Converter[05.1988 - 08.1988] 2YC,3YC..YM30,35,40 |
18407-28011 |
US $46.88 |
||
|
18438
|
18438
17582-72010 Bracket, Catalytic Converter Support, Upper[05.1988 - 08.1988] 2YC,3YC..YM30,35,40 |
17582-72010 |
US $26.35 |
||
|
18439
|
18439
17503-72100 Bracket, Convertor Protector, RearCONVERTOR PROTECTOR, REAR [05.1988 - 08.1988] 5KC,2YC..KM36,YM35 |
17503-72100 |
US $38 |
||
|
18448
|
18448
18448-43010 Bracket, Converter Protector, Center[05.1988 - 08.1988] 2YC,3YC..YM30,35,40 |
18448-43010 |
US $7.68 |
||
|
9017908046
|
9017908046
90179-08046 New Genuine Part |
90179-08046 |
US $3.20 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $1.05 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165161030
|
9165161030
91651-61030 Bolt (For Transfer Case) |
91651-61030 |
from US $1.56 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
