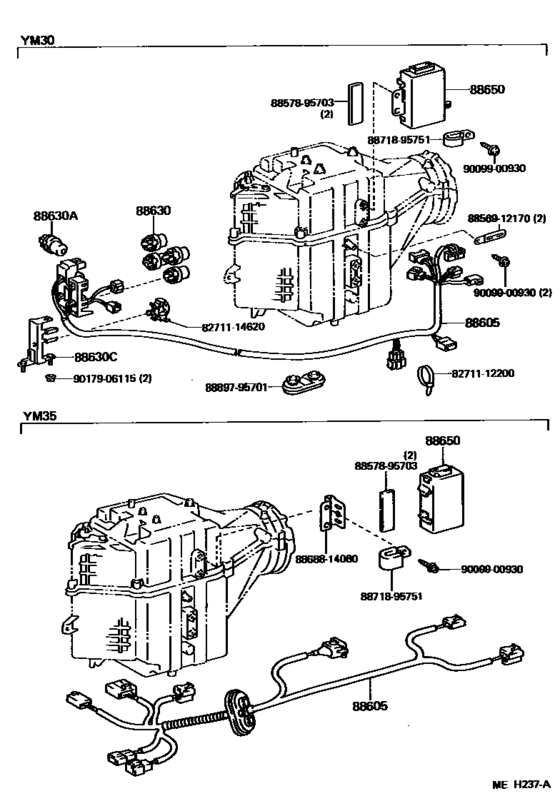

Heating & Air Conditioning - Cooler Unit ([09.1985 - ] (8509- )YM30,35) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2YC
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88605
|
88605
88605-95728
Harness Sub-Assy, Cooler Wiring, No.1
[09.1985 - 08.1988] YM35; KM36..RHD..4H |
88605-95728 |
— | ||
|
88650
|
88650
88650-87101
Amplifier Assy, Cooler Stabilizer
[09.1985 - 08.1988] KM36,YM30,35,41..ARL |
88650-87101 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8271114620
|
8271114620
82711-14620 Bracket, Relay, No.3 |
82711-14620 |
US $5.24 |
||
|
8856912170
|
8856912170
88569-12170
Clamp (for Cooler Relay)
|
88569-12170 |
— | ||
|
8857895703
|
8857895703
88578-95703
Packing, Cooler Stabilizer Amplifier
|
88578-95703 |
— | ||
|
8868814080
|
8868814080
88688-14080
Bracket, Cooler Stabilizer Amplifier
|
88688-14080 |
— | ||
|
8871895751
|
8871895751
88718-95751
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95751 |
— | ||
|
8889795701
|
8889795701
88897-95701
Valve, Cooler Magnet
|
88897-95701 |
— | ||
|
9009900930
|
9009900930
90099-00930
New Genuine Part
|
90099-00930 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
