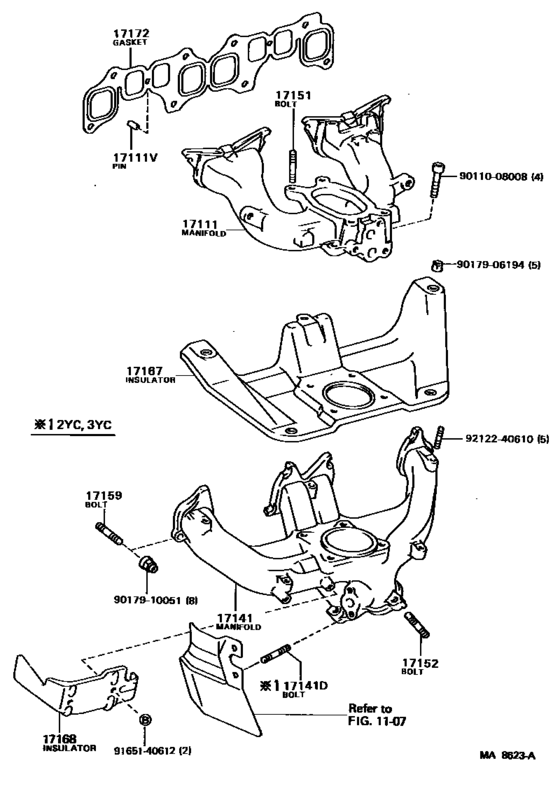

Manifold ([09.1985 - ] (8509- )2Y#,3YC) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2YC
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-71010 Manifold, Intake[09.1985 - 08.1988] 2YC,3YC..YM30,35,4# |
17111-71010 |
US $573.66 |
||
|
17111V
|
17111V
90250-08120 Pin, Straight, No.1[09.1985 - 08.1988] 2Y#,3YC..YM3#,4# |
90250-08120 |
from US $1.07 |
||
|
17141
|
17141
17141-71010 Manifold, Exhaust[05.1988 - 08.1988] 2YC,3YC..YM30,35,40 |
17141-71010 |
US $317.41 |
||
|
17141
|
17141
17141-71020 Manifold, Exhaust[09.1985 - 05.1988] 2YC..YM35;2Y..YM30,31 |
17141-71020 |
US $324.98 |
||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[05.1988 - 08.1988] 2YC,3YC..YM30,35,40 L=28,S=8&17 |
90116-08128 |
US $4.16 |
||
|
17151
|
17151
92122-40835 Bolt, Stud(For Manifold To Carburetor)[09.1985 - 08.1988] 2Y#,3YC..YM3#,4# |
92122-40835 |
US $1.31 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[09.1985 - 08.1988] 1C,2C..CM3#; 2Y#,3YC..YM3#,4# |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[09.1985 - 08.1988] 2Y#,3YC..YM3#,4# |
90116-10063 |
from US $1.17 |
||
|
17167
|
17167
17167-71020 Insulator, Exhaust Manifold Heat, No.1[09.1985 - 08.1988] 2Y#,3YC..YM3#,4# |
17167-71020 |
US $101.34 |
||
|
17168
|
17168
12521-72010 Insulator, Exhaust Manifold Heat, No.2[09.1985 - 08.1988] 2Y#,3YC..YM30,35,4# |
12521-72010 |
US $54.60 |
||
|
17172
|
17172
17172-71011 Gasket, Manifold To Cylinder Head[09.1985 - 08.1988] 2Y#..YM3# |
17172-71011 |
US $48.94 |
||
|
9011008008
|
9011008008
90110-08008 BOLT |
90110-08008 |
US $2.77 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9017910051
|
9017910051
90179-10051 NUT |
90179-10051 |
US $4.16 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9212240610
|
9212240610
92122-40610 Bolt, Stud(For Manifold To Carburetor) |
92122-40610 |
US $2.08 |
||
