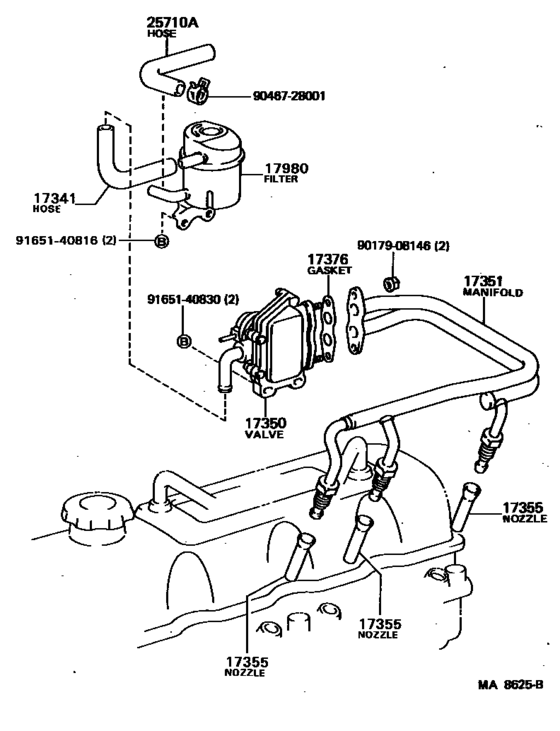

Manifold Air Injection System ([09.1985 - 05.1988] (8509-8805)2YC..YM35) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2YC
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-71010 Hose, No.1(For Air Injection System)[09.1985 - 08.1988] 2YC,3YC..YM30,35,4# |
17341-71010 |
US $22.13 |
||
|
17350
|
17350
17350-73010 Valve Assy, Reed[09.1985 - 05.1988] 2YC..YM35 |
17350-73010 |
US $192.19 |
||
|
17351
|
17351
17306-71010 Manifold, Air Injection[05.1988 - 08.1988] 2YC,3YC..YM30,35,40 |
17306-71010 |
US $138.32 |
||
|
17351
|
17351
17306-73011
Manifold, Air Injection
[09.1985 - 05.1988] 2YC..YM35 |
17306-73011 |
— | ||
|
17355
|
17355
17355-71010 Nozzle, Air Injection[09.1985 - 08.1988] 2YC,3YC..YM30,35,4# |
17355-71010 |
US $12.38 |
||
|
17376
|
17376
17376-71010
Gasket, Air Tube, No.1
[09.1985 - 08.1988] 5KC..KM36; 2YC,3YC..YM30,35,4# |
17376-71010 |
— | ||
| replacement | |||||
|
17376
|
17376
17376-71011 Gasket, Air Tube, No.1[09.1985 - 08.1988] 5KC..KM36; 2YC,3YC..YM30,35,4# |
17376-71011 |
US $4.37 |
||
|
17980
|
17980
17980-71011 Filter Assy, Air Suction[09.1985 - 08.1986] 2YC,3YC..YM30,35,4# |
17980-71011 |
US $292.66 |
||
| replacements | |||||
|
17980
|
17980
17342-72011 Hose, No.2(For Air Injection System)[09.1985 - 08.1986] 2YC,3YC..YM30,35,4# |
17342-72011 |
US $14.41 |
||
|
17980
|
17980
17980-71012 Filter Assy, Air Suction[09.1985 - 08.1986] 2YC,3YC..YM30,35,4# |
17980-71012 |
US $263.54 |
||
|
17980
|
17980
17980-71012 Filter Assy, Air Suction[08.1986 - 08.1988] 2YC,3YC..YM30,35,4# |
17980-71012 |
US $263.54 |
||
|
25710A
|
25710A
17342-72010 Hose(For Air By-Pass Valve To Air Switching Valve)[09.1985 - 08.1986] 2YC,3YC..YM30,35,4# |
17342-72010 |
US $22.86 |
||
|
25710A
|
25710A
17342-72011 Hose, No.2(For Air Injection System)[08.1986 - 08.1988] 2YC,3YC..YM30,35,4# |
17342-72011 |
US $14.41 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046728001
|
9046728001
90467-28001
Clamp(For Check Valve)
|
90467-28001 |
— | ||
| replacement | |||||
|
9046728001
|
9046728001
90467-28007 Clip Or Clamp(For Ventilation Hose) |
90467-28007 |
from US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
