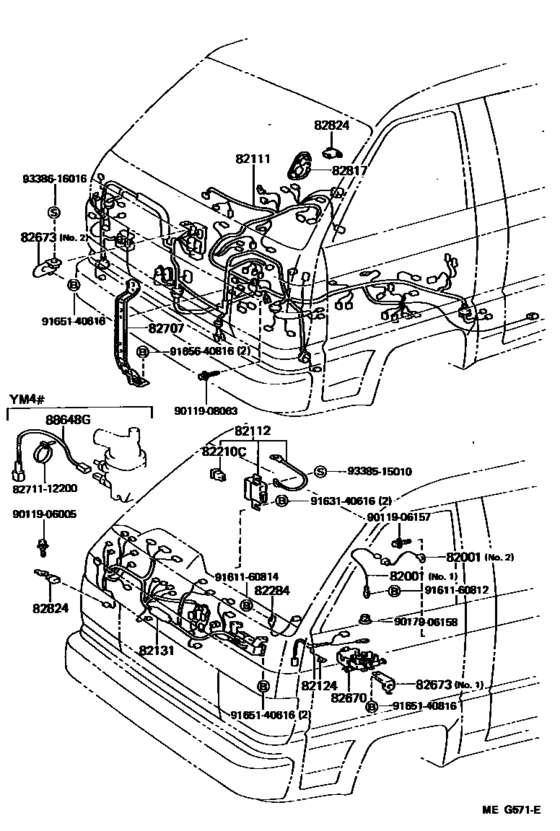

Wiring & Clamp ([09.1985 - ] (8509- )YM3#,4#) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2YC
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[09.1985 - 02.1986] CM35,YM3#,4# NO.2 |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07228 Cable, Bond, No.1[09.1985 - 02.1986] CM35,YM3#,4# NO.1 |
90980-07228 |
US $7.16 |
||
|
82001
|
82001
90980-07275 Cable, Bond, No.1[02.1986 - 08.1988] CM3#,YM30,35,4# NO.2 |
90980-07275 |
US $8.15 |
||
| replacement | |||||
|
82001
|
82001
90980-07206 Cable, Bond, No.1[02.1986 - 08.1988] CM3#,YM30,35,4# NO.2 |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07276 Cable, Bond, No.1[02.1986 - 08.1988] CM3#,YM30,35,4# NO.1 |
90980-07276 |
US $7.13 |
||
| replacement | |||||
|
82001
|
82001
90980-07228 Cable, Bond, No.1[02.1986 - 08.1988] CM3#,YM30,35,4# NO.1 |
90980-07228 |
US $7.16 |
||
|
82111
|
82111
82111-95779 Wire, Engine Room MainENGINE ROOM MAIN [09.1985 - 05.1988] YM35 |
82111-95779 |
US $1,330.78 |
||
|
82111
|
82111
82111-95T80 Wire, Engine Room MainENGINE ROOM MAIN [05.1988 - 08.1988] YM35 |
82111-95T80 |
US $1,311.86 |
||
|
82112
|
82112
82112-95701 Wire, Engine Room, No.2[09.1985 - 08.1988] YM3#,4# |
82112-95701 |
US $471.74 |
||
|
82124
|
82124
82124-95705 Wire, Engine, No.4[09.1985 - 07.1986] YM30,35,4#..ARL |
82124-95705 |
US $49.36 |
||
| replacement | |||||
|
82124
|
82124
82124-95716
Wire, Engine, No.4
[09.1985 - 07.1986] YM30,35,4#..ARL |
82124-95716 |
— | ||
|
82124
|
82124
82124-95716
Wire, Engine, No.4
[07.1986 - 09.1986] YM30,35,4#..ARL |
82124-95716 |
— | ||
|
82124
|
82124
82124-95718 Wire, Engine, No.4[09.1986 - 08.1988] YM30,35,4#..ARL |
82124-95718 |
US $49.36 |
||
|
82131
|
82131
82131-95735
Wire, Cowl
[09.1985 - 08.1986] CM35..ARL; YM35..4FC |
82131-95735 |
— | ||
|
82131
|
82131
82131-95G04 Wire, CowlCOWL [08.1986 - 08.1988] CM35..ARL; YM35..4FC |
82131-95G04 |
US $388.75 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD 30A,TERMINAL:FEMALE,30A |
90982-08188 |
from US $5.13 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# 40A,TERMINAL:FEMALE,40A |
90982-08189 |
US $7.04 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[09.1985 - 08.1988] CM3#,YM3#,4# 80A,TERMINAL:MALE,80A |
90982-08203 |
from US $7.36 |
||
|
82284
|
82284
82284-95700 Wire, Earth[09.1985 - 08.1988] YM30,35,4#..ARL |
82284-95700 |
US $4.22 |
||
|
82670
|
82670
82670-95A00 Block Assy, Junction, No.1[09.1985 - 08.1988] YM3#,4# |
82670-95A00 |
US $22.57 |
||
|
82673
|
82673
82673-95702 Bracket, Junction Block[09.1985 - 08.1988] YM30,35..4FC NO.2 |
82673-95702 |
US $4.37 |
||
|
82673
|
82673
82673-95703 Bracket, Junction Block[09.1985 - 08.1988] YM3#,4# NO.1 |
82673-95703 |
US $4.37 |
||
|
82707
|
82707
82701-95700 Support Sub-Assy, Wiring Harness[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD |
82701-95700 |
US $31.89 |
||
|
82817
|
82817
82817-95703 Protector, Wiring Harness, No.1[09.1985 - 08.1988] CM3#,YM3#,4# |
82817-95703 |
US $9.90 |
||
|
82824
|
82824
82824-12100 Connector, Wiring Harness[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD COWL WIRE |
82824-12100 |
US $8.15 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906157
|
9011906157
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $2.72 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
|
9338616016
|
9338616016
93386-16016 New Genuine Part |
93386-16016 |
US $0.58 |
||
