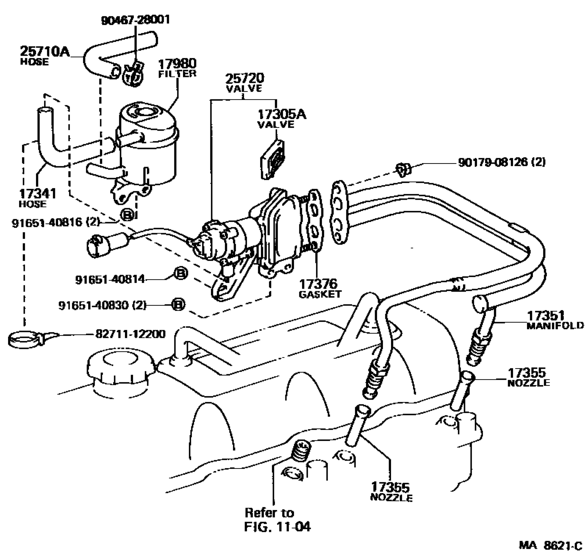

Manifold Air Injection System ([08.1988 - ] (8808- )2YC) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- General
- Frame
- YM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2YC
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17305A
|
17305A
17305-28010 Valve Sub-Assy, Reed[08.1988 - 01.1992] 2YC..YM30,35 NIPPONDENSO |
17305-28010 |
US $38.15 |
||
|
17305A
|
17305A
17305-71010 Valve Sub-Assy, Reed[08.1988 - 01.1992] 2YC..YM30,35 NOK |
17305-71010 |
US $42.66 |
||
|
17341
|
17341
17341-71010 Hose, No.1(For Air Injection System)[08.1988 - 09.1992] 2YC..YM30,35 |
17341-71010 |
US $22.13 |
||
|
17351
|
17351
17306-71010 Manifold, Air Injection[08.1988 - 01.1992] 2YC..YM30,35 |
17306-71010 |
US $138.32 |
||
|
17355
|
17355
17355-71010 Nozzle, Air Injection[08.1988 - 09.1992] 2YC..YM30,35 |
17355-71010 |
US $12.38 |
||
|
17376
|
17376
17376-71010
Gasket, Air Tube, No.1
[08.1988 - 12.1989] 5KC..KM36; 2YC..YM3# |
17376-71010 |
— | ||
| replacement | |||||
|
17376
|
17376
17376-71011 Gasket, Air Tube, No.1[08.1988 - 12.1989] 5KC..KM36; 2YC..YM3# |
17376-71011 |
US $4.37 |
||
|
17376
|
17376
17376-71011 Gasket, Air Tube, No.1[12.1989 - 01.1992] 5KC..KM36; 2YC..YM30,35 |
17376-71011 |
US $4.37 |
||
|
17980
|
17980
17980-71012 Filter Assy, Air Suction[08.1988 - 09.1992] 2YC..YM30,35 |
17980-71012 |
US $263.54 |
||
|
25710A
|
25710A
17342-72011 Hose, No.2(For Air Injection System)[08.1988 - 09.1992] 2YC..YM30,35 |
17342-72011 |
US $14.41 |
||
|
25720
|
25720
25720-71010 Valve Assy, Electric Air Control[08.1988 - 01.1992] 2YC..YM30,35 |
25720-71010 |
US $559.10 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9017908126
|
9017908126
90179-08126 Nut |
90179-08126 |
US $2.62 |
||
|
9046728001
|
9046728001
90467-28001
Clamp(For Check Valve)
|
90467-28001 |
— | ||
| replacement | |||||
|
9046728001
|
9046728001
90467-28007 Clip Or Clamp(For Ventilation Hose) |
90467-28007 |
from US $3.20 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
