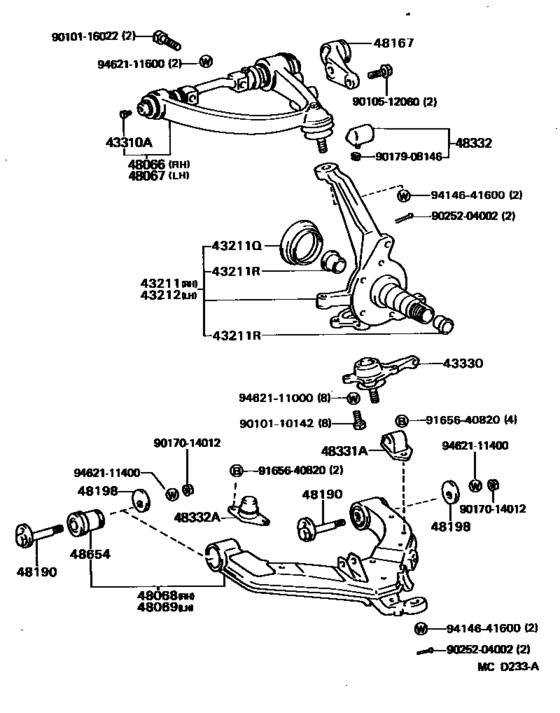

Front Axle Arm & Steering Knuckle ([01.1986 - ] (8601- )YM4#) Diagram Toyota LITEACE
- Year
- 1986 - 1988
- Sales region
- General
- Frame
- YM40
- grade
- DLX
- body
- WG
- Roof
- MRF
- ENGINE
- 3YC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 01.1986
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43201-28010 Knuckle, Steering, Rh[01.1986 - 08.1988] YM4# |
43201-28010 |
US $467.38 |
||
|
43211Q
|
43211Q
90316-60001
Seal, Oil (For Steering Knuckle)
[01.1986 - 10.1987] YM4# |
90316-60001 |
— | ||
| replacements | |||||
|
43211Q
|
43211Q
90304-76005 Seal, Dust(For Front Axle Outer Shaft)[01.1986 - 10.1987] YM4# |
90304-76005 |
from US $16.42 |
||
|
43211Q
|
43211Q
90316-60004 Seal, Oil (For Steering Knuckle)[01.1986 - 10.1987] YM4# |
90316-60004 |
from US $19.15 |
||
|
43211Q
|
43211Q
90316-60002
Seal, Oil (For Steering Knuckle)
[10.1987 - 08.1988] YM40 |
90316-60002 |
— | ||
| replacements | |||||
|
43211Q
|
43211Q
90304-76005 Seal, Dust(For Front Axle Outer Shaft)[10.1987 - 08.1988] YM40 |
90304-76005 |
from US $16.42 |
||
|
43211Q
|
43211Q
90316-60004 Seal, Oil (For Steering Knuckle)[10.1987 - 08.1988] YM40 |
90316-60004 |
from US $19.15 |
||
|
43211R
|
43211R
90381-30001
Bush (For Steering Knuckle)
[01.1986 - 07.1987] YM4# INNER |
90381-30001 |
— | ||
| replacement | |||||
|
43211R
|
43211R
90381-30006 Bush (For Steering Knuckle)[01.1986 - 07.1987] YM4# INNER |
90381-30006 |
from US $15.62 |
||
|
43211R
|
43211R
90381-30003 Bush (For Steering Knuckle)[01.1986 - 08.1988] YM4# OUTER |
90381-30003 |
from US $23.56 |
||
|
43212
|
43212
43202-28010 Knuckle, Steering, Lh[01.1986 - 08.1988] YM4# |
43202-28010 |
US $467.38 |
||
|
43310A
|
43310A
90345-06014 Plug (For Ball Joint)[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
90345-06014 |
from US $1.76 |
||
|
43330
|
43330
43330-29165
Joint Assy, Lower Ball, Front
[01.1986 - 08.1988] YM4# RH |
43330-29165 |
— | ||
| replacement | |||||
|
43330
|
43330
43330-29166 Joint Assy, Lower Ball, Front[01.1986 - 08.1988] YM4# RH |
43330-29166 |
from US $72.16 |
||
|
43330
|
43330
43340-29115 Joint Assy, Lower Ball, Front[01.1986 - 08.1988] YM4# LH |
43340-29115 |
US $74.26 |
||
| replacement | |||||
|
43330
|
43330
43340-29116 Joint Assy, Lower Ball, Front[01.1986 - 08.1988] YM4# LH |
43340-29116 |
US $72.16 |
||
|
48066
|
48066
48066-28030
Arm Sub-Assy, Front Suspension, Upper Rh
[01.1986 - 08.1988] YM4# |
48066-28030 |
— | ||
| replacement | |||||
|
48066
|
48066
48066-28050
Arm Sub-Assy, Front Suspension, Upper Rh
[01.1986 - 08.1988] YM4# |
48066-28050 |
— | ||
|
48067
|
48067
48067-28030
Arm Sub-Assy, Front Suspension, Upper Lh
[01.1986 - 08.1988] YM4# |
48067-28030 |
— | ||
| replacement | |||||
|
48067
|
48067
48067-28050
Arm Sub-Assy, Front Suspension, Upper Lh
[01.1986 - 08.1988] YM4# |
48067-28050 |
— | ||
|
48068
|
48068
48068-28030
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[01.1986 - 01.1988] YM4# |
48068-28030 |
— | ||
|
48068
|
48068
48068-28031 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[01.1988 - 08.1988] YM40 |
48068-28031 |
US $243.15 |
||
|
48069
|
48069
48069-28030
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[01.1986 - 01.1988] YM4# |
48069-28030 |
— | ||
|
48069
|
48069
48069-28031 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[01.1988 - 08.1988] YM40 |
48069-28031 |
US $243.15 |
||
|
48167
|
48167
48106-28020 Arm, Torque[01.1986 - 08.1988] YM4# |
48106-28020 |
US $63.92 |
||
|
48190
|
48190
48190-27010 Cam Assy, Camber Adjust[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
48190-27010 |
US $14.12 |
||
| replacements | |||||
|
48190
|
48190
48190-27020 Cam Assy, Camber Adjust[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
48190-27020 |
from US $14.74 |
||
|
48190
|
48190
90179-14046 Nut[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
90179-14046 |
US $3.84 |
||
|
48198
|
48198
48198-27010 Cam, Camber Adjust, No.2[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
48198-27010 |
from US $5.50 |
||
|
48331A
|
48331A
48331-28020 Bumper, Front Spring, No.1[01.1986 - 08.1988] YM4# |
48331-28020 |
US $13.60 |
||
|
48332
|
48332
48305-30030 Bumper Sub-Assy, Front Spring, No.2[08.1986 - 08.1988] CM3#,KM3#,YM30,35,4# |
48305-30030 |
from US $10.47 |
||
|
48332
|
48332
48305-39015 Bumper, Front Spring, No.1[09.1985 - 08.1986] CM35,KM36,YM3#,4# |
48305-39015 |
US $13.40 |
||
| replacement | |||||
|
48332
|
48332
48305-30030 Bumper Sub-Assy, Front Spring, No.2[09.1985 - 08.1986] CM35,KM36,YM3#,4# |
48305-30030 |
from US $10.47 |
||
|
48332A
|
48332A
48332-28010 Bumper, Front Spring, No.3[01.1986 - 08.1988] YM4# |
48332-28010 |
US $17.76 |
||
| replacement | |||||
|
48332A
|
48332A
48332-27020 Bumper, Front Spring, No.2[01.1986 - 08.1988] YM4# |
48332-27020 |
from US $17.47 |
||
|
48654
|
48654
48061-28020 Bush, Lower Arm[01.1986 - 11.1986] YM4# |
48061-28020 |
US $51.40 |
||
| replacement | |||||
|
48654
|
48654
48061-28021
Bush, Lower Arm
[01.1986 - 11.1986] YM4# |
48061-28021 |
— | ||
|
48654
|
48654
48061-28021
Bush, Lower Arm
[11.1986 - 08.1988] YM4# |
48061-28021 |
— | ||
|
9010110142
|
9010110142
90101-10142
New Genuine Part
|
90101-10142 |
— | ||
| replacement | |||||
|
9010110142
|
9010110142
90119-10832 Bolt |
90119-10832 |
US $2.08 |
||
|
9010116022
|
9010116022
90101-16022 New Genuine Part |
90101-16022 |
US $6.99 |
||
|
9010512060
|
9010512060
90105-12060 Bolt(For Crankshaft Pulley Set) |
90105-12060 |
US $3.20 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9025204002
|
9025204002
90252-04002 PIN |
90252-04002 |
US $0.48 |
||
|
9165640820
|
9165640820
91656-40820
BOLT
|
91656-40820 |
— | ||
| replacement | |||||
|
9165640820
|
9165640820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9414641600
|
9414641600
94146-41600 New Genuine Part |
94146-41600 |
US $3.35 |
||
|
9462111000
|
9462111000
94621-11000 Washer, Spring(For Steering Center Arm) |
94621-11000 |
from US $1.93 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.56 |
||
|
9462111600
|
9462111600
94621-11600 Washer(For Rear Spring U Bolt) |
94621-11600 |
US $5.12 |
||
