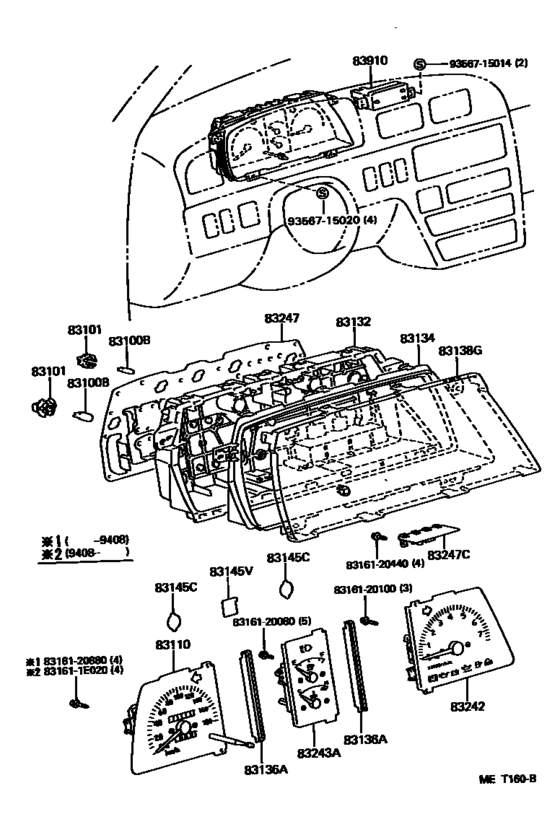

Meter ([01.1992 - ] (9201- )YR21) Diagram Toyota LITEACE
- Year
- 1992 - 2000
- Sales region
- General
- Frame
- YR21
- grade
- DX
- Roof
- MRF
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 07.2000
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24030 Bulb, Combination Meter, No.1[08.1994 - 07.2000] YR22;CR27,KR2#,YR21..LHD 12V 3.4W W(GREEN CAP) |
83109-24030 |
from US $3.14 |
||
|
83100B
|
83100B
83119-28040 Bulb, Combination Meter, No.1[01.1992 - 09.1993] CR27,KR2#,YR21..LHD 14V 3.8W,W(GREEN CAP) |
83119-28040 |
US $1.89 |
||
|
83100B
|
83100B
83119-36080 Bulb, Combination Meter, No.1[01.1992 - 09.1993] CR27,KR27..RHD;YR21,39..05S,08S 12V 2.0W |
83119-36080 |
US $9.28 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[01.1992 - 08.1994] KR27..06S 12V 1.2W W/O SOCKET; YR21 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[01.1992 - 07.2000] YR21 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[01.1992 - 07.2000] YR21 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[01.1992 - 07.2000] YR21 12V 1.4W BULB |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[01.1992 - 08.1994] YR21,39..05S,08S 12V 3.4W BULB,BLACK |
83101-20040 |
from US $1.58 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[01.1992 - 08.1994] CR27,KR2#,YR21..LHD 12V 3.4W BULB,GREEN |
83101-20070 |
US $7.84 |
||
|
83110
|
83110
83110-28270 Speedometer Assy[01.1992 - 07.2000] YR21 |
83110-28270 |
US $353.81 |
||
|
83110
|
83110
83110-28281
Speedometer Assy
[01.1992 - 08.1994] YR21 KM/MILE |
83110-28281 |
— | ||
|
83110
|
83110
83110-28282 Speedometer Assy[08.1994 - 07.2000] YR21 KM/MILE |
83110-28282 |
US $352.35 |
||
|
83132
|
83132
83132-28100 Case, Combination MeterCOMBINATION METER [01.1992 - 07.2000] YR21 |
83132-28100 |
US $58.82 |
||
|
83134
|
83134
83134-28160 Cover, Combination Meter, No.1COMBINATION METER, NO.1 [01.1992 - 07.2000] YR21 |
83134-28160 |
US $47.32 |
||
|
83136A
|
83136A
83136-28020 Cover, Combination MeterCOMBINATION METER [01.1992 - 07.2000] YR21 |
83136-28020 |
US $5.10 |
||
|
83138G
|
83138G
83138-28060 Glass, Combination MeterCOMBINATION METER [01.1992 - 07.2000] YR21 |
83138-28060 |
US $60.57 |
||
|
83145C
|
83145C
83145-89320
Lens, Meter, No.1
[01.1992 - 07.2000] CR27,KR2#,YR21,39 |
83145-89320 |
— | ||
|
83145V
|
83145V
83145-28360 Lens, Meter, No.10METER, NO.10 [01.1992 - 07.2000] YR21 |
83145-28360 |
US $4.22 |
||
|
83242
|
83242
83242-28020 Tachometer Assy, EngineENGINE [01.1992 - 07.2000] YR21 |
83242-28020 |
US $550.37 |
||
|
83243A
|
83243A
83243-28120 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [01.1992 - 07.2000] YR21 |
83243-28120 |
US $155.79 |
||
|
83247
|
83247
83247-28360 Plate, Meter CircuitMETER CIRCUIT [01.1992 - 07.2000] YR21 |
83247-28360 |
US $58.24 |
||
|
83247C
|
83247C
83247-95N29
Plate Sub-Assy, Combination Meter Circuit, No.3
[01.1992 - 07.2000] YR2#,39 |
83247-95N29 |
— | ||
|
83910
|
83910
83910-20420 Clock Assy[01.1992 - 07.2000] CR27,KR2#,YR21..LHD |
83910-20420 |
US $410.59 |
||
|
831611E020
|
831611E020
83161-1E020 Case, Combination Meter Mirror, No.1 |
83161-1E020 |
US $0.86 |
||
|
8316120080
|
8316120080
83161-20080
Case, Combination Meter Mirror, No.1
|
83161-20080 |
— | ||
|
8316120100
|
8316120100
83161-20100 Case, Combination Meter Mirror, No.1 |
83161-20100 |
US $1.69 |
||
|
8316120440
|
8316120440
83161-20440
Case, Combination Meter Mirror, No.1
|
83161-20440 |
— | ||
|
8316120880
|
8316120880
83161-20880
Case, Combination Meter Mirror, No.1
|
83161-20880 |
— | ||
|
9356715014
|
9356715014
93567-15014 Direct |
93567-15014 |
US $1.60 |
||
| replacement | |||||
|
9356715014
|
9356715014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356715020
|
9356715020
93567-15020 New Genuine Part |
93567-15020 |
US $1.16 |
||
