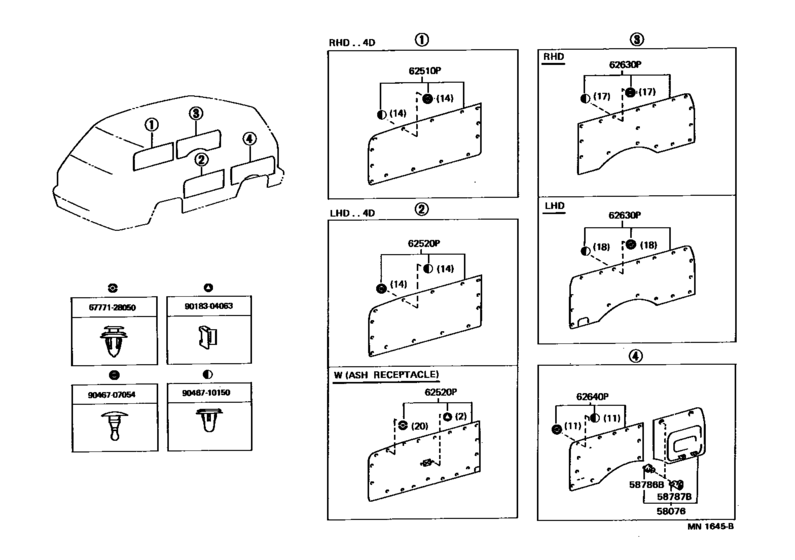

Inside Trim Board ([01.1992 - ] (9201- )CR27,KR27,YR29) Diagram Toyota LITEACE
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- YR29
- grade
- STD
- Roof
- MRF
- ENGINE
- 4YEC
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 01.1995
- No.of Doors
- 4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58076
|
58076
58076-28040 Cover Sub-Assy, Jack Box HoleJACK BOX HOLE [01.1992 - 01.1995] CR27,KR27,YR29 |
58076-28040 |
US $35.82 |
||
|
58786B
|
58786B
58786-28020-B0 Stopper, Jack Box Hole Cover[01.1992 - 04.1992] CR2#,KR2#,YR2# GRAY,TRIM1# |
58786-28020-B0 |
US $5.24 |
||
|
58787B
|
58787B
58787-28030 Packing, Jack Box Hole Cover[01.1992 - 01.1995] CR2#,KR2#,YR2# |
58787-28030 |
US $5.24 |
||
|
62520P
|
62520P
62520-28180 Panel Assy, Quarter Trim, Front LhQUARTER TRIM, FRONT LH [01.1992 - 01.1995] CR27,KR27,YR29..LHD..4D..02S; CR27,KR27,YR29..05S W/O(REAR SEAT) |
62520-28180 |
US $163.07 |
||
|
62630P
|
62630P
62630-28640 Panel Assy, Quarter Trim, Rear RhQUARTER TRIM, REAR RH [01.1992 - 01.1995] CR27,KR27,YR29..LHD..02S |
62630-28640 |
US $173.26 |
||
|
62640P
|
62640P
62640-28520
Panel Assy, Quarter Trim, Rear Lh
[01.1992 - 01.1995] CR27,KR27,YR29..LHD..4D..02S |
62640-28520 |
— | ||
|
6777128050
|
6777128050
67771-28050 Clip, Radiator Grille |
67771-28050 |
US $3.68 |
||
|
9018304063
|
9018304063
90183-04063 New Genuine Part |
90183-04063 |
US $1.75 |
||
|
9046707054
|
9046707054
90467-07054
New Genuine Part
|
90467-07054 |
— | ||
|
9046710150
|
9046710150
90467-10150
Clip(For Rear Door Trim Board)
|
90467-10150 |
— |
