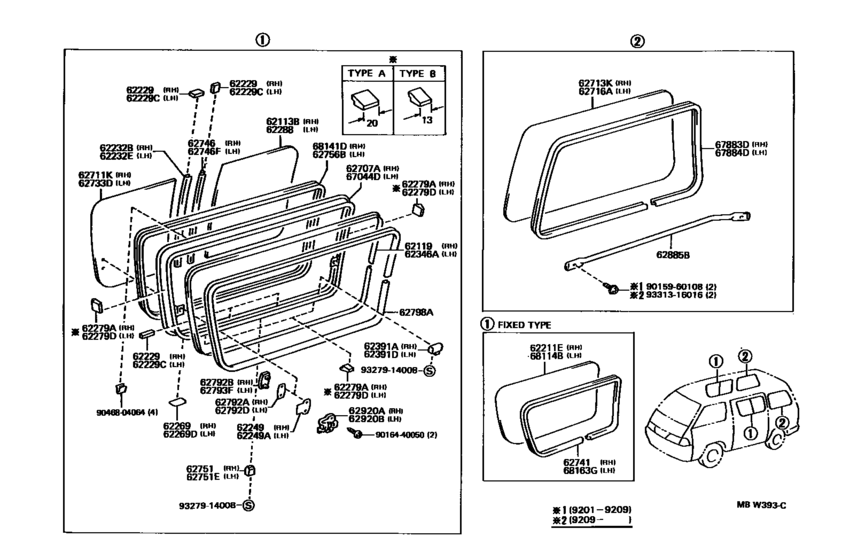

Side Window ([01.1992 - ] (9201- )RHD..4D..05S,06S) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- YR39
- grade
- STD
- Roof
- SRF
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62113B
|
62113B
62113-28010 Glass, Side Front Window, Rear Rh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) *TEM,T=3.5 |
62113-28010 |
US $198.02 |
||
|
62113B
|
62113B
62113-28030 Glass, Side Front Window, Rear Rh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..4D..(05S,06S) *TEM,T=3.5,BLUE |
62113-28030 |
US $208.21 |
||
|
62119
|
62119
62119-28010 Packing, Side Front Window, Rh[01.1992 - 09.1993] CR27,KR27,YR22,39..RHD..STD..4D..(05S,06S,08S) |
62119-28010 |
US $25.63 |
||
|
62211E
|
62211E
62211-28150 Glass, Side Window, Rear Rh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..4D..(05S,06S) *TEM,T=3.5 |
62211-28150 |
US $219.86 |
||
|
62229
|
62229
62229-28010
Packing, Side Window
[03.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) 14 X 14 X 20 |
62229-28010 |
— | ||
|
62229
|
62229
62229-87001 Packing, Side Window[01.1992 - 03.1992] CR27,KR27,YR39..RHD..4D..(05S,06S) 10X10X20 |
62229-87001 |
US $2.77 |
||
|
62229
|
62229
62229-87002 Packing, Side Window[01.1992 - 03.1992] CR27,KR27,YR39..RHD..4D..(05S,06S) 10X10X15 |
62229-87002 |
US $2.77 |
||
|
62229
|
62229
62229-95J00 Packing, Side Window[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD..STD..4D..(05S,06S,08S) 7 X 8 X 50 |
62229-95J00 |
US $1.92 |
||
|
62229C
|
62229C
62229-28010
Packing, Side Window
[03.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) 14 X 14 X 20 |
62229-28010 |
— | ||
|
62229C
|
62229C
62229-87001 Packing, Side Window[01.1992 - 03.1992] CR27,KR27,YR39..RHD..(05S,06S) 10X10X20 |
62229-87001 |
US $2.77 |
||
|
62229C
|
62229C
62229-87002 Packing, Side Window[01.1992 - 03.1992] CR27,KR27,YR39..RHD..(05S,06S) 10X10X15 |
62229-87002 |
US $2.77 |
||
|
62229C
|
62229C
62229-95J00 Packing, Side Window[09.1993 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) 7 X 8 X 50 |
62229-95J00 |
US $1.92 |
||
|
62232B
|
62232B
62232-28010
Channel, Side Window Glass
[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) |
62232-28010 |
— | ||
|
62232E
|
62232E
62232-28010
Channel, Side Window Glass
[01.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) |
62232-28010 |
— | ||
|
62249
|
62249
62249-95700 Plate, Side Window, Rh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..4D..(05S,06S) RH; CR27,KR27..LHD..05S LH |
62249-95700 |
from US $1.52 |
||
|
62249A
|
62249A
62249-95700 Plate, Side Window, Rh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..(05S,06S) LH; YR39..5D;CR27,KR27..LHD..05S RH |
62249-95700 |
from US $1.52 |
||
|
62269
|
62269
62269-87001 Film, Side Window Frame, Rh[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD..STD..4D..(05S,06S,08S) |
62269-87001 |
US $2.77 |
||
|
62269D
|
62269D
62269-87001 Film, Side Window Frame, Rh[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD..STD..(05S,06S,08S) |
62269-87001 |
US $2.77 |
||
|
62279A
|
62279A
62279-28010
Spacer, Side Window Frame
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD..STD..4D..(05S,06S,08S) TYPE A |
62279-28010 |
— | ||
|
62279A
|
62279A
62279-28020
Spacer, Side Window Frame
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD..STD..4D..(05S,06S,08S) TYPE B |
62279-28020 |
— | ||
|
62279D
|
62279D
62279-28010
Spacer, Side Window Frame
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD..STD..(05S,06S,08S) TYPE A |
62279-28010 |
— | ||
|
62279D
|
62279D
62279-28020
Spacer, Side Window Frame
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD..STD..(05S,06S,08S) TYPE B |
62279-28020 |
— | ||
|
62288
|
62288
62288-28010 Glass, Slide Door Window, Rear Lh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) *TEM,T=3.5 |
62288-28010 |
US $196.56 |
||
| replacement | |||||
|
62288
|
62288
62288-28030 Glass, Slide Door Window, Rear Lh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) *TEM,T=3.5 |
62288-28030 |
US $205.30 |
||
|
62288
|
62288
62288-28030 Glass, Slide Door Window, Rear Lh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..(05S,06S) *TEM,T=3.5,BLUE |
62288-28030 |
US $205.30 |
||
|
62346A
|
62346A
62346-28010 Packing, Slide Door Window, Lh[01.1992 - 09.1993] CR27,KR27,YR22,39..RHD..STD..(05S,06S,08S) |
62346-28010 |
US $25.63 |
||
|
62391A
|
62391A
62391-28010 Stopper, Side Window, No.1 Front Rh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) |
62391-28010 |
US $2.48 |
||
|
62391D
|
62391D
62391-28010 Stopper, Side Window, No.1 Front Rh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) |
62391-28010 |
US $2.48 |
||
|
62707A
|
62707A
62707-28010
Frame Sub-Assy, Side Front Window, Rh
[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) |
62707-28010 |
— | ||
|
62711K
|
62711K
62711-28030 Glass, Quarter Window, Front Rh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) *TEM,T=3.5 |
62711-28030 |
US $224.22 |
||
| replacement | |||||
|
62711K
|
62711K
62711-28050 Glass, Quarter Window, Front Rh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) *TEM,T=3.5 |
62711-28050 |
US $234.42 |
||
|
62711K
|
62711K
62711-28050 Glass, Quarter Window, Front Rh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..4D..(05S,06S) *TEM,T=3.5,BLUE |
62711-28050 |
US $234.42 |
||
|
62713K
|
62713K
62713-28100 Glass, Side Window, Rear Rh[01.1992 - 07.2000] CR27,KR2#,YR21,39..05S,06S,08S *TEM,T=3.5 |
62713-28100 |
US $228.59 |
||
| replacement | |||||
|
62713K
|
62713K
62713-28110 Glass, Side Window, Rear Rh[01.1992 - 07.2000] CR27,KR2#,YR21,39..05S,06S,08S *TEM,T=3.5 |
62713-28110 |
US $238.78 |
||
|
62713K
|
62713K
62713-28110 Glass, Side Window, Rear Rh[01.1992 - 10.1996] CR27,KR27,YR39..05S,06S *TEM,T=3.5,BLUE |
62713-28110 |
US $238.78 |
||
|
62716A
|
62716A
62716-28090 Glass, Side Rear Window, Lh[01.1992 - 10.1996] CR27,KR27,YR22,39..STD..(05S,06S,08S) *TEM,T=3.5 |
62716-28090 |
US $232.96 |
||
| replacement | |||||
|
62716A
|
62716A
62716-28100 Glass, Side Rear Window, Lh[01.1992 - 10.1996] CR27,KR27,YR22,39..STD..(05S,06S,08S) *TEM,T=3.5 |
62716-28100 |
US $238.78 |
||
|
62716A
|
62716A
62716-28100 Glass, Side Rear Window, Lh[01.1992 - 10.1996] YR22..STD *TEM,T=3.5,BLUE; CR27,KR27,YR39..05S,06S *TEM,T=3.5,BLUE |
62716-28100 |
US $238.78 |
||
|
62733D
|
62733D
62733-28010 Grass, Slide Door Window, Front Lh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) *TEM,T=3.5 |
62733-28010 |
US $218.40 |
||
| replacement | |||||
|
62733D
|
62733D
62733-28030 Grass, Slide Door Window, Front Lh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) *TEM,T=3.5 |
62733-28030 |
US $232.96 |
||
|
62733D
|
62733D
62733-28030 Grass, Slide Door Window, Front Lh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..(05S,06S) *TEM,T=3.5,BLUE |
62733-28030 |
US $232.96 |
||
|
62741
|
62741
62741-28030 Weatherstrip, Quarter Window, Rh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..4D..(05S,06S) |
62741-28030 |
US $109.20 |
||
|
62746
|
62746
62746-28010
Weatherstrip, Side Window Glass Channel, No.1
[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) |
62746-28010 |
— | ||
|
62746F
|
62746F
62746-28010
Weatherstrip, Side Window Glass Channel, No.1
[01.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) |
62746-28010 |
— | ||
|
62751
|
62751
62751-95661
Stop, Side Front Window Glass, Rh
[08.1993 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) |
62751-95661 |
— | ||
|
62751E
|
62751E
62751-95661
Stop, Side Front Window Glass, Rh
[08.1993 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) |
62751-95661 |
— | ||
|
62756B
|
62756B
62756-28010
Run, Slide Door Window, Lh
[01.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) |
62756-28010 |
— | ||
|
62792A
|
62792A
62792-95A00 Packing, Side Rear Window, Rh[01.1992 - 11.1992] CR27,KR27,YR39..RHD..4D..(05S,06S) RH; CR27,KR27..LHD..05S LH |
62792-95A00 |
from US $1.60 |
||
|
62792B
|
62792B
62793-95704 Retainer, Side Window Lock, No.1[01.1992 - 11.1992] CR27,KR27,YR39..RHD..4D..(05S,06S) RH; CR27,KR27..LHD..05S LH |
62793-95704 |
from US $6.81 |
||
|
62792D
|
62792D
62792-95A00 Packing, Side Rear Window, Rh[01.1992 - 11.1992] CR27,KR27,YR39..RHD..(05S,06S) LH; YR39..5D;CR27,KR27..LHD..05S RH |
62792-95A00 |
from US $1.60 |
||
|
62793F
|
62793F
62793-95704 Retainer, Side Window Lock, No.1[01.1992 - 11.1992] CR27,KR27,YR39..RHD..(05S,06S) LH; YR39..5D;CR27,KR27..LHD..05S RH |
62793-95704 |
from US $6.81 |
||
|
62798A
|
62798A
62798-28020
Moulding, Side Window, Front
[01.1992 - 01.1995] CR27,KR2#,YR39..4D..(05S,06S,08S) SIDE FRONT |
62798-28020 |
— | ||
|
62798A
|
62798A
62798-28040
Moulding, Side Window, Front
[01.1992 - 01.1995] YR22..STD;CR27,KR2#,YR21,39..4D..(05S,06S,08S) SLIDE DOOR |
62798-28040 |
— | ||
|
62885B
|
62885B
62885-28010 Guard, Quarter Window, No.2[01.1992 - 10.1996] CR27,KR27,YR39..05S,06S |
62885-28010 |
US $39.89 |
||
|
62920A
|
62920A
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[01.1992 - 09.1993] CR27,KR27,YR39..RHD..4D..(05S,06S) RH; CR27,KR27..LHD..05S LH |
62910-95703 |
from US $11.64 |
||
|
62920B
|
62920B
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[01.1992 - 09.1993] CR27,KR27,YR39..RHD..(05S,06S) LH; YR39..5D;CR27,KR27..LHD..05S RH |
62910-95703 |
from US $11.64 |
||
|
67044D
|
67044D
67044-28020
Frame Sub-Assy, Slide Door Window, Lh
[01.1992 - 10.1996] CR27,KR27,YR39..RHD..(05S,06S) |
67044-28020 |
— | ||
|
67883D
|
67883D
67883-28030 Weatherstrip, Quarter Window, Rear[01.1992 - 07.2000] CR27,KR2#,YR21,39..05S,06S,08S |
67883-28030 |
US $110.66 |
||
|
67884D
|
67884D
67883-28030 Weatherstrip, Quarter Window, Rear[01.1992 - 10.1996] CR27,KR27,YR22,39..STD..(05S,06S,08S) |
67883-28030 |
US $110.66 |
||
|
68114B
|
68114B
68114-28060 Glass, Rear Door, Front Lh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) |
68114-28060 |
US $232.96 |
||
|
68141D
|
68141D
68141-28020
Run, Side Front Window, Rh
[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) |
68141-28020 |
— | ||
|
68163G
|
68163G
68163-28010 Weatherstrip, Slide Door Glass, Rh[01.1992 - 10.1996] CR27,KR27,YR39..RHD..4D..(05S,06S) |
68163-28010 |
US $117.94 |
||
|
9015960108
|
9015960108
90159-60108 New Genuine Part |
90159-60108 |
US $1.05 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.80 |
||
|
9046804064
|
9046804064
90468-04064 New Genuine Part |
90468-04064 |
US $2.72 |
||
|
9327914008
|
9327914008
93279-14008
New Genuine Part
|
93279-14008 |
— | ||
|
9331316016
|
9331316016
93313-16016 New Genuine Part |
93313-16016 |
US $0.87 |
||
