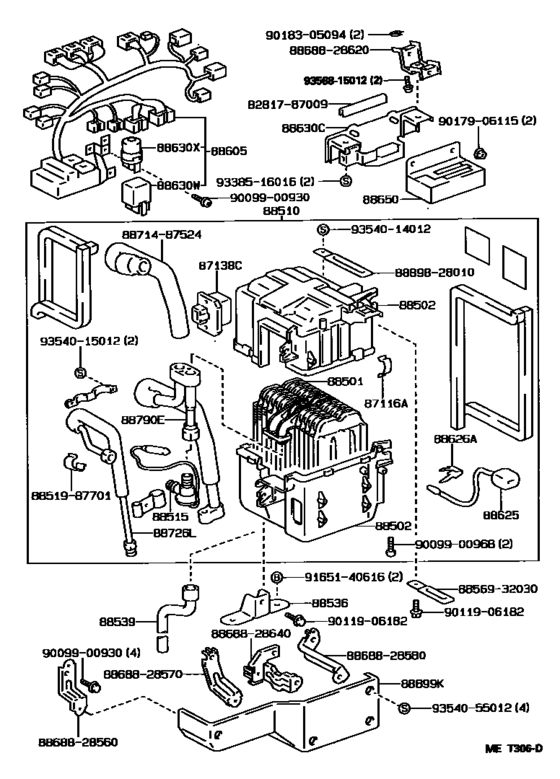

Heating & Air Conditioning - Cooler Unit ([01.1992 - ] FRONT(MAKER OPTION) (9201- )RHD) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- YR39
- grade
- STD
- Roof
- MRF
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD |
87116-14010 |
— | ||
|
87138C
|
87138C
87138-28050
Resistor, Heater Blower
[01.1992 - 10.1996] YR39..05S;CR27,KR27..RHD |
87138-28050 |
— | ||
|
88501
|
88501
88501-28220
Evaporator Sub-Assy, Cooler, No.1
[09.1993 - 10.1994] CR27,KR27,YR22,39..RHD |
88501-28220 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-28221
Evaporator Sub-Assy, Cooler, No.1
[09.1993 - 10.1994] CR27,KR27,YR22,39..RHD |
88501-28221 |
— | ||
|
88501
|
88501
88501-28221
Evaporator Sub-Assy, Cooler, No.1
[10.1994 - 10.1996] CR27,KR27,YR22,39..RHD |
88501-28221 |
— | ||
|
88502
|
88502
88502-28310
Case Sub-Assy, Cooling Unit
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD UPPER |
88502-28310 |
— | ||
|
88502
|
88502
88502-28320
Case Sub-Assy, Cooling Unit
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD LOWER |
88502-28320 |
— | ||
|
88510
|
88510
88510-28280
Unit Assy, Cooler
[01.1992 - 09.1993] YR39..05S;CR27,KR27..RHD..(02S,03S); CR27,KR27..RHD..(05S,06S) MAKER OPTION |
88510-28280 |
— | ||
|
88510
|
88510
88510-28500
Unit Assy, Cooler
[09.1993 - 10.1996] YR39..05S;CR27,KR27..RHD..(02S,03S); CR27,KR27..RHD..(05S,06S) MAKER OPTION |
88510-28500 |
— | ||
|
88515
|
88515
88515-28100 Valve, Cooler Expansion[09.1993 - 11.1995] CR27,KR27,YR22,39..RHD |
88515-28100 |
US $58.09 |
||
|
88515
|
88515
88515-28110 Valve, Cooler ExpansionCOOLER EXPANSION [11.1995 - 10.1996] CR27,KR27..RHD..(05S,06S); YR39..05S;CR27,KR27..RHD..(02S,03S) |
88515-28110 |
US $94.64 |
||
|
88515
|
88515
88515-87002
Valve, Cooler Expansion
[01.1992 - 09.1993] CR27,KR27,YR22,39..RHD; YR21 REAR |
88515-87002 |
— | ||
|
88536
|
88536
88536-28020
Bracket, Cooling Unit, No.1
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD |
88536-28020 |
— | ||
|
88539
|
88539
88539-87010
Hose, Cooler Unit Drain, No.1
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD |
88539-87010 |
— | ||
|
88605
|
88605
88605-28590
Harness Sub-Assy, Cooler Wiring, No.1
[01.1992 - 02.1992] YR39..05S MAKER OPTION SINGLE AIR CONDITIONER |
88605-28590 |
— | ||
|
88605
|
88605
88605-28740
Harness Sub-Assy, Cooler Wiring, No.1
[01.1992 - 02.1992] YR39..05S MAKER OPTION SINGLE AIR CONDITIONER & W(FRONT STD HEATER) |
88605-28740 |
— | ||
|
88625
|
88625
88625-28130
Thermistor, Cooler, No.1
[09.1993 - 10.1996] CR27,KR27,YR22,39..RHD |
88625-28130 |
— | ||
|
88625
|
88625
88625-90A00
Thermistor, Cooler, No.1
[01.1992 - 09.1993] CR27,KR27,YR22,39..RHD |
88625-90A00 |
— | ||
| replacement | |||||
|
88625
|
88625
88625-12070 Thermistor, Cooler, No.1[01.1992 - 09.1993] CR27,KR27,YR22,39..RHD |
88625-12070 |
US $7.69 |
||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[01.1992 - 09.1993] CR27,KR27,YR22,39..RHD FRONT |
88626-28010 |
— | ||
|
88630C
|
88630C
88631-28120
Bracket, Cooler Relay
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD |
88631-28120 |
— | ||
| replacement | |||||
|
88630C
|
88630C
88631-28040
Bracket, Cooler Relay
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD |
88631-28040 |
— | ||
|
88630W
|
88630W
85913-30020
Relay, Ignition, No.1
[01.1992 - 07.2000] CR27,KR2#,YR2#,39 |
85913-30020 |
— | ||
|
88630X
|
88630X
90987-03001 Relay[01.1992 - 07.2000] CR27,KR2#,YR2#,39 |
90987-03001 |
from US $33.48 |
||
|
88650
|
88650
88650-28150
Amplifier Assy, Cooler Stabilizer
[01.1992 - 06.1992] KR27,YR22,39..RHD |
88650-28150 |
— | ||
|
88726L
|
88726L
88716-2R160 Pipe, Cooler Refrigerant Liquid, L[09.1993 - 11.1995] CR27,KR27,YR22,39..RHD |
88716-2R160 |
US $45.72 |
||
|
88726L
|
88726L
88716-2R161 Pipe, Cooler Refrigerant Liquid, LCOOLER REFRIGERANT LIQUID, L [11.1995 - 10.1996] CR27,KR27..RHD..(05S,06S); YR39..05S;CR27,KR27..RHD..(02S,03S) |
88716-2R161 |
US $47.76 |
||
|
88790E
|
88790E
88710-2J660 Tube & Accessory Assy, Airconditioner[09.1993 - 12.1993] YR39..05S;CR27,KR27..RHD..(02S,03S); CR27,KR27..RHD..(05S,06S) MAKER OPTION |
88710-2J660 |
US $144.14 |
||
|
88790E
|
88790E
88710-2J661 Tube & Accessory Assy, AirconditionerAIRCONDITIONER [11.1995 - 10.1996] YR39..05S;CR27,KR27..RHD..(02S,03S); CR27,KR27..RHD..(05S,06S) MAKER OPTION |
88710-2J661 |
US $136.86 |
||
|
88899K
|
88899K
88899-28260
Plate, Cover
[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD |
88899-28260 |
— | ||
|
8281787009
|
8281787009
82817-87009 Protector, Wiring Harness, No.1 |
82817-87009 |
US $3.93 |
||
|
8851987701
|
8851987701
88519-87701
Holder, Remote Bulb
|
88519-87701 |
— | ||
|
8856932030
|
8856932030
88569-32030
Clamp (for Cooler Relay)
|
88569-32030 |
— | ||
|
8868828560
|
8868828560
88688-28560
Bracket, Cooler Diaphragm
|
88688-28560 |
— | ||
|
8868828570
|
8868828570
88688-28570
Bracket, Cooler Diaphragm
|
88688-28570 |
— | ||
|
8868828580
|
8868828580
88688-28580
Bracket, Cooler Diaphragm
|
88688-28580 |
— | ||
|
8868828620
|
8868828620
88688-28620
Bracket, Cooler Relay
|
88688-28620 |
— | ||
|
8868828640
|
8868828640
88688-28640
Bracket, Cooler Diaphragm
|
88688-28640 |
— | ||
|
8871487524
|
8871487524
88714-87524
Hose, Cooler Refrigerant Liquid, No.1
|
88714-87524 |
— | ||
|
8889828010
|
8889828010
88898-28010
Clamp (for Cooler Relay)
|
88898-28010 |
— | ||
| replacement | |||||
|
8889828010
|
8889828010
88569-87003
Clamp (for Cooler Relay)
|
88569-87003 |
— | ||
|
9009900930
|
9009900930
90099-00930
New Genuine Part
|
90099-00930 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9011906182
|
9011906182
90119-06182 Bolt, W/washer (For Floor Shift) |
90119-06182 |
US $1.61 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9354014012
|
9354014012
93540-14012 New Genuine Part |
93540-14012 |
US $2.15 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $1.08 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
