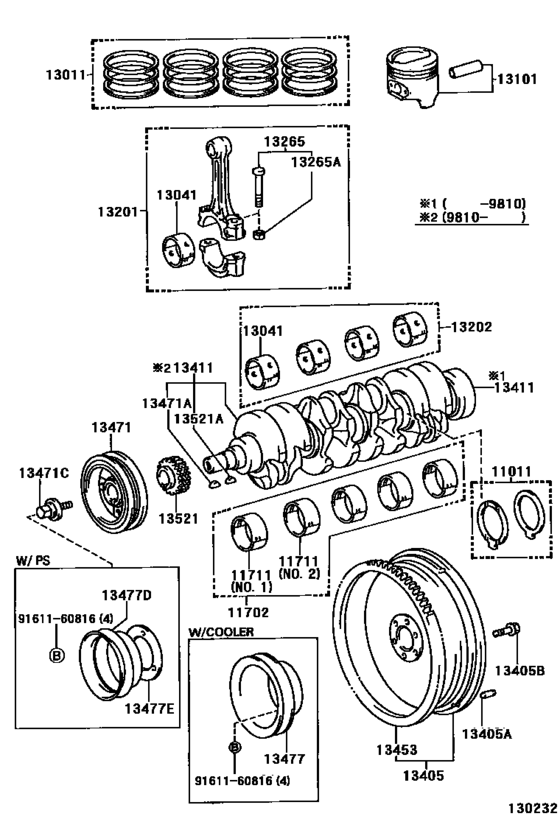

Crankshaft & Piston ([01.1992 - ] (9201- )3Y#,4YEC) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- YR39
- grade
- STD
- Roof
- SRF
- ENGINE
- 3YC
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 STD |
11011-25010 |
from US $17.82 |
||
|
11702
|
11702
11704-71020 Bearing Set, Crankshaft (0.25)[01.1992 - 12.1995] 3Y#,4YEC..YR2#,39 U/S 0.25 |
11704-71020 |
US $206.17 |
||
|
11702
|
11702
11704-71030
Bearing Set, Crankshaft (0.25)
[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 U/S 0.25 |
11704-71030 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-73010 Bearing Set, Crankshaft (0.25)[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 U/S 0.25 |
11704-73010 |
from US $55.33 |
||
|
11711
|
11711
11071-71010-01
Bearing, Crankshaft
[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 1,NO.1 |
11071-71010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-73010-01 Bearing, Crankshaft[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 1,NO.1 |
11071-73010-01 |
US $53.14 |
||
|
11711
|
11711
11071-71010-02
Bearing, Crankshaft
[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 2,NO.1 |
11071-71010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-73010-02 Bearing, Crankshaft[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 2,NO.1 |
11071-73010-02 |
US $53.14 |
||
|
11711
|
11711
11071-71010-03
Bearing, Crankshaft
[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 3,NO.1 |
11071-71010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-73010-03 Bearing, Crankshaft[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 3,NO.1 |
11071-73010-03 |
US $53.14 |
||
|
11711
|
11711
11701-71020-01 Bearing, Crankshaft[01.1992 - 12.1995] 3Y#,4YEC..YR2#,39 MARK 1 |
11701-71020-01 |
from US $21.17 |
||
|
11711
|
11711
11701-71020-02 Bearing, Crankshaft[01.1992 - 12.1995] 3Y#,4YEC..YR2#,39 MARK 2 |
11701-71020-02 |
from US $21.17 |
||
|
11711
|
11711
11701-71020-03 Bearing, Crankshaft[01.1992 - 12.1995] 3Y#,4YEC..YR2#,39 MARK 3 |
11701-71020-03 |
US $45.43 |
||
|
11711
|
11711
11701-71030-01
Bearing, Crankshaft
[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 1,NO.2 |
11701-71030-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-73010-01 Bearing, Crankshaft[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 1,NO.2 |
11701-73010-01 |
US $53.14 |
||
|
11711
|
11711
11701-71030-02
Bearing, Crankshaft
[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 2,NO.2 |
11701-71030-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-73010-02 Bearing, Crankshaft[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 2,NO.2 |
11701-73010-02 |
US $53.14 |
||
|
11711
|
11711
11701-71030-03
Bearing, Crankshaft
[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 3,NO.2 |
11701-71030-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-73010-03 Bearing, Crankshaft[12.1995 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 3,NO.2 |
11701-73010-03 |
US $53.14 |
||
|
13011
|
13011
13011-71012 Ring Set, Piston (STD)[05.1996 - 10.1996] 3YC..YR39 STD |
13011-71012 |
US $218.40 |
||
|
13011
|
13011
13011-71021
Ring Set, Piston
[01.1992 - 05.1996] 3YC..YR39 STD |
13011-71021 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-71012 Ring Set, Piston (STD)[01.1992 - 05.1996] 3YC..YR39 STD |
13011-71012 |
US $218.40 |
||
|
13011
|
13011
13013-71021 Ring Set, Piston (0.50)[01.1992 - 10.1996] 3YC..YR39 O/S 0.50 |
13013-71021 |
US $135.41 |
||
|
13011
|
13011
13014-71021 Ring Set, Piston (0.75)[01.1992 - 10.1996] 3YC..YR39 O/S 0.75 |
13014-71021 |
US $204.42 |
||
|
13011
|
13011
13015-71021 Ring Set, Piston (1.00)[01.1992 - 10.1996] 3YC..YR39 O/S 1.00 |
13015-71021 |
US $135.41 |
||
|
13041
|
13041
13041-71011-06
Bearing, Connecting Rod
[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 6 |
13041-71011-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-06 Bearing, Connecting Rod[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 6 |
13041-73010-06 |
from US $14.06 |
||
|
13041
|
13041
13041-71011-07
Bearing, Connecting Rod
[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 7 |
13041-71011-07 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-07 Bearing, Connecting Rod[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 7 |
13041-73010-07 |
US $34.42 |
||
|
13041
|
13041
13041-71011-08
Bearing, Connecting Rod
[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 8 |
13041-71011-08 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-08 Bearing, Connecting Rod[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 MARK 8 |
13041-73010-08 |
from US $18.18 |
||
|
13101
|
13101
13101-73010-01 Piston Sub-Assy, W/pin[01.1992 - 07.2000] 3Y#..YR21,39 STD,MARK1 |
13101-73010-01 |
US $96.10 |
||
|
13101
|
13101
13101-73010-02 Piston Sub-Assy, W/pin[01.1992 - 07.2000] 3Y#..YR21,39 STD,MARK2 |
13101-73010-02 |
from US $63.59 |
||
|
13101
|
13101
13101-73010-03 Piston Sub-Assy, W/pin[01.1992 - 07.2000] 3Y#..YR21,39 STD,MARK3 |
13101-73010-03 |
US $96.10 |
||
|
13101
|
13101
13103-73010 Piston Sub-Assy, W/pin[01.1992 - 07.2000] 3Y#..YR21,39 O/S 0.50 |
13103-73010 |
from US $60.28 |
||
|
13101
|
13101
13104-73010
Piston Sub-Assy, W/pin
[01.1992 - 07.2000] 3Y#..YR21,39 O/S 0.75 |
13104-73010 |
— | ||
|
13101
|
13101
13105-73010 Piston Sub-Assy, W/pin[01.1992 - 07.2000] 3Y#..YR21,39 O/S 1.00 |
13105-73010 |
US $60.28 |
||
|
13201
|
13201
13201-79045 Rod Sub-Assy, Connecting[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 |
13201-79045 |
US $168.90 |
||
| replacement | |||||
|
13201
|
13201
13201-79046 Rod Sub-Assy, Connecting[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 |
13201-79046 |
US $168.90 |
||
|
13202
|
13202
13204-71011
Bearing Set, Connecting Rod
[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 U/S 0.25 |
13204-71011 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-73010 Bearing Set, Connecting Rod (0.25)[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 U/S 0.25 |
13204-73010 |
US $160.74 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 |
13265-29025 |
from US $8.40 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 |
90170-09001 |
US $2.06 |
||
|
13411
|
13411
13411-73010 Crankshaft[01.1992 - 10.1998] 3Y#,4YEC..YR2#,39 |
13411-73010 |
US $1,316.22 |
||
| replacement | |||||
|
13411
|
13411
13411-73900 Crankshaft[01.1992 - 10.1998] 3Y#,4YEC..YR2#,39 |
13411-73900 |
US $1,316.22 |
||
|
13471
|
13471
13408-73010 Pulley, Crankshaft[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 |
13408-73010 |
US $201.28 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[09.1992 - 07.2000] 5K..KR2#; 3Y#,4YEC..YR2#,39 |
90280-05005 |
from US $0.87 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[01.1992 - 04.1992] 5K..KR2#; 3Y#,4YEC..YR2#,39 |
90280-05010 |
from US $1.84 |
||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 |
90105-14069 |
US $14 |
||
|
13477
|
13477
88451-20110
Pulley, Crankshaft, No.2
[01.1992 - 10.1996] 3Y#..YR39; 4YEC..YR22 W(SINGLE AIR CONDITIONER) |
88451-20110 |
— | ||
|
13477D
|
13477D
44319-28013 Pulley, Vane Pump Drive[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 |
44319-28013 |
US $24.98 |
||
|
13477E
|
13477E
44318-28012 Spacer, Vane Pump Drive Pulley[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 |
44318-28012 |
US $4.89 |
||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[01.1992 - 07.2000] 3Y#,4YEC..YR2#,39 |
13521-33010 |
US $39.31 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[09.1992 - 07.2000] 5K..KR2#; 3Y#,4YEC..YR2#,39 |
90280-05005 |
from US $0.87 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[01.1992 - 04.1992] 5K..KR2#; 3Y#,4YEC..YR2#,39 |
90280-05010 |
from US $1.84 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.95 |
||
