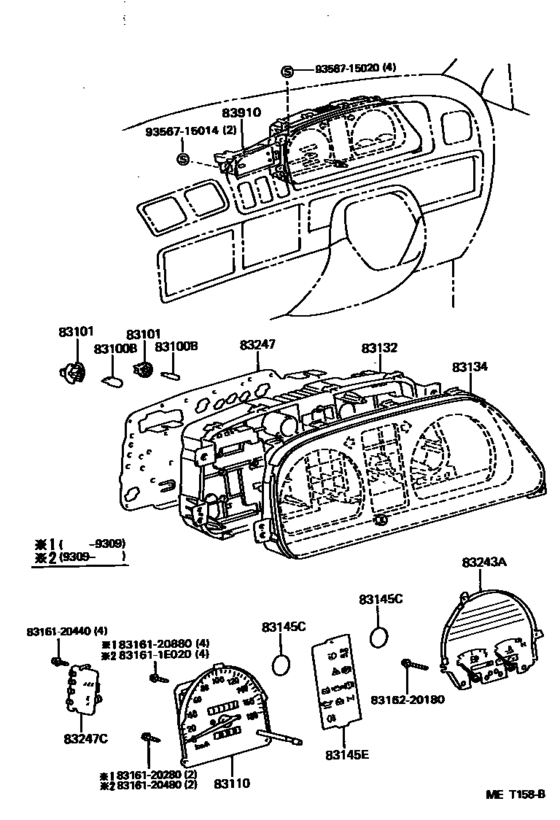

Meter ([01.1992 - ] (9201- )CR27,KR27,YR39..RHD) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- YR39
- grade
- STD
- Roof
- SRF
- ENGINE
- 3YC
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83119-2J020 Bulb, Combination Meter, No.1[09.1993 - 08.1994] CR27,KR27,YR39..RHD 14V 3.8W,W(GREEN CAP) |
83119-2J020 |
US $1.89 |
||
|
83100B
|
83100B
83119-36060 Bulb, Combination Meter, No.1[08.1994 - 10.1996] CR27,KR27,YR39..RHD 12V 3.0W GREEN CAP |
83119-36060 |
US $10.57 |
||
|
83100B
|
83100B
83119-36080 Bulb, Combination Meter, No.1[09.1993 - 08.1994] YR21,39;CR27,KR27,YR22..RHD..MTM 12V 2.0W |
83119-36080 |
US $10.39 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1993 - 08.1994] YR39..ATM 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1993 - 10.1996] YR39 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1993 - 10.1996] YR39 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1993 - 10.1996] YR39..ATM 12V 1.4W BULB |
83101-14040 |
US $2.44 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[01.1992 - 09.1993] YR39..02S 12V 3.4W BULB,BLACK |
83101-20040 |
from US $1.56 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[01.1992 - 09.1993] CR27,KR27,YR39..RHD 12V 3.4W BULB,GREEN |
83101-20070 |
US $8.78 |
||
|
83110
|
83110
83110-28870 Speedometer Assy[01.1992 - 08.1993] YR39..02S |
83110-28870 |
US $353.81 |
||
|
83132
|
83132
83132-28060 Case, Combination Meter[01.1992 - 10.1996] YR39 |
83132-28060 |
US $58.82 |
||
|
83134
|
83134
83134-28080 Cover, Combination Meter, No.1COMBINATION METER, NO.1 [01.1992 - 09.1993] KR27,YR39..RHD |
83134-28080 |
US $46.88 |
||
|
83145C
|
83145C
83145-89320
Lens, Meter, No.1
[01.1992 - 07.2000] CR27,KR2#,YR21,39 |
83145-89320 |
— | ||
|
83145E
|
83145E
83145-28100 Lens, Meter, No.6METER, NO.6 [01.1992 - 10.1996] YR39..02S |
83145-28100 |
US $8.30 |
||
|
83243A
|
83243A
83243-28060 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [01.1992 - 10.1996] YR39 |
83243-28060 |
US $100.46 |
||
|
83247
|
83247
83247-28180 Plate, Meter CircuitMETER CIRCUIT [01.1992 - 09.1993] YR39..02S |
83247-28180 |
US $57.80 |
||
|
83247
|
83247
83247-28780 Plate, Meter CircuitMETER CIRCUIT [09.1993 - 10.1996] YR39..02S |
83247-28780 |
US $57.80 |
||
|
83247C
|
83247C
83247-95N29
Plate Sub-Assy, Combination Meter Circuit, No.3
[01.1992 - 07.2000] YR2#,39 |
83247-95N29 |
— | ||
|
83910
|
83910
83910-28060 Clock Assy[01.1992 - 10.1996] CR27,KR27,YR22,39..RHD |
83910-28060 |
US $422.24 |
||
|
831611E020
|
831611E020
83161-1E020 Case, Combination Meter Mirror, No.1 |
83161-1E020 |
US $0.86 |
||
|
8316120280
|
8316120280
83161-20280 Case, Combination Meter Mirror, No.1 |
83161-20280 |
US $1.69 |
||
|
8316120440
|
8316120440
83161-20440
Case, Combination Meter Mirror, No.1
|
83161-20440 |
— | ||
|
8316120480
|
8316120480
83161-20480 Case, Combination Meter Mirror, No.1 |
83161-20480 |
US $1.46 |
||
|
8316120880
|
8316120880
83161-20880
Case, Combination Meter Mirror, No.1
|
83161-20880 |
— | ||
|
8316220180
|
8316220180
83162-20180 Case, Combination Meter Mirror, No.2 |
83162-20180 |
US $1.75 |
||
|
9356715014
|
9356715014
93567-15014 Direct |
93567-15014 |
US $1.60 |
||
| replacement | |||||
|
9356715014
|
9356715014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356715020
|
9356715020
93567-15020 New Genuine Part |
93567-15020 |
US $1.16 |
||
