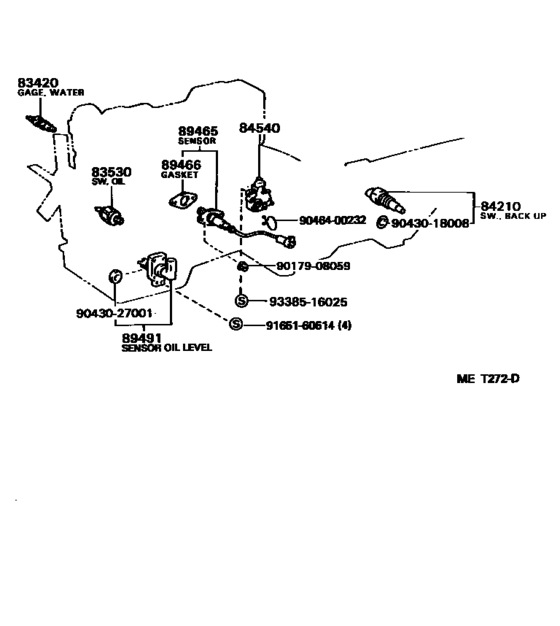

Switch & Relay & Computer ([01.1992 - ] ENGINE & TRANSMISSION (9201- )YR2#,39) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- YR39
- grade
- STD
- Roof
- SRF
- ENGINE
- 3YC
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[09.1993 - 07.2000] KR2#,YR2#,39 NIPPONDENSO |
83420-16040 |
from US $28.76 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[01.1992 - 09.1993] CR27,KR2#,YR2#,39 |
83420-20020 |
from US $29.21 |
||
|
83530
|
83530
83530-14030
Switch Assy, Oil Pressure (For Engine)
[01.1992 - 09.1993] YR2#,39 |
83530-14030 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[01.1992 - 09.1993] YR2#,39 |
83530-28030 |
from US $23.97 |
||
|
83530
|
83530
83530-14070
Switch Assy, Oil Pressure (For Engine)
[09.1993 - 01.1996] YR2#,39 |
83530-14070 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[09.1993 - 01.1996] YR2#,39 |
83530-28010 |
from US $25.68 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[01.1996 - 03.1998] KR2#,YR2#,39 |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.1996 - 03.1998] KR2#,YR2#,39 |
83530-60020 |
from US $24.16 |
||
|
84540
|
84540
84540-28021 Switch Assy, Neutral Start[01.1992 - 09.1993] YR22,39..ATM |
84540-28021 |
US $334.88 |
||
|
84540
|
84540
84540-30290 Switch Assy, Neutral Start[09.1993 - 10.1996] YR22,39..ATM TOKAIRIKA |
84540-30290 |
US $161.60 |
||
|
84540
|
84540
84540-30300 Switch Assy, Neutral Start[09.1993 - 10.1996] YR22,39..ATM MATSUSHITA |
84540-30300 |
US $108.33 |
||
|
89465
|
89465
89465-29555 Sensor, Oxygen[01.1992 - 10.1996] YR39..02S |
89465-29555 |
US $87.36 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[01.1992 - 10.1996] YR22,39..02S,08S |
89466-20020 |
from US $12.77 |
||
|
89491
|
89491
89491-27020 Sensor, Engine Oil Level[01.1992 - 07.2000] YR2#,39 |
89491-27020 |
US $304.30 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.05 |
||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
