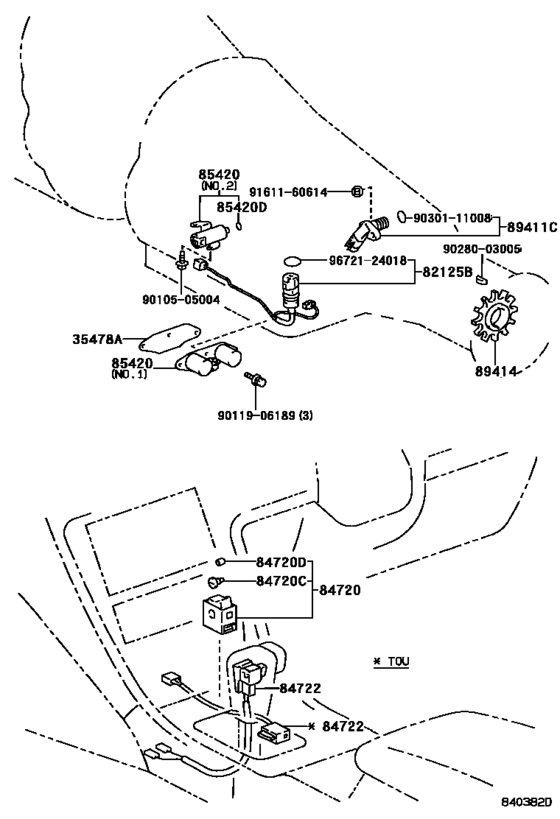

Overdrive & Electronic Controlled Transmission ([09.1996 - 08.1998] (9609-9808)GX100..4FC) Diagram Toyota MARK 2
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- GX100
- grade
- GD
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 09.1996
- To
- 10.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35478A
|
35478A
35478-30010
Gasket, Accumulator Cover
[09.1996 - 08.1998] GX100..4FC |
35478-30010 |
— | ||
|
82125B
|
82125B
82125-22250 Wire, Transmission[08.1998 -] GX100..4FC |
82125-22250 |
US $37.22 |
||
|
82125B
|
82125B
82125-28010 Wire, Transmission[09.1996 - 08.1998] GX100..4FC |
82125-28010 |
US $19.51 |
||
|
84720
|
84720
84720-22180 Switch Assy, Pattern Select[09.1996 - 08.1998] GX100,JZX100..4FC..(GD,GDG,TOU,TOUS) |
84720-22180 |
US $61.44 |
||
|
84720C
|
84720C
84999-10710 Bulb, Throttle Position Switch[09.1996 - 08.1998] GX100,JZX10#..4FC １４Ｖ ０．５６Ｗ |
84999-10710 |
from US $6.16 |
||
|
84720D
|
84720D
84998-10670 Cap, Throttle Position Switch Bulb[09.1996 - 08.1998] GX100,JZX10#..4FC |
84998-10670 |
US $4.12 |
||
|
84722
|
84722
84722-22190-E0 Switch, Transmission Control[09.1996 - 10.2000] GX100,JZX100,101,LX100..4FC..(GD,GDG) ORCHID BROWN,TRIM4# |
84722-22190-E0 |
US $42.22 |
||
| replacement | |||||
|
84722
|
84722
84722-30190-B1 Switch, Transmission Control[09.1996 - 10.2000] GX100,JZX100,101,LX100..4FC..(GD,GDG) ORCHID BROWN,TRIM4# |
84722-30190-B1 |
US $42.22 |
||
|
84722
|
84722
84722-22190-G0 Switch, Transmission Control[09.1996 - 10.2000] GX100,JZX100,101,LX100..4FC..(GD,GDG,GL) DK.SAGE,TRIM6# |
84722-22190-G0 |
US $42.22 |
||
| replacement | |||||
|
84722
|
84722
84722-30190-B1 Switch, Transmission Control[09.1996 - 10.2000] GX100,JZX100,101,LX100..4FC..(GD,GDG,GL) DK.SAGE,TRIM6# |
84722-30190-B1 |
US $42.22 |
||
|
85420
|
85420
85420-22130 Solenoid Assy, Transmission[08.1998 - 10.2000] GX100..4FC |
85420-22130 |
US $80.08 |
||
| replacement | |||||
|
85420
|
85420
35250-30030 Solenoid Assy, Transmission[08.1998 - 10.2000] GX100..4FC |
35250-30030 |
US $214.40 |
||
|
85420
|
85420
85420-30050
Solenoid Assy, Transmission
[09.1996 - 08.1998] GX100..4FC ＮＯ．１ |
85420-30050 |
— | ||
|
85420
|
85420
85420-30070 Solenoid Assy, Transmission[09.1996 - 08.1998] GX100..4FC ＮＯ．２ |
85420-30070 |
from US $178.21 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[09.1996 - 08.1998] GX100..4FC |
90301-06004 |
from US $2.15 |
||
|
89411C
|
89411C
89411-50010 Sensor, Speed[09.1996 -] GX100..4FC |
89411-50010 |
from US $74.26 |
||
|
89414
|
89414
89414-22020 Rotor, Sensor[09.1996 - 08.1998] GX100..4FC |
89414-22020 |
US $14.41 |
||
|
89414
|
89414
89414-22040 Rotor, Sensor[08.1998 - 12.1998] GX100..4FC |
89414-22040 |
US $41.79 |
||
| replacement | |||||
|
89414
|
89414
89414-22020 Rotor, Sensor[08.1998 - 12.1998] GX100..4FC |
89414-22020 |
US $14.41 |
||
|
9010505004
|
9010505004
90105-05004 New Genuine Part |
90105-05004 |
US $1.02 |
||
|
9011906189
|
9011906189
90119-06189 New Genuine Part |
90119-06189 |
US $1.60 |
||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.90 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $3.78 |
||
