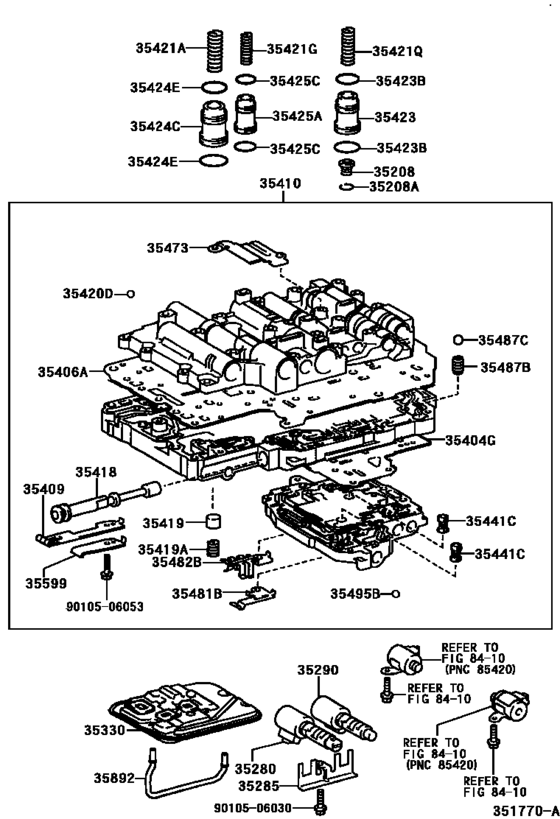

Valve Body & Oil Strainer (Atm) ([08.1998 - ] A42DE (9808- )GX100..4FC) Diagram Toyota MARK 2
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- GX100
- grade
- GD
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 09.1996
- To
- 10.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35208
|
35208
35208-28010 Spring Sub-Assy, B-2 Accumulator[09.1996 - 10.2000] GX100..4FC |
35208-28010 |
US $1.89 |
||
|
35208A
|
35208A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1996 - 10.2000] GX10#,JZX10#..ATM |
90521-22004 |
from US $1.24 |
||
|
35280
|
35280
35280-22010 Solenoid Assy, Lock Up Control[08.1998 -] GX100..4FC |
35280-22010 |
US $139.78 |
||
|
35285
|
35285
35285-22010 Plate, Solenoid Lock[08.1998 - 10.2000] GX100..4FC |
35285-22010 |
US $5.68 |
||
|
35290
|
35290
35290-22010 Solenoid Assy, Line Pressure Control[08.1998 - 10.2000] GX100..4FC |
35290-22010 |
US $152.88 |
||
|
35330
|
35330
35330-22030 Strainer Assy, Valve Body Oil[08.1998 - 09.1998] GX100..4FC |
35330-22030 |
US $61.30 |
||
| replacement | |||||
|
35330
|
35330
35330-22031 Strainer Assy, Valve Body Oil[08.1998 - 09.1998] GX100..4FC |
35330-22031 |
US $61.30 |
||
|
35330
|
35330
35330-22031 Strainer Assy, Valve Body Oil[09.1998 - 12.1998] GX100..4FC PNC 35106 (FIG 35-03) = TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
35330-22031 |
US $61.30 |
||
|
35330
|
35330
35330-22032 Strainer Assy, Valve Body Oil[12.1998 - 10.2000] GX100..4FC PNC 35106 (FIG 35-03) = TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
35330-22032 |
US $76.61 |
||
|
35404G
|
35404G
35404-22010
Plate Sub-Assy, Valve Body, No.2
[08.1998 -] GX100..4FC |
35404-22010 |
— | ||
|
35406A
|
35406A
35406-22030 Plate Sub-Assy, Valve Body[08.1998 -] GX100..4FC |
35406-22030 |
US $65.52 |
||
|
35409
|
35409
35409-22030 Spring Sub-Assy, Manual Detent[08.1998 - 10.2000] GX100..4FC..GD |
35409-22030 |
US $7.28 |
||
|
35409
|
35409
35409-30010 Spring Sub-Assy, Manual Detent[09.1996 - 10.1996] GX100,LX100..4FC |
35409-30010 |
US $14.85 |
||
|
35410
|
35410
35410-22730 Body Assy, Transmission Valve[08.1998 - 10.2000] GX100..4FC..GD |
35410-22730 |
US $1,557.92 |
||
|
35418
|
35418
35418-24010 Valve, Manual[08.1998 - 10.2000] GX10#,JZX100,105..4FC |
35418-24010 |
US $49.36 |
||
|
35418
|
35418
35418-30060 Valve, Manual[09.1996 - 08.1998] GX100..4FC |
35418-30060 |
US $32.18 |
||
|
35419
|
35419
35419-22010 Valve, Check, No.1[09.1996 - 08.1998] GX100,LX100..4FC |
35419-22010 |
US $11.05 |
||
|
35419
|
35419
35419-50010 Valve, Check, No.1[08.1998 -] GX100..4FC |
35419-50010 |
US $7.13 |
||
|
35419A
|
35419A
90501-09093 Spring, Compression (For Check Valve)[08.1998 - 10.2000] GX10#,JZX10#..ATM |
90501-09093 |
US $1.31 |
||
|
35419A
|
35419A
90501-13003
Spring, Compression (For Check Valve)
[09.1996 - 08.1998] GX100,LX100..4FC |
90501-13003 |
— | ||
|
35420D
|
35420D
35496-22030 Ball (For Lower Valve Body)[08.1998 - 10.2000] GX100..4FC 外径＝６．３５，ラバー |
35496-22030 |
US $4.54 |
||
|
35421A
|
35421A
90501-20063 Spring Sub-Assy, C-1 Accumulator[09.1996 - 08.1998] GX100..4FC |
90501-20063 |
US $3.68 |
||
|
35421A
|
35421A
90501-20162 Spring, Compression (For Accumulator Piston No.1)[12.1998 -] GX100..4FC |
90501-20162 |
US $1.60 |
||
|
35421A
|
35421A
90501-21028
Spring, Compression (For Accumulator Piston No.1)
[08.1998 - 12.1998] GX100..4FC |
90501-21028 |
— | ||
| replacement | |||||
|
35421A
|
35421A
90501-20162 Spring, Compression (For Accumulator Piston No.1)[08.1998 - 12.1998] GX100..4FC |
90501-20162 |
US $1.60 |
||
|
35421G
|
35421G
90501-26092 Spring, Compression (For Accumulator Piston No.2)[12.1998 -] GX100..4FC |
90501-26092 |
US $3.93 |
||
|
35421G
|
35421G
90501-27016 Spring, Compression (For Accumulator Piston No.1)[09.1996 - 08.1998] GX100..4FC |
90501-27016 |
US $3.93 |
||
|
35421G
|
35421G
90501-28030 Spring, Compression (For Accumulator Piston No.2)[08.1998 - 12.1998] GX100..4FC |
90501-28030 |
US $3.93 |
||
|
35421Q
|
35421Q
90501-22033 Spring, Compression (For Accumulator Piston No.3)[09.1996 - 08.1998] GX100..4FC |
90501-22033 |
US $3.49 |
||
|
35421Q
|
35421Q
90501-23147 Spring, Compression (For Accumulator Piston No.3)[08.1998 -] GX100..4FC |
90501-23147 |
US $3.93 |
||
|
35423
|
35423
35421-26010 Piston, Accumulator, No.1[08.1998 - 10.2000] GX100..4FC |
35421-26010 |
US $16.45 |
||
|
35423B
|
35423B
90301-23010 Ring (For Accumulator Piston No.1)[08.1998 - 10.2000] GX10#,JZX10#..ATM 上側 |
90301-23010 |
from US $1.79 |
||
|
35423B
|
35423B
90301-26012 Ring (For Accumulator Piston No.1)[08.1998 - 10.2000] GX100..4FC 下側 |
90301-26012 |
US $1.49 |
||
|
35424C
|
35424C
35421-22030 Piston, Accumulator, No.3[08.1998 -] GX100..4FC |
35421-22030 |
US $15.43 |
||
|
35424E
|
35424E
90301-21012 Ring (For Accumulator Piston No.3)[08.1998 -] GX100..4FC 上側 |
90301-21012 |
from US $1.49 |
||
|
35424E
|
35424E
90301-29011 Ring (For Accumulator Piston No.1)[08.1998 -] GX100..4FC 下側 |
90301-29011 |
from US $2.62 |
||
|
35425A
|
35425A
35441-30010 Piston, Accumulator, No.2[08.1998 - 10.2000] GX100..4FC |
35441-30010 |
US $15 |
||
|
35425C
|
35425C
90301-18010 Ring (For Accumulator Piston No.2)[08.1998 - 10.2000] GX100..4FC 上側 |
90301-18010 |
US $3.84 |
||
|
35425C
|
35425C
90301-26012 Ring (For Accumulator Piston No.1)[08.1998 - 10.2000] GX100..4FC 下側 |
90301-26012 |
US $1.49 |
||
|
35441C
|
35441C
35441-50030 Strainer, Solenoid Oil[08.1998 - 10.2000] JZX100..TOUS;GX100,JZX101..4FC |
35441-50030 |
US $6.46 |
||
|
35473
|
35473
35473-22010 Cover, Transmission Valve Body[09.1996 - 08.1998] GX100,LX100..4FC |
35473-22010 |
US $9.61 |
||
|
35473
|
35473
35473-22020 Cover, Transmission Valve Body[08.1998 -] GX100..4FC |
35473-22020 |
US $6.26 |
||
|
35481B
|
35481B
35481-22020 Clamp, Valve Body Wire Harness[08.1998 -] GX100..4FC |
35481-22020 |
US $3.64 |
||
|
35482B
|
35482B
35482-22020 Clamp, Temperature Sensor[08.1998 -] GX100..4FC |
35482-22020 |
US $15.58 |
||
|
35487B
|
35487B
35487-30010 Ball, Check, No.4[09.1996 -] GX100,LX100..4FC |
35487-30010 |
US $3.86 |
||
|
35487C
|
35487C
90504-05006 Spring, Compression (For Check Ball)[09.1996 -] GX100,LX100..4FC |
90504-05006 |
US $1.25 |
||
|
35495B
|
35495B
35495-22020 Ball (For Transfer Upper Valve Body)[08.1998 -] GX100..4FC |
35495-22020 |
US $4.66 |
||
|
35599
|
35599
35599-22030 Cover, Manual Detent Spring[08.1998 - 10.2000] GX100..4FC..GD |
35599-22030 |
US $6.12 |
||
|
35599
|
35599
35599-30010 Cover, Manual Detent Spring[09.1996 - 08.1998] GX100,LX100..4FC |
35599-30010 |
US $5.39 |
||
|
35892
|
35892
35892-22010 Tube, Overdrive Brake[08.1998 -] GX100..4FC |
35892-22010 |
US $8.59 |
||
|
35892
|
35892
35892-26010 Tube, Overdrive Brake[03.1997 - 08.1998] GX100..4FC |
35892-26010 |
US $15.58 |
||
|
35892
|
35892
35892-30030 Tube, Overdrive Brake[09.1996 - 03.1997] GX100..4FC |
35892-30030 |
US $15.29 |
||
| replacement | |||||
|
35892
|
35892
35892-26010 Tube, Overdrive Brake[09.1996 - 03.1997] GX100..4FC |
35892-26010 |
US $15.58 |
||
|
9010506030
|
9010506030
90105-06030 New Genuine Part |
90105-06030 |
US $1.60 |
||
| replacement | |||||
|
9010506030
|
9010506030
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9010506053
|
9010506053
90105-06053 Bolt(For Sensor Rotor Adapter) |
90105-06053 |
US $1.25 |
||
