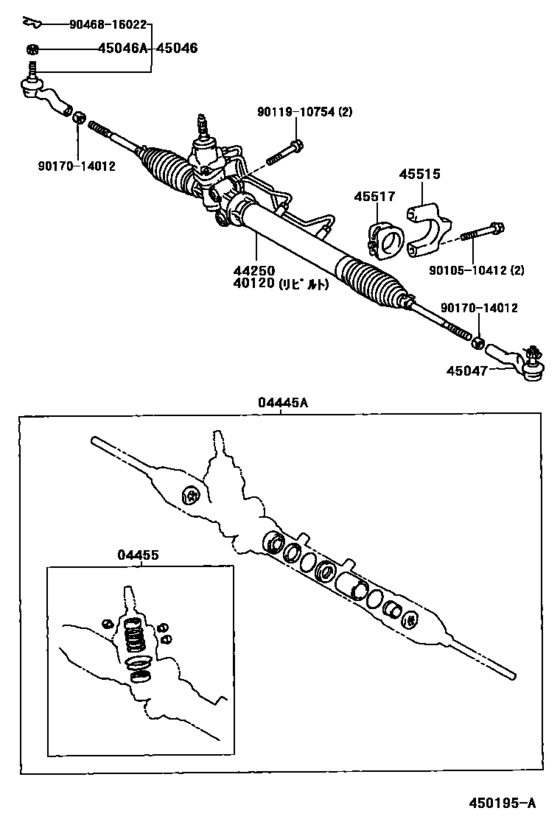

Front Steering Gear & Link ([09.1996 - ] (9609- )GX100) Diagram Toyota MARK 2
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- GX100
- grade
- TOU
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 09.1996
- To
- 10.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-22250 Gasket Kit, Power Steering Gear(For Rack & Pinion)[09.1996 -] GX100,LX100 |
04445-22250 |
US $82.99 |
||
|
04455
|
04455
04455-22130 Gasket Kit, Power Steering Control Valve Overhole[09.1996 -] GX10#,LX100 |
04455-22130 |
US $41.79 |
||
| replacement | |||||
|
04455
|
04455
04455-51010 Gasket Kit, Power Steering Control Valve Overhole[09.1996 -] GX10#,LX100 |
04455-51010 |
US $43.68 |
||
|
40120
|
40120
40120-22390 Gear Assy,power Steering,rebuilt[09.1996 - 08.1998] GX100 TOYODA KOKI |
40120-22390 |
US $1,009.01 |
||
|
40120
|
40120
40120-22420 Gear Assy,power Steering,rebuilt[08.1998 -] GX100 TOYODA KOKI |
40120-22420 |
US $1,009.01 |
||
|
44250
|
44250
44250-22390 Gear Assy, Power Steering(For Rack & Pinion)[09.1996 - 08.1998] GX100 |
44250-22390 |
from US $1,233.75 |
||
|
44250
|
44250
44250-22420 Gear Assy, Power Steering(For Rack & Pinion)[08.1998 -] GX100 |
44250-22420 |
from US $1,438.53 |
||
|
45046
|
45046
45046-29285 End Sub-Assy, Tie Rod, Rh[09.1996 -] GX100,JZX100,101,LX100 |
45046-29285 |
US $62.33 |
||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[09.1996 -] GX10#,JZX10#,LX100 |
90171-12002 |
from US $1.13 |
||
|
45047
|
45047
45046-29285 End Sub-Assy, Tie Rod, Rh[09.1996 -] GX100,JZX100,101,LX100 |
45046-29285 |
US $62.33 |
||
|
45515
|
45515
45515-22120 Bracket, Steering Rack Housing, No.2[09.1996 -] GX100,JZX100,101,LX100 |
45515-22120 |
US $33.90 |
||
|
45517
|
45517
45517-30020 Grommet, Steering Rack Housing, No.2[09.1996 - 08.1998] GX100,JZX100,101,LX100 |
45517-30020 |
US $13.44 |
||
|
45517
|
45517
45517-51010 Grommet, Steering Rack Housing, No.2[08.1998 -] GX100,JZX100,101,LX100 |
45517-51010 |
from US $12.01 |
||
|
9010510412
|
9010510412
90105-10412 Bolt(For Front Suspension Upper Arm Rh) |
90105-10412 |
US $4.66 |
||
|
9011910754
|
9011910754
90119-10754 New Genuine Part |
90119-10754 |
US $5.56 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.07 |
||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.61 |
||
