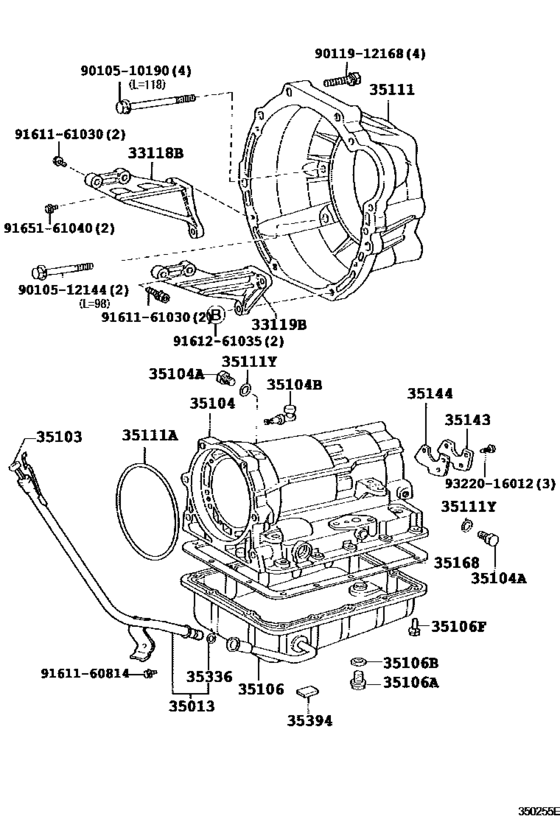

Transmission Case & Oil Pan (Atm) ([09.1996 - 08.1998] A42DE (9609-9808)GX100..4FC) Diagram Toyota MARK 2
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- GX100
- grade
- TOU
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 09.1996
- To
- 10.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-22051 Plate, Stiffener, Rh(Mtm)[09.1996 -] GX10#..4FC |
33118-22051 |
US $31.89 |
||
|
33119B
|
33119B
33119-22042 Plate, Stiffener, Lh(Mtm)[09.1996 -] GX10#..4FC |
33119-22042 |
US $29.99 |
||
|
35013
|
35013
35013-22530 Tube Sub-Assy, Transmission Oil Filler[08.1998 -] GX100..4FC |
35013-22530 |
US $32.91 |
||
|
35013
|
35013
35013-30360 Tube Sub-Assy, Transmission Oil Filler[09.1996 - 08.1998] GX100..4FC |
35013-30360 |
US $31.89 |
||
|
35103
|
35103
35103-22420 Gage Sub-Assy, Transmission Oil Level[08.1998 -] GX100..4FC |
35103-22420 |
US $15.58 |
||
|
35103
|
35103
35103-30460 Gage Sub-Assy, Transmission Oil Level[09.1996 - 08.1998] GX100..4FC |
35103-30460 |
US $18.64 |
||
|
35104
|
35104
35104-22060 Case Sub-Assy, Automatic Transmission[08.1998 - 10.2000] GX100..4FC |
35104-22060 |
US $374.19 |
||
|
35104
|
35104
35104-26021 Case Sub-Assy, Automatic Transmission[09.1996 - 08.1998] GX100,LX100..4FC |
35104-26021 |
US $981.34 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[09.1996 - 08.1998] JZX105 右側（リア） 又は 左側; GX100,JZX100,101,LX100..4FC |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[08.1998 - 10.2000] GX10#,JZX10#..ATM ＮＯ．１ |
90930-03098 |
from US $7.20 |
||
|
35104B
|
35104B
90930-03108 Plug, Breather, No.1 (Atm)[09.1996 - 08.1998] GX100,LX100..4FC |
90930-03108 |
US $19.70 |
||
|
35104B
|
35104B
90930-03149 Plug Sub-Assy, Breather(For Transmission)[08.1998 - 10.2000] GX100..4FC |
90930-03149 |
from US $3.94 |
||
|
35106
|
35106
35106-22100
Pan Sub-Assy, Automatic Transmission Oil
[08.1998 - 12.1998] GX100..4FC ＴＹＰＥ Ａ：イラスト参照 |
35106-22100 |
— | ||
| replacement | |||||
|
35106
|
35106
35106-53010 Pan Sub-Assy, Automatic Transmission Oil[08.1998 - 12.1998] GX100..4FC ＴＹＰＥ Ａ：イラスト参照 |
35106-53010 |
US $84.45 |
||
|
35106
|
35106
35106-22101 Pan Sub-Assy, Automatic Transmission Oil[12.1998 - 10.2000] GX100..4FC ＴＹＰＥ Ｂ：イラスト参照 |
35106-22101 |
US $93.18 |
||
|
35106
|
35106
35106-28030
Pan Sub-Assy, Automatic Transmission Oil
[09.1996 - 08.1998] GX100..4FC |
35106-28030 |
— | ||
| replacement | |||||
|
35106
|
35106
35106-30051 Pan Sub-Assy, Automatic Transmission Oil[09.1996 - 08.1998] GX100..4FC |
35106-30051 |
US $103.32 |
||
|
35106A
|
35106A
90341-10006
Plug (For Transfer Oil Pan)
[09.1996 - 08.1998] GX100,LX100..4FC |
90341-10006 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[09.1996 - 08.1998] GX100,LX100..4FC |
90341-10011 |
from US $1.79 |
||
|
35106A
|
35106A
90341-10018
Plug Sub-Assy, Drain (Atm)
[08.1998 - 10.2000] GX10#,JZX10#..ATM |
90341-10018 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.1998 - 10.2000] GX10#,JZX10#..ATM |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[09.1996 - 05.1997] GX100,JZX100,101,LX100..4FC |
35178-30010 |
from US $1.77 |
||
|
35106B
|
35106B
35178-50010
Gasket, Drain Plug (Atm)
[08.1998 - 10.2000] GX10#,JZX10#..ATM |
35178-50010 |
— | ||
| replacement | |||||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.1998 - 10.2000] GX10#,JZX10#..ATM |
35178-30010 |
from US $1.77 |
||
|
35106F
|
35106F
90119-06117
Bolt (For Automatic Transmission Oil Pan)
[09.1996 - 10.2000] GX100,LX100..4FC |
90119-06117 |
— | ||
| replacement | |||||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[09.1996 - 10.2000] GX100,LX100..4FC |
90119-06173 |
from US $0.76 |
||
|
35111
|
35111
35111-22090 Housing, Automatic Transmission[08.1998 - 10.2000] GX100..4FC |
35111-22090 |
US $661.02 |
||
|
35111
|
35111
35111-24010 Housing, Automatic Transmission[09.1996 - 08.1998] GX100..4FC |
35111-24010 |
US $661.02 |
||
|
35111A
|
35111A
90301-99054 Ring, O (For Automatic Transmission Housing)[09.1996 -] GX100,LX100..4FC |
90301-99054 |
US $13.63 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[09.1996 - 10.2000] GX10#,JZX10#,LX100..4FC |
90301-06196 |
from US $2.24 |
||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[09.1996 -] GX100,LX100..4FC |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[09.1996 -] GX100,LX100..4FC |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[09.1996 -] GX100,LX100..4FC |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[09.1996 -] GX10#,JZX10#,LX100..ATM |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[09.1996 - 10.2000] GX100..4FC |
35394-30011 |
from US $5.62 |
||
|
9010510190
|
9010510190
90105-10190 New Genuine Part |
90105-10190 |
US $3.20 |
||
|
9010512144
|
9010512144
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.01 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
US $2.15 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
