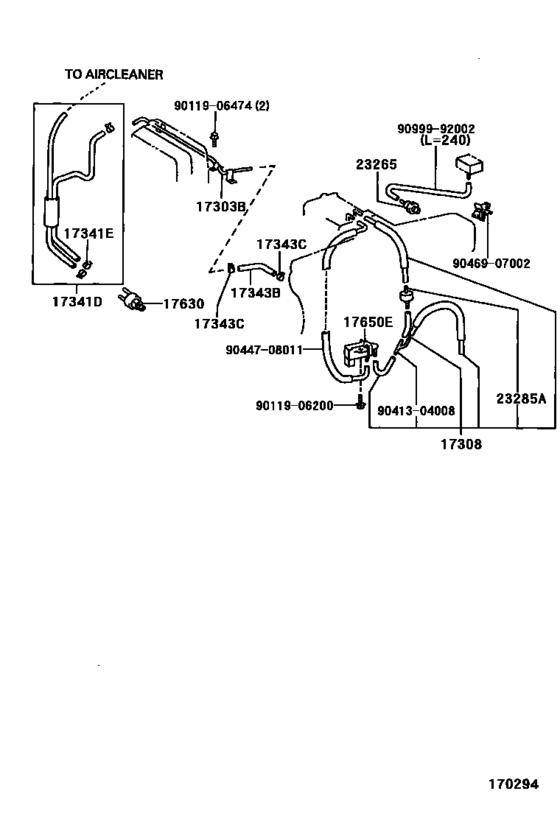

Vacuum Piping ([09.1996 - 08.1998] (9609-9808)1GFE) Diagram Toyota MARK 2
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- GX100
- grade
- TOU
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 09.1996
- To
- 10.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-70080 Pipe Sub-Assy, Air, No.1[09.1996 - 08.1998] 1GFE..GX100 |
17303-70080 |
US $39.31 |
||
|
17308
|
17308
17308-70030 Hose Sub-Assy, Vacuum(For Idle-Up)[09.1996 - 08.1998] 1GFE..GX100 |
17308-70030 |
US $39.46 |
||
|
17341D
|
17341D
17341-70250 Hose, No.1(For Idle-Up)[09.1996 - 08.1998] 1GFE..GX100 |
17341-70250 |
US $18.20 |
||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[09.1996 - 08.1998] 1GFE..GX100 |
96132-51000 |
from US $1.48 |
||
|
17343B
|
17343B
17343-70050
Hose, No.3(For Idle-Up)
[09.1996 - 08.1998] 1GFE..GX100 |
17343-70050 |
— | ||
|
17343C
|
17343C
90467-10106
Clip, No.1(For Idle-Up Hose)
[09.1996 - 08.1998] 1GFE..GX100 |
90467-10106 |
— | ||
| replacement | |||||
|
17343C
|
17343C
96132-51000 Clip Or Clamp(For Ventilation Hose)[09.1996 - 08.1998] 1GFE..GX100 |
96132-51000 |
from US $1.48 |
||
|
17630
|
17630
17630-70010 Valve Assy, Air Control[09.1996 - 08.1998] 1GFE..GX100 |
17630-70010 |
US $202.38 |
||
|
17650E
|
17650E
90910-12120
Valve, Vacuum Switching
[09.1996 - 08.1998] 1GFE..GX100 |
90910-12120 |
— | ||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[09.1996 -] 1GFE..GX10# |
90917-11022 |
from US $17.14 |
||
|
23285A
|
23285A
90917-10080
Filter, Gas, No.1
[09.1996 - 08.1998] 1GFE..GX100 |
90917-10080 |
— | ||
|
9011906200
|
9011906200
90119-06200 New Genuine Part |
90119-06200 |
from US $2.91 |
||
|
9011906474
|
9011906474
90119-06474 New Genuine Part |
90119-06474 |
US $0.87 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9044708011
|
9044708011
90447-08011 Hose, Fuel, No.4 (For Charcoal Canister) |
90447-08011 |
US $9.03 |
||
|
9046907002
|
9046907002
90469-07002 Clamp No.2 (For Windseield Washer) |
90469-07002 |
from US $2.50 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
