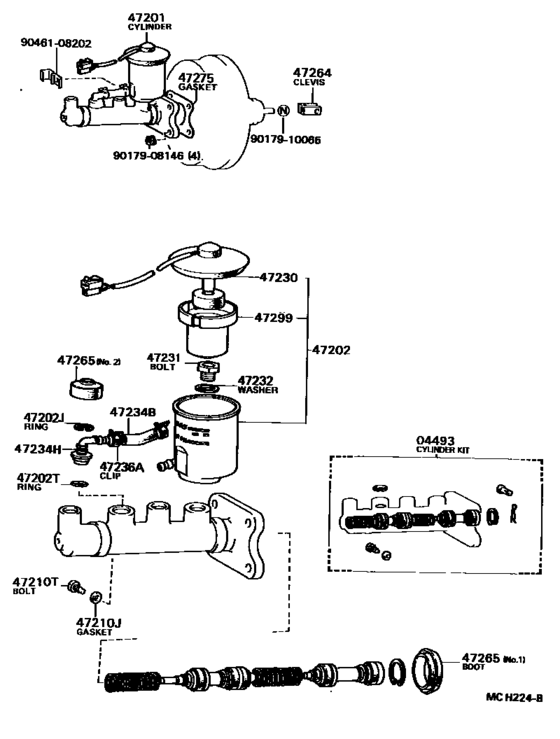

Brake Master Cylinder ([10.1988 - ] (8810- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-22130
Cylinder Kit, Brake Master
[10.1988 - 04.1997] GX70,YX7# |
04493-22130 |
— | ||
|
47201
|
47201
47201-22450
Cylinder Sub-Assy, Brake Master
[10.1988 - 04.1997] GX70,YX7# |
47201-22450 |
— | ||
|
47202
|
47202
47202-22220 Reservoir Sub-Assy, Brake Master Cylinder[10.1988 - 04.1997] GX70,LX76,YX7# |
47202-22220 |
US $154.34 |
||
|
47202J
|
47202J
96151-02000 Ring, Snap (For Low Coast Shift Control Valve)[10.1988 - 04.1997] GX70,LX76,YX7# |
96151-02000 |
US $1.27 |
||
|
47202T
|
47202T
90301-14001 Ring, O(For Clutch Master Cylinder Union)[10.1988 - 04.1997] GX70,LX76,YX7# |
90301-14001 |
US $3.67 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[10.1988 - 04.1997] GX70,LX76,YX7# |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[10.1988 - 04.1997] GX70,LX76,YX7# |
90109-06008 |
US $0.44 |
||
|
47230
|
47230
84460-20051
Cap Assy, Brake Master Cylinder Reservoir Filler
[10.1988 - 04.1997] GX70,LX76,YX7# |
84460-20051 |
— | ||
| replacement | |||||
|
47230
|
47230
84460-12011 Cap Assy, Brake Master Cylinder Reservoir Filler[10.1988 - 04.1997] GX70,LX76,YX7# |
84460-12011 |
US $83.64 |
||
|
47231
|
47231
47231-22010 Bolt, Brake Master Cylinder Reservoir Set[10.1988 - 04.1997] GX70,LX76,YX7# |
47231-22010 |
US $4.66 |
||
|
47232
|
47232
47232-30010 Washer, Reservoir Set Bolt[10.1988 - 04.1997] GX70,LX76,YX7# |
47232-30010 |
US $3.94 |
||
|
47234B
|
47234B
47234-20010 Tube, Reservoir, No.1[10.1988 - 04.1997] GX70,LX76,YX7# |
47234-20010 |
US $8.01 |
||
|
47234H
|
47234H
90407-10003
Union, Reservoir(For Brake Master Cylinder Side)
[10.1988 - 04.1997] GX70,LX76,YX7# |
90407-10003 |
— | ||
| replacement | |||||
|
47234H
|
47234H
90407-10004
Union, Reservoir(For Brake Master Cylinder Side)
[10.1988 - 04.1997] GX70,LX76,YX7# |
90407-10004 |
— | ||
|
47236A
|
47236A
90467-16001
Clamp, Oil Cooler Hose
[10.1988 - 04.1997] GX70,LX76,YX7# |
90467-16001 |
— | ||
| replacement | |||||
|
47236A
|
47236A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[10.1988 - 04.1997] GX70,LX76,YX7# |
96133-41500 |
from US $2.32 |
||
|
47264
|
47264
47264-22010 Clevis, Master Cylinder Push Rod[10.1988 - 04.1997] GX70,LX76,YX7# |
47264-22010 |
US $6.12 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[10.1988 - 04.1997] GX70,LX76,YX7# ＮＯ．１ |
47265-20050 |
from US $4.64 |
||
|
47265
|
47265
47265-20060
Boot, Reservoir, No.1(For Brake Master Cylinder Side)
[10.1988 - 04.1997] GX70,LX76,YX7# ＮＯ．２ |
47265-20060 |
— | ||
|
47275
|
47275
47275-24010 Gasket, Brake Master Cylinder[10.1988 - 04.1997] GX70,LX76,YX7# |
47275-24010 |
from US $1.29 |
||
|
47299
|
47299
47299-22030 Strainer, Brake Master Cylinder Reservoir[10.1988 - 04.1997] GX70,LX76,YX7# |
47299-22030 |
US $7.86 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9046108202
|
9046108202
90461-08202 Clamp(For Brake Master Cylinder) |
90461-08202 |
US $8.30 |
||
