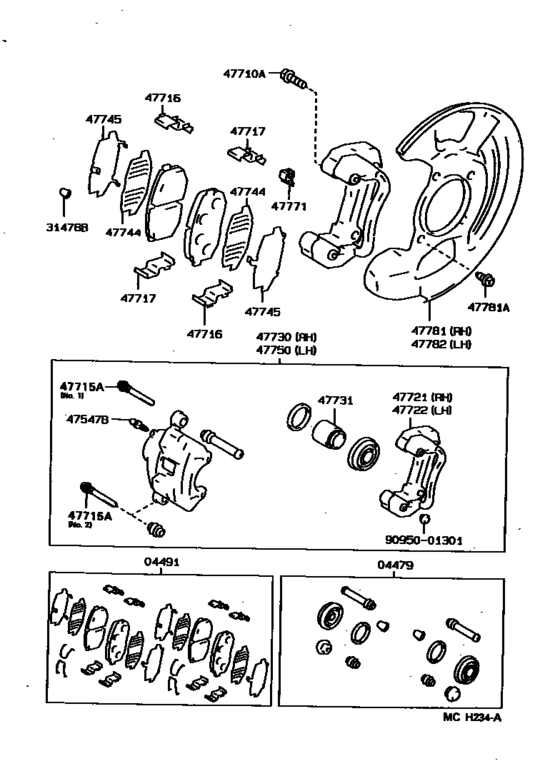

Front Disc Brake Caliper & Dust Cover ([10.1988 - ] (8810- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-22010 Cylinder Kit, Disc Brake, Front[10.1988 - 12.1994] GX70,LX76,YX7# |
04479-22010 |
US $60.48 |
||
|
04479
|
04479
04479-22011 Cylinder Kit, Disc Brake, Front[12.1994 - 04.1997] GX70,YX78 |
04479-22011 |
US $52.42 |
||
|
04491
|
04491
04491-22162 Pad Kit, Disc Brake, Front[10.1988 - 02.1993] GX70,LX76,YX76 |
04491-22162 |
US $110.66 |
||
| replacement | |||||
|
04491
|
04491
04465-22140 Pad Kit, Disc Brake, Front[10.1988 - 02.1993] GX70,LX76,YX76 |
04465-22140 |
US $157.44 |
||
|
04491
|
04491
04491-22380 Pad Kit, Disc Brake, Front[02.1993 - 05.1995] GX70,LX76,YX78 |
04491-22380 |
US $163.07 |
||
| replacement | |||||
|
04491
|
04491
04465-22140 Pad Kit, Disc Brake, Front[02.1993 - 05.1995] GX70,LX76,YX78 |
04465-22140 |
US $157.44 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[10.1988 - 04.1997] GX70,LX76,YX7# |
31478-30010 |
from US $1.60 |
||
|
47547B
|
47547B
47547-12040 Plug, Bleeder(For Front Disc Brake)[10.1988 - 04.1997] GX70,LX76,YX7# |
47547-12040 |
US $5.38 |
||
|
47710A
|
47710A
90119-12058 Bolt, Hexagon(For Front Disc Brake Caliper)[10.1988 - 04.1997] GX70,LX76,YX7# ＊１２−１．２５ＰＸ３１−２０ |
90119-12058 |
from US $2.07 |
||
|
47715A
|
47715A
47715-22010 Pin, Main(For Front Disc Brake Cylinder Slide)[10.1988 - 04.1997] GX70,LX76,YX7# |
47715-22010 |
from US $9.26 |
||
|
47716
|
47716
47716-22010 Plate, Pad Support, No.1(For Front Disc Brake)[10.1988 - 04.1997] GX70,LX76,YX7# |
47716-22010 |
from US $2.87 |
||
|
47717
|
47717
47717-22010 Plate, Pad Support, No.2(For Front Disc Brake)[10.1988 - 04.1997] GX70,LX76,YX7# |
47717-22010 |
from US $2.83 |
||
|
47721
|
47721
47721-22050 Mounting, Front Disc Brake Cylinder, Rh[10.1988 - 04.1997] GX70,LX76,YX7# |
47721-22050 |
US $131.04 |
||
|
47722
|
47722
47722-22030 Mounting, Front Disc Brake Cylinder, Lh[10.1988 - 04.1997] GX70,LX76,YX7# |
47722-22030 |
US $131.04 |
||
|
47730
|
47730
47730-22150 Cylinder Assy, Front Disc Brake, Rh[10.1988 - 12.1994] GX70,LX76,YX7# |
47730-22150 |
US $607.15 |
||
| replacement | |||||
|
47730
|
47730
47730-22151 Cylinder Assy, Front Disc Brake, Rh[10.1988 - 12.1994] GX70,LX76,YX7# |
47730-22151 |
US $604.24 |
||
|
47730
|
47730
47730-22151 Cylinder Assy, Front Disc Brake, Rh[12.1994 - 04.1997] GX70,YX78 |
47730-22151 |
US $604.24 |
||
|
47731
|
47731
47731-22010 Piston, Front Disc Brake[10.1988 - 04.1997] GX70,LX76,YX7# |
47731-22010 |
US $49.06 |
||
|
47744
|
47744
47744-22071 Shim, Anti-Squeal, No.1(For Front Disc Brake)[10.1988 - 02.1993] GX70,LX76,YX76 |
47744-22071 |
US $3.49 |
||
|
47745
|
47745
47745-22041 Shim, Anti-Squeal, No.2(For Front Disc Brake)[10.1988 - 02.1993] GX70,LX76,YX76 |
47745-22041 |
US $3.49 |
||
|
47750
|
47750
47750-22150 Cylinder Assy, Disc Brake, Lh[10.1988 - 12.1994] GX70,LX76,YX7# |
47750-22150 |
US $607.15 |
||
| replacement | |||||
|
47750
|
47750
47750-22151 Cylinder Assy, Disc Brake, Lh[10.1988 - 12.1994] GX70,LX76,YX7# |
47750-22151 |
US $604.24 |
||
|
47750
|
47750
47750-22151 Cylinder Assy, Disc Brake, Lh[12.1994 - 04.1997] GX70,YX78 |
47750-22151 |
US $604.24 |
||
|
47771
|
47771
47771-22030 Plate, Pad Wear Indicator, No.1[02.1993 - 04.1997] GX70,LX76,YX78 |
47771-22030 |
from US $2.51 |
||
|
47781
|
47781
47781-24010 Cover, Disc Brake Dust, Front Rh[10.1988 - 04.1997] GX70,LX76,YX7# |
47781-24010 |
US $18.64 |
||
|
47781A
|
47781A
90101-08341 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[10.1988 - 04.1997] GX70,LX76,YX7# |
90101-08341 |
US $3.23 |
||
|
47782
|
47782
47782-24010 Cover, Disc Brake Dust, Front Lh[10.1988 - 04.1997] GX70,LX76,YX7# |
47782-24010 |
US $18.64 |
||
|
9095001301
|
9095001301
90950-01301 Plug, Hole(For Rear Disc Brake Cylinder) |
90950-01301 |
from US $1.09 |
||
