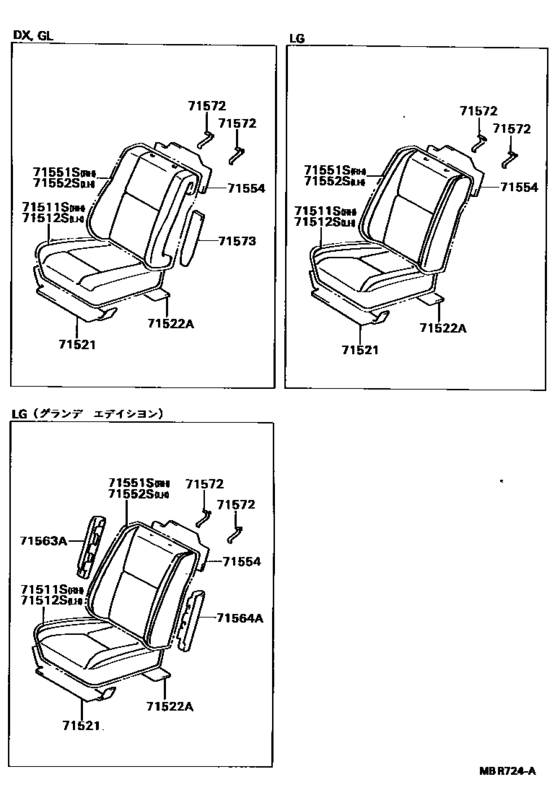

Front Seat & Seat Track ([10.1988 - ] (8810- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71511S
|
71511S
71511-23030 Pad, Front Seat Cushion, Rh(For Separate Type)[08.1990 - 04.1997] GX70 ｸﾞﾗﾝﾃﾞ ｴﾃﾞｲｼﾖﾝ |
71511-23030 |
US $149.97 |
||
|
71511S
|
71511S
71511-91612 Pad, Front Seat Cushion, Rh(For Separate Type)[10.1988 - 04.1997] GX70 |
71511-91612 |
US $187.82 |
||
|
71512S
|
71512S
71511-23030 Pad, Front Seat Cushion, Rh(For Separate Type)[08.1990 - 04.1997] GX70 ｸﾞﾗﾝﾃﾞ ｴﾃﾞｲｼﾖﾝ |
71511-23030 |
US $149.97 |
||
|
71512S
|
71512S
71511-91612 Pad, Front Seat Cushion, Rh(For Separate Type)[10.1988 - 04.1997] GX70 |
71511-91612 |
US $187.82 |
||
|
71521
|
71521
71521-22150 Pad, Front Seat Cushion Silencer, A[10.1988 - 04.1997] GX70,LX76,YX7# |
71521-22150 |
US $12.67 |
||
|
71522A
|
71522A
71522-22110 Pad, Front Seat Cushion Silencer, B[10.1988 - 04.1997] GX70,LX76,YX7# |
71522-22110 |
US $4.95 |
||
|
71551S
|
71551S
71551-23050 Pad, Front Seat Back, Rh(For Separate Type)[08.1990 - 04.1997] GX70 ｸﾞﾗﾝﾃﾞ ｴﾃﾞｲｼﾖﾝ |
71551-23050 |
US $123.76 |
||
|
71551S
|
71551S
71551-91609 Pad, Front Seat Back, Rh(For Separate Type)[10.1988 - 04.1997] GX70 |
71551-91609 |
US $187.82 |
||
|
71552S
|
71552S
71551-23050 Pad, Front Seat Back, Rh(For Separate Type)[08.1990 - 04.1997] GX70 ｸﾞﾗﾝﾃﾞ ｴﾃﾞｲｼﾖﾝ |
71551-23050 |
US $123.76 |
||
|
71552S
|
71552S
71551-91609 Pad, Front Seat Back, Rh(For Separate Type)[10.1988 - 04.1997] GX70 |
71551-91609 |
US $187.82 |
||
|
71554
|
71554
71554-22020 Pad, Front Seat Back, C[10.1988 - 07.1991] GX70,LX76,YX76 |
71554-22020 |
US $24.46 |
||
|
71554
|
71554
71554-23010 Pad, Front Seat Back, C[07.1991 - 04.1997] GX70,LX76,YX7# |
71554-23010 |
US $24.46 |
||
|
71563A
|
71563A
71563-22140 Pad, Front Seat Back Side, Rh[08.1990 - 04.1997] GX70 |
71563-22140 |
US $14.12 |
||
|
71564A
|
71564A
71564-22160 Pad, Front Seat Back, Side[08.1990 - 04.1997] GX70 |
71564-22160 |
US $14.12 |
||
|
71572
|
71572
71572-30040 Pad, Front Seat Back Silencer, B[10.1988 - 04.1997] GX70,LX76,YX7# |
71572-30040 |
US $2.18 |
