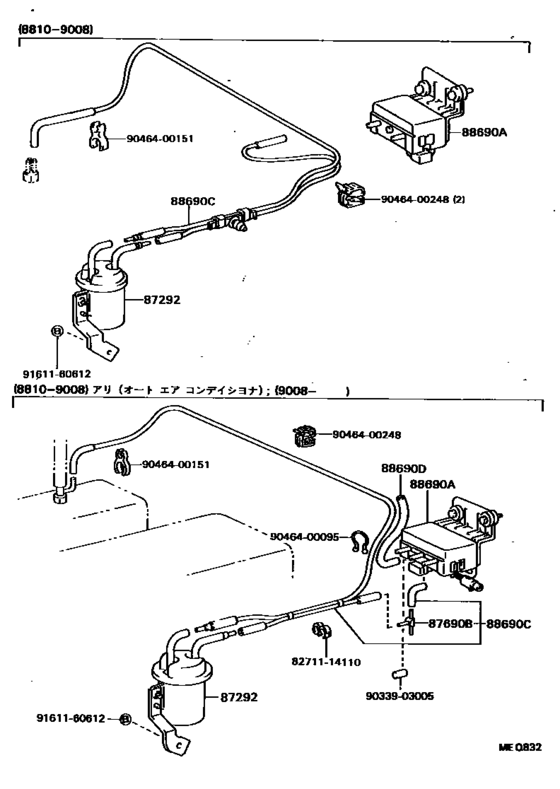

Heating & Air Conditioning - Vacuum Piping ([10.1988 - ] ﾋ-ﾀﾀﾞﾝﾊﾟ ｺﾝﾄﾛ-ﾙ (8810- )GX70) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87292
|
87292
87292-22040
Tank, Vacuum
[10.1988 - 04.1997] GX70 |
87292-22040 |
— | ||
|
87690B
|
87690B
90413-03001 Way, 3[10.1988 - 08.1990] GX70 |
90413-03001 |
US $4.08 |
||
|
88690A
|
88690A
88690-22530
Valve Assy, Combination
[10.1988 - 08.1990] GX70 |
88690-22530 |
— | ||
|
88690A
|
88690A
88690-22610
Valve Assy, Combination
[02.1993 - 04.1997] GX70 |
88690-22610 |
— | ||
|
88690C
|
88690C
88689-22130
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[10.1988 - 08.1990] GX70 ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),L=100 |
88689-22130 |
— | ||
|
88690C
|
88690C
88689-22190
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[11.1988 - 08.1990] GX70 TANK TO VALVE,ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
88689-22190 |
— | ||
| replacement | |||||
|
88690C
|
88690C
90445-06067
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[11.1988 - 08.1990] GX70 TANK TO VALVE,ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
90445-06067 |
— | ||
|
88690C
|
88690C
88807-22300
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[10.1988 - 11.1988] GX70 ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),L=800,TANK TO VALVE |
88807-22300 |
— | ||
|
88690C
|
88690C
88807-22310
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[10.1988 - 12.1988] GX70 ｱﾘ(ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),L=760,TANK TO VALVE |
88807-22310 |
— | ||
|
88690C
|
88690C
88807-22311
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[12.1988 - 08.1990] GX70 ｱﾘ(ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),L=940,TANK TO VALVE |
88807-22311 |
— | ||
|
88690D
|
88690D
88689-22120
Hose, Vacuum, No.2 (For Heater Or Air Conditioner)
[10.1988 - 08.1990] GX70 |
88689-22120 |
— | ||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $3.05 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.77 |
||
|
9046400095
|
9046400095
90464-00095 New Genuine Part |
90464-00095 |
US $1.31 |
||
|
9046400151
|
9046400151
90464-00151
New Genuine Part
|
90464-00151 |
— | ||
|
9046400248
|
9046400248
90464-00248 New Genuine Part |
90464-00248 |
US $1.89 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
