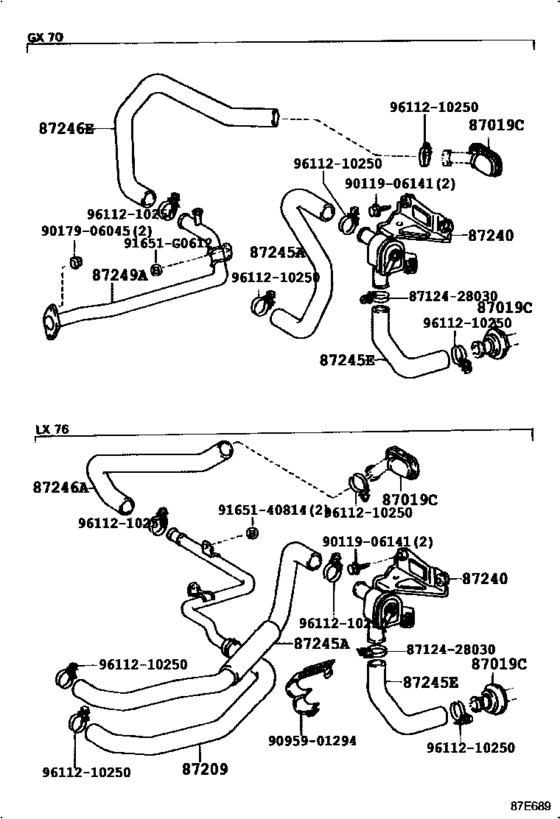

Heating & Air Conditioning - Water Piping ([10.1988 - ] (8810- )GX70,LX76) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01272
Grommet, Heater Hose
[10.1988 - 08.1990] GX70,LX76,YX76 INLET |
90480-01272 |
— | ||
|
87019C
|
87019C
90480-36011
Grommet, Heater Hose
[10.1988 - 08.1990] GX70,LX76,YX76 OUTLET |
90480-36011 |
— | ||
|
87240
|
87240
87240-22261 Valve Assy, Heater Water[10.1988 - 08.1990] GX70,LX76,YX76 |
87240-22261 |
US $43.53 |
||
|
87240
|
87240
87240-22270
Valve Assy, Heater Water
[08.1990 - 04.1997] GX70 |
87240-22270 |
— | ||
|
87245A
|
87245A
87245-2A280 Hose, Heater Water, Inlet A[10.1988 - 04.1997] GX70 |
87245-2A280 |
US $29.41 |
||
|
87245E
|
87245E
87245-22620 Hose, Heater Water, Inlet E[10.1988 - 04.1997] GX70,LX76,YX7# |
87245-22620 |
US $9.96 |
||
|
87246E
|
87246E
87245-2A290 Hose, Heater Water, Outlet E[10.1988 - 04.1997] GX70 |
87245-2A290 |
US $26.35 |
||
|
87249A
|
87249A
87208-22182
Pipe Sub-Assy, Heater Water
[10.1988 - 07.1990] GX70 |
87208-22182 |
— | ||
| replacement | |||||
|
87249A
|
87249A
87208-22262
Pipe Sub-Assy, Heater Water
[10.1988 - 07.1990] GX70 |
87208-22262 |
— | ||
|
87249A
|
87249A
87208-22260
Pipe Sub-Assy, Heater Water
[07.1990 - 11.1991] GX70 |
87208-22260 |
— | ||
| replacement | |||||
|
87249A
|
87249A
87208-22262
Pipe Sub-Assy, Heater Water
[07.1990 - 11.1991] GX70 |
87208-22262 |
— | ||
|
87249A
|
87249A
87208-22261
Pipe Sub-Assy, Heater Water
[11.1991 - 05.1992] GX70 |
87208-22261 |
— | ||
| replacement | |||||
|
87249A
|
87249A
87208-22262
Pipe Sub-Assy, Heater Water
[11.1991 - 05.1992] GX70 |
87208-22262 |
— | ||
|
87249A
|
87249A
87208-22262
Pipe Sub-Assy, Heater Water
[05.1992 - 04.1997] GX70 |
87208-22262 |
— | ||
|
91651G0612
|
91651G0612
91651-G0612 New Genuine Part |
91651-G0612 |
US $1.24 |
||
|
8712428030
|
8712428030
87124-28030 Clamp, Heater |
87124-28030 |
from US $2.42 |
||
|
9011906141
|
9011906141
90119-06141
New Genuine Part
|
90119-06141 |
— | ||
| replacement | |||||
|
9011906141
|
9011906141
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9095901294
|
9095901294
90959-01294
New Genuine Part
|
90959-01294 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.28 |
||
