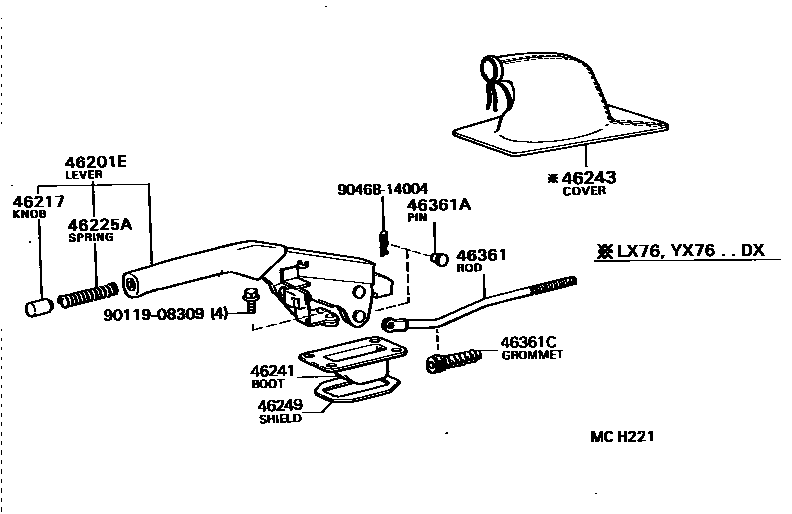

Parking Brake & Cable ([10.1988 - ] (8810- )GX70..5F ; (8812- )LX76,YX7#) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-22152-02 Lever Sub-Assy, Parking Brake[10.1988 - 02.1993] GX70..5F NEW MAROON,TRIM3# |
46201-22152-02 |
US $68.87 |
||
| replacement | |||||
|
46201E
|
46201E
46201-22152-13
Lever Sub-Assy, Parking Brake
[10.1988 - 02.1993] GX70..5F NEW MAROON,TRIM3# |
46201-22152-13 |
— | ||
|
46201E
|
46201E
46201-22152-04 Lever Sub-Assy, Parking Brake[10.1988 - 08.1990] GX70,YX76..(3FC,5F)..(GL,LG) BLUE,TRIM8# |
46201-22152-04 |
US $68.87 |
||
| replacement | |||||
|
46201E
|
46201E
46201-22152-13
Lever Sub-Assy, Parking Brake
[10.1988 - 08.1990] GX70,YX76..(3FC,5F)..(GL,LG) BLUE,TRIM8# |
46201-22152-13 |
— | ||
|
46201E
|
46201E
46201-22152-06 Lever Sub-Assy, Parking Brake[10.1988 - 04.1997] GX70,YX76..(3FC,5F)..(GL,LG) SABLE,TRIM4# |
46201-22152-06 |
US $68.87 |
||
| replacement | |||||
|
46201E
|
46201E
46201-22152-13
Lever Sub-Assy, Parking Brake
[10.1988 - 04.1997] GX70,YX76..(3FC,5F)..(GL,LG) SABLE,TRIM4# |
46201-22152-13 |
— | ||
|
46201E
|
46201E
46201-22152-13
Lever Sub-Assy, Parking Brake
[08.1990 - 04.1997] GX70,YX7#..(3FC,5F)..(GL,LG) MIDIUM GRAY,TRIM1# |
46201-22152-13 |
— | ||
|
46217
|
46217
46217-22030-02 Knob, Parking Brake Release Rod[10.1988 - 02.1993] GX70..5F NEW MAROON,TRIM3# |
46217-22030-02 |
US $3.20 |
||
|
46217
|
46217
46217-22030-03 Knob, Parking Brake Release Rod[08.1990 - 04.1997] GX70,LX76,YX7#..3FC,5F MEDIUM GRAY,TRIM1# |
46217-22030-03 |
US $3.20 |
||
|
46217
|
46217
46217-22030-04 Knob, Parking Brake Release Rod[10.1988 - 08.1990] GX70,LX76,YX76..3FC,5F DARK BLUE,TRIM8# |
46217-22030-04 |
US $3.49 |
||
| replacement | |||||
|
46217
|
46217
46217-22030-B0 Knob, Parking Brake Release Rod[10.1988 - 08.1990] GX70,LX76,YX76..3FC,5F DARK BLUE,TRIM8# |
46217-22030-B0 |
US $3.20 |
||
|
46217
|
46217
46217-22030-06 Knob, Parking Brake Release Rod[10.1988 - 02.1993] GX70,LX76,YX76..3FC,5F SABLE,TRIM4# |
46217-22030-06 |
US $3.49 |
||
| replacement | |||||
|
46217
|
46217
46217-22030-B0 Knob, Parking Brake Release Rod[10.1988 - 02.1993] GX70,LX76,YX76..3FC,5F SABLE,TRIM4# |
46217-22030-B0 |
US $3.20 |
||
|
46225A
|
46225A
90501-10745 Spring, Compression(For Parking Brake Pawl Rod)[10.1988 - 04.1997] GX70,LX76,YX7#..3FC,5F |
90501-10745 |
from US $2.87 |
||
|
46241
|
46241
46241-22060 Boot, Parking Brake Lever[10.1988 - 04.1997] GX70,LX76,YX7#..3FC,5F |
46241-22060 |
US $8.96 |
||
|
46249
|
46249
46249-22020 Shield, Parking Brake Hole[10.1988 - 04.1997] GX70,LX76,YX7#..3FC,5F |
46249-22020 |
US $4.30 |
||
|
46361
|
46361
46361-22060 Rod, Parking Brake Pull[10.1988 - 04.1997] GX70,LX76,YX7#..3FC,5F |
46361-22060 |
US $9.86 |
||
|
46361A
|
46361A
90240-08037 Pin, W/hole (For Front Drive Guide Lever No.2)[10.1988 - 04.1997] GX70,LX76,YX7#..3FC,5F |
90240-08037 |
US $2.33 |
||
|
46361C
|
46361C
90480-01292 Grommet(For Parking Brake Pull Rod)[10.1988 - 04.1997] GX70,LX76,YX7#..3FC,5F |
90480-01292 |
US $3.40 |
||
|
9011908309
|
9011908309
90119-08309
New Genuine Part
|
90119-08309 |
— | ||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
