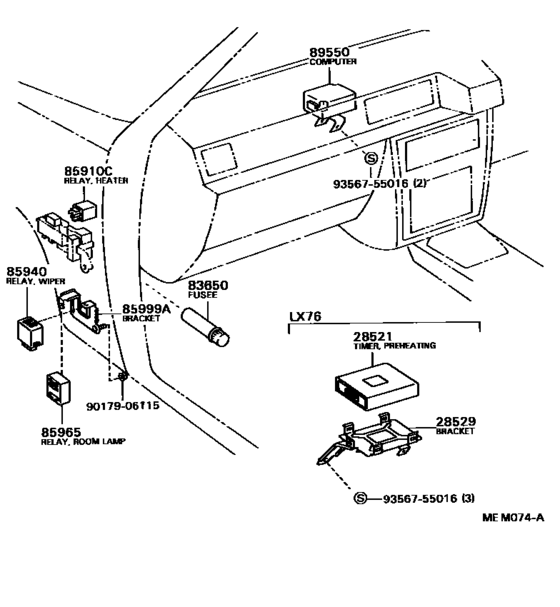

Switch & Relay & Computer ([10.1988 - ] ｶｳﾙ LH (8810- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83650
|
83650
90986-01005
Fusee
[10.1988 - 04.1997] GX70,LX76,YX7# |
90986-01005 |
— | ||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[10.1988 - 08.1996] GX70,LX76,YX7# |
90987-04002 |
from US $24.30 |
||
|
85940
|
85940
85940-22120 Relay Assy, Windshield Wiper[10.1988 - 04.1997] GX70 |
85940-22120 |
US $215.49 |
||
|
85965
|
85965
85965-22021 Relay, Room Lamp Control[10.1988 - 08.1990] GX70 |
85965-22021 |
US $131.04 |
||
|
85965
|
85965
85965-22030 Relay, Room Lamp Control[08.1990 - 04.1997] GX70 |
85965-22030 |
US $131.04 |
||
|
85999A
|
85999A
85999-22220 Bracket, Relay, No.2[10.1988 - 04.1997] GX70,LX76,YX7# |
85999-22220 |
US $10.92 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
