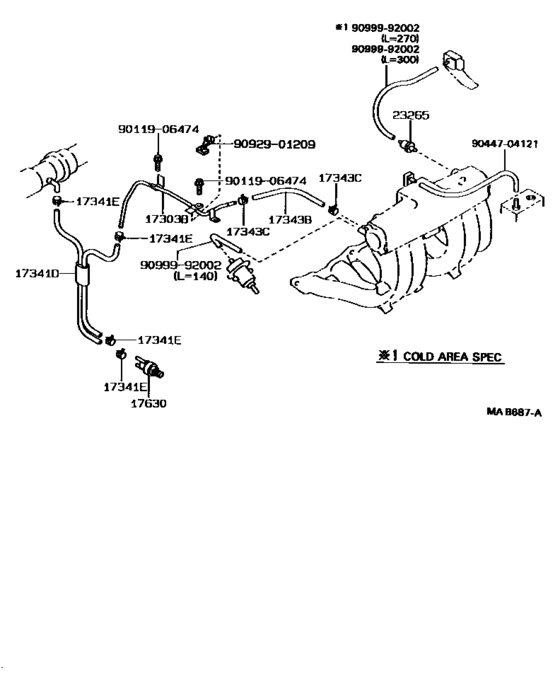

Vacuum Piping ([10.1988 - ] (8810- )1GFE) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-70050 Pipe Sub-Assy, Air, No.1[10.1988 - 05.1990] 1GFE..GX70 |
17303-70050 |
US $48.63 |
||
|
17303B
|
17303B
17303-70051 Pipe Sub-Assy, Air, No.1[05.1990 - 08.1991] 1GFE..GX70 |
17303-70051 |
US $39.60 |
||
|
17303B
|
17303B
17303-70080 Pipe Sub-Assy, Air, No.1[08.1991 - 04.1997] 1GFE..GX70 |
17303-70080 |
US $39.31 |
||
|
17341D
|
17341D
17341-70170 Hose, No.1(For Idle-Up)[10.1988 - 04.1997] 1GFE..GX70 |
17341-70170 |
US $20.68 |
||
|
17341E
|
17341E
90467-10106
Clip, No.1(For Idle-Up Hose)
[10.1988 - 04.1997] 1GFE..GX70 |
90467-10106 |
— | ||
| replacement | |||||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[10.1988 - 04.1997] 1GFE..GX70 |
96132-51000 |
from US $1.48 |
||
|
17343B
|
17343B
17343-70050
Hose, No.3(For Idle-Up)
[10.1988 - 04.1997] 1GFE..GX70 |
17343-70050 |
— | ||
|
17343C
|
17343C
90467-10106
Clip, No.1(For Idle-Up Hose)
[10.1988 - 04.1997] 1GFE..GX70 |
90467-10106 |
— | ||
| replacement | |||||
|
17343C
|
17343C
96132-51000 Clip Or Clamp(For Ventilation Hose)[10.1988 - 04.1997] 1GFE..GX70 |
96132-51000 |
from US $1.48 |
||
|
17630
|
17630
17630-70010 Valve Assy, Air Control[10.1988 - 04.1997] 1GFE..GX70 |
17630-70010 |
US $202.38 |
||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[08.1993 - 04.1997] 1GFE..GX70; 3YE..YX78 |
90917-11022 |
from US $17.14 |
||
|
23265
|
23265
90917-11031 Filter, Gas, No.1[10.1988 - 08.1993] 1GFE..GX70 |
90917-11031 |
from US $20.87 |
||
|
9011906474
|
9011906474
90119-06474 New Genuine Part |
90119-06474 |
US $0.87 |
||
|
9044704121
|
9044704121
90447-04121 New Genuine Part |
90447-04121 |
US $5.10 |
||
|
9092901209
|
9092901209
90929-01209 Plate, Resistive Cord Clamp Support No.1 |
90929-01209 |
US $3.20 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
