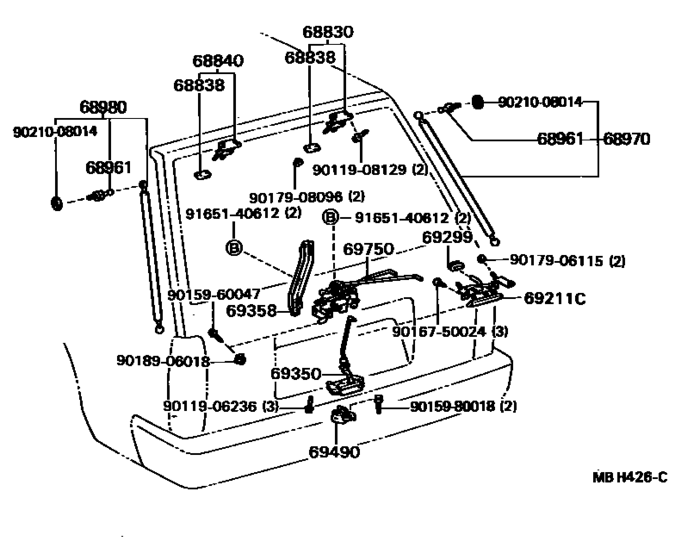

Back Door Lock & Handle ([11.1984 - ] (8411- )GX70,LX76,YX76) Diagram Toyota MARK 2
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 11.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68830
|
68830
68810-23010 Hinge Assy, Back Door, Rh[04.1985 - 08.1988] GX70,LX76,YX76 |
68810-23010 |
US $44.99 |
||
| replacement | |||||
|
68830
|
68830
68810-23011 Hinge Assy, Back Door, Rh[04.1985 - 08.1988] GX70,LX76,YX76 |
68810-23011 |
US $44.70 |
||
|
68830
|
68830
68810-91704 Hinge Assy, Back Door, Rh[11.1984 - 04.1985] GX70,LX76,YX76 |
68810-91704 |
US $44.99 |
||
| replacement | |||||
|
68830
|
68830
68810-23011 Hinge Assy, Back Door, Rh[11.1984 - 04.1985] GX70,LX76,YX76 |
68810-23011 |
US $44.70 |
||
|
68838
|
68838
68838-23010 Pad, Back Door Hinge, No.1[04.1985 - 08.1988] GX70,LX76,YX76 |
68838-23010 |
US $4.37 |
||
| replacement | |||||
|
68838
|
68838
68838-23011 Pad, Back Door Hinge[04.1985 - 08.1988] GX70,LX76,YX76 |
68838-23011 |
US $4.37 |
||
|
68838
|
68838
68838-91701
Pad, Back Door Hinge, No.1
[11.1984 - 04.1985] GX70,LX76,YX76 |
68838-91701 |
— | ||
|
68840
|
68840
68810-23010 Hinge Assy, Back Door, Rh[04.1985 - 08.1988] GX70,LX76,YX76 |
68810-23010 |
US $44.99 |
||
| replacement | |||||
|
68840
|
68840
68810-23011 Hinge Assy, Back Door, Rh[04.1985 - 08.1988] GX70,LX76,YX76 |
68810-23011 |
US $44.70 |
||
|
68840
|
68840
68810-91704 Hinge Assy, Back Door, Rh[11.1984 - 04.1985] GX70,LX76,YX76 |
68810-91704 |
US $44.99 |
||
| replacement | |||||
|
68840
|
68840
68810-23011 Hinge Assy, Back Door, Rh[11.1984 - 04.1985] GX70,LX76,YX76 |
68810-23011 |
US $44.70 |
||
|
68961
|
68961
68961-12010
Bolt, Hood Support, No.1
[11.1984 - 01.1985] GX70,LX76,YX76 |
68961-12010 |
— | ||
|
68961
|
68961
68961-23010 Bolt, Hood Support, No.1[01.1985 - 08.1988] GX70,LX76,YX76 |
68961-23010 |
from US $4.76 |
||
|
68970
|
68970
68950-29315
Stay Assy, Back Door, Rh
[11.1984 - 05.1985] GX70,LX76,YX76 W/RR WIPER |
68950-29315 |
— | ||
| replacements | |||||
|
68970
|
68970
68950-29405 Stay Assy, Back Door, Rh[11.1984 - 05.1985] GX70,LX76,YX76 W/RR WIPER |
68950-29405 |
US $158.70 |
||
|
68970
|
68970
68960-29245 Stay Assy, Back Door, Lh[11.1984 - 05.1985] GX70,LX76,YX76 W/RR WIPER |
68960-29245 |
US $158.70 |
||
|
68970
|
68970
68950-29405 Stay Assy, Back Door, Rh[05.1985 - 08.1988] GX70,LX76,YX76 W/RR WIPER |
68950-29405 |
US $158.70 |
||
|
68980
|
68980
68950-29315
Stay Assy, Back Door, Rh
[11.1984 - 05.1985] GX70,LX76,YX76 W/RR WIPER |
68950-29315 |
— | ||
| replacements | |||||
|
68980
|
68980
68950-29405 Stay Assy, Back Door, Rh[11.1984 - 05.1985] GX70,LX76,YX76 W/RR WIPER |
68950-29405 |
US $158.70 |
||
|
68980
|
68980
68960-29245 Stay Assy, Back Door, Lh[11.1984 - 05.1985] GX70,LX76,YX76 W/RR WIPER |
68960-29245 |
US $158.70 |
||
|
68980
|
68980
68960-29245 Stay Assy, Back Door, Lh[05.1985 - 08.1988] GX70,LX76,YX76 W/RR WIPER |
68960-29245 |
US $158.70 |
||
|
69211C
|
69211C
69209-23010 Handle, Back Door Outside[11.1984 - 08.1988] GX70,YX76..GL,LG |
69209-23010 |
US $39.60 |
||
|
69299
|
69299
69299-91701 Grommet, Back Door Handle[11.1984 - 08.1988] GX70,LX76,YX76 |
69299-91701 |
US $5.10 |
||
|
69350
|
69350
69350-23010 Lock Assy, Back Door[11.1984 - 08.1988] GX70,LX76,YX76 |
69350-23010 |
from US $110.66 |
||
|
69358
|
69358
69358-23010 Protector, Back Door Lock[11.1984 - 08.1988] GX70,LX76,YX76 |
69358-23010 |
US $11.50 |
||
|
69490
|
69490
69430-23010 Striker Assy, Back Door Lock[11.1984 - 08.1988] GX70,LX76,YX76 |
69430-23010 |
US $15.58 |
||
|
69750
|
69750
69790-23020 Link Sub-Assy, Back Door Remote Control[11.1984 - 08.1988] GX70,YX76..GL,LG |
69790-23020 |
US $90.27 |
||
|
9011906236
|
9011906236
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9011908129
|
9011908129
90119-08129
New Genuine Part
|
90119-08129 |
— | ||
|
9015960047
|
9015960047
90159-60047 SCREWWWASHER |
90159-60047 |
from US $1.11 |
||
|
9015980018
|
9015980018
90159-80018 New Genuine Part |
90159-80018 |
US $1.60 |
||
| replacement | |||||
|
9015980018
|
9015980018
90159-80040
New Genuine Part
|
90159-80040 |
— | ||
|
9016750024
|
9016750024
90167-50024 New Genuine Part |
90167-50024 |
US $1.60 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.40 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9021008014
|
9021008014
90210-08014 New Genuine Part |
90210-08014 |
US $4.66 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
