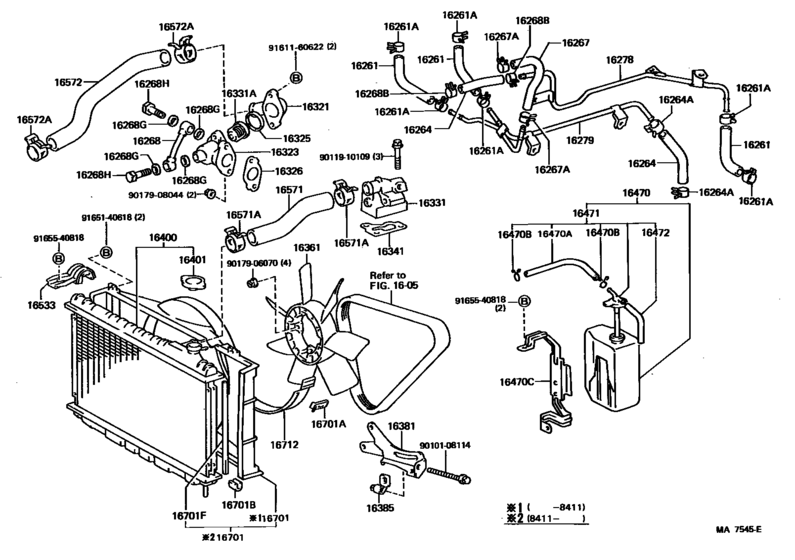

Radiator & Water Outlet ([08.1984 - ] (8408- )1GEU) Diagram Toyota MARK 2
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 11.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-70020 Hose, Water By-Pass[08.1984 - 08.1988] 1GEU..GX7# |
16261-70020 |
US $9.76 |
||
| replacement | |||||
|
16261
|
16261
16261-70030 Hose, Water By-Pass[08.1984 - 08.1988] 1GEU..GX7# |
16261-70030 |
US $9.90 |
||
|
16261A
|
16261A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 08.1988] 1GEU..GX7#; MTEU..MX71 |
90467-13001 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96135-51300 Clamp, Hose[08.1984 - 08.1988] 1GEU..GX7#; MTEU..MX71 |
96135-51300 |
from US $2.13 |
||
|
16264
|
16264
99555-10100 Hose, Water By-Pass, No.2[08.1984 - 08.1988] 1GEU..GX7# 長さ＝１００ |
99555-10100 |
US $4.30 |
||
|
16264A
|
16264A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 08.1988] 1GEU..GX7# |
90467-13001 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[08.1984 - 08.1988] 1GEU..GX7# |
96135-51300 |
from US $2.13 |
||
|
16267
|
16267
16267-70020
Hose, Water By-Pass, No.3
[08.1984 - 08.1988] 1GEU..GX7# |
16267-70020 |
— | ||
|
16267A
|
16267A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 08.1988] 1GEU..GX7# |
90467-13001 |
— | ||
| replacement | |||||
|
16267A
|
16267A
96135-51300 Clamp, Hose[08.1984 - 08.1988] 1GEU..GX7# |
96135-51300 |
from US $2.13 |
||
|
16268
|
16268
16268-70011 Pipe, Water By-Pass, No.1[08.1984 - 08.1988] 1GEU..GX7# |
16268-70011 |
US $39.60 |
||
|
16268B
|
16268B
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 08.1988] 1GEU..GX7# |
90467-13001 |
— | ||
| replacement | |||||
|
16268B
|
16268B
96135-51300 Clamp, Hose[08.1984 - 08.1988] 1GEU..GX7# |
96135-51300 |
from US $2.13 |
||
|
16268G
|
16268G
90430-18012 Gasket(For Oil Pump Outlet Pipe)[08.1984 - 08.1988] 1GEU..GX7# |
90430-18012 |
US $3.05 |
||
|
16268H
|
16268H
90401-18006
Bolt, Union(For Water By-Pass Pipe)
[08.1984 - 08.1988] 1GEU..GX7# |
90401-18006 |
— | ||
|
16278
|
16278
16278-70040 Pipe, Water By-Pass, No.2[08.1984 - 08.1988] 1GEU..GX7# |
16278-70040 |
US $46.88 |
||
|
16279
|
16279
16279-70020 Pipe, Water By-Pass, No.3[08.1984 - 08.1988] 1GEU..GX7# |
16279-70020 |
US $62.32 |
||
|
16321
|
16321
16321-70011 Inlet, Water[08.1984 - 08.1988] 1GEU..GX7# |
16321-70011 |
US $42.81 |
||
|
16323
|
16323
16323-70011 Housing, Water Inlet[08.1984 - 08.1988] 1GEU..GX7# |
16323-70011 |
US $48.19 |
||
|
16325
|
16325
16325-63010
Gasket, Water Inlet Housing, No.1
[08.1984 - 08.1988] 1SU..SX70; 2Y#,3YPU..YX7#; 1GEU,1GG#..GX7# |
16325-63010 |
— | ||
| replacement | |||||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[08.1984 - 08.1988] 1SU..SX70; 2Y#,3YPU..YX7#; 1GEU,1GG#..GX7# |
16325-63011 |
from US $3.88 |
||
|
16326
|
16326
16326-70011
Gasket, Water Inlet Housing, No.2
[08.1984 - 08.1988] 1GEU,1GG#..GX7# |
16326-70011 |
— | ||
| replacement | |||||
|
16326
|
16326
16326-70012 Gasket, Water Inlet Housing, No.2[08.1984 - 08.1988] 1GEU,1GG#..GX7# |
16326-70012 |
US $5.56 |
||
|
16331
|
16331
16331-70030 Outlet, Water[08.1984 - 08.1988] 1GEU..GX7# |
16331-70030 |
US $128.13 |
||
|
16331A
|
16331A
90916-03060
Thermostat
[08.1984 - 08.1988] 1GEU..GX7# ＊ＷＡＸ ８２−９５ |
90916-03060 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03090 Thermostat[08.1984 - 08.1988] 1GEU..GX7# ＊ＷＡＸ ８２−９５ |
90916-03090 |
from US $25.14 |
||
|
16341
|
16341
16341-70010 Gasket, Water Outlet[08.1984 - 08.1988] 1GEU..GX7# |
16341-70010 |
US $4.22 |
||
|
16361
|
16361
16361-70010 Fan[08.1984 - 08.1988] 1GEU..GX7# |
16361-70010 |
US $106.29 |
||
|
16381
|
16381
16381-70021 Bar, Fan Belt Adjusting[08.1984 - 08.1988] 1GEU..GX7# |
16381-70021 |
US $24.46 |
||
|
16385
|
16385
16385-70011 Slider, Fan Belt Adjusting[08.1984 - 08.1988] 1GEU..GX7# |
16385-70011 |
US $12.52 |
||
|
16400
|
16400
16400-70100 Radiator Assy[08.1984 - 08.1988] 1GEU,1GGEU..GX7#..4FC |
16400-70100 |
US $575.12 |
||
|
16401
|
16401
16401-63010 Cap Sub-Assy,[08.1984 - 08.1988] 2L#..LX7#; MTEU..MX71; 1SU..SX70; 2Y#,3YPU..YX7#; 1GEU,1GG#..GX7# |
16401-63010 |
from US $10.55 |
||
|
16470
|
16470
16470-70050
Tank Assy, Radiator Reserve
[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GGEU..GX7# |
16470-70050 |
— | ||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1984 - 08.1988] 2L#..LX7# ＊Ｈ，Ｌ＝１３０,ＮＯ．２; MTEU..MX71 ＊Ｈ，Ｌ＝２２０; 1SU..SX70 ＊Ｈ，Ｌ＝２２０; 2Y#,3YPU..YX7# ＊Ｈ，Ｌ＝２００,ＮＯ．２; 1GEU,1GGEU..GX7# ＊Ｈ，Ｌ＝２２０ |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1984 - 08.1988] 2L#..LX7#; MTEU..MX71; 1SU..SX70; 2Y#,3YPU..YX7#; 1GEU,1GG#..GX7# |
90467-11085 |
from US $0.72 |
||
|
16470C
|
16470C
16402-70030
Bracket(For Radiator Reserve Tank)
[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GGEU..GX7# |
16402-70030 |
— | ||
|
16471
|
16471
16405-70030
Cap Sub-Assy, Reserve Tank
[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GGEU..GX7# |
16405-70030 |
— | ||
|
16472
|
16472
85338-22020 Hose, Breather[08.1984 - 09.1986] MTEU..MX71; 1GEU,1GG#..GX7#; 1SU..SX70 |
85338-22020 |
US $2.45 |
||
|
16472
|
16472
85338-70100
Hose, Breather
[09.1986 - 08.1988] 1SU..SX70; 1GEU,1GG#..GX7# |
85338-70100 |
— | ||
|
16533
|
16533
16505-70010
Support, Radiator, Upper
[08.1984 - 08.1988] 2L#..LX7#; MTEU..MX71; 1SU..SX70; 2Y#,3YPU..YX7#; 1GEU,1GG#..GX7# |
16505-70010 |
— | ||
|
16571
|
16571
16571-70080
Hose, Radiator, Inlet
[08.1984 - 08.1988] 1GEU..GX7# |
16571-70080 |
— | ||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[08.1984 - 08.1988] 1GEU..GX7#; 2Y#,3YPU..YX7# |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[08.1984 - 08.1988] 1GEU..GX7#; 2Y#,3YPU..YX7# |
90467-37003 |
from US $4.56 |
||
|
16572
|
16572
16572-70080
Hose, Radiator, Outlet
[08.1984 - 08.1988] 1GEU..GX7# |
16572-70080 |
— | ||
|
16572A
|
16572A
90467-37001
Clip(For Water Inlet Hose)
[08.1984 - 08.1988] 1GEU..GX7#; 2Y#,3YPU..YX7# |
90467-37001 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[08.1984 - 08.1988] 1GEU..GX7#; 2Y#,3YPU..YX7# |
90467-37003 |
from US $4.56 |
||
|
16701
|
16701
16701-70020 Shroud Sub-Assy, Fan[11.1984 - 08.1988] 1GEU,1GGEU..GX7# |
16701-70020 |
US $99.01 |
||
|
16701
|
16701
16711-70050
Shroud Sub-Assy, Fan
[08.1984 - 11.1984] 1G#..GX71 |
16711-70050 |
— | ||
| replacement | |||||
|
16701
|
16701
16701-70020 Shroud Sub-Assy, Fan[08.1984 - 11.1984] 1G#..GX71 |
16701-70020 |
US $99.01 |
||
|
16701A
|
16701A
90468-06013 Clip(For Fan Shroud)[08.1984 - 08.1988] 2L#..LX7# W/COOLER; MTEU..MX71 W/COOLER; 1SU..SX70 W/COOLER; 2Y#,3YPU..YX7# W/COOLER; 1GEU,1GG#..GX7# W/COOLER |
90468-06013 |
from US $0.96 |
||
|
16701B
|
16701B
90541-11002 Cushion, Fan Shroud[08.1984 - 08.1988] MTEU..MX71; 1SU..SX70; 2Y#,3YPU..YX7#; 1GEU,1GG#..GX7# |
90541-11002 |
US $4.12 |
||
|
16701F
|
16701F
16832-41010 Seal(For Fan Shroud)[08.1984 - 08.1988] MTEU..MX71; 1SU..SX70; 1GEU,1GGEU..GX7# |
16832-41010 |
US $12.01 |
||
|
16712
|
16712
16712-70040 Shroud, Fan, No.2[08.1984 - 08.1988] 1GEU,1GG#..GX7# W/COOLER |
16712-70040 |
US $24.61 |
||
|
9010108114
|
9010108114
90101-08114 New Genuine Part |
90101-08114 |
US $3.20 |
||
| replacement | |||||
|
9010108114
|
9010108114
90105-08369 New Genuine Part |
90105-08369 |
US $4.66 |
||
|
9011910109
|
9011910109
90119-10109 Bolt (For Transfer Extension Rear Housing) |
90119-10109 |
US $3.35 |
||
| replacement | |||||
|
9011910109
|
9011910109
90119-10180 Bolt (For Transfer Extension Rear Housing) |
90119-10180 |
US $2.33 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.20 |
||
|
9161160622
|
9161160622
91611-60622 Bolt, W/washer (For Transmission Oil Pump Cover) |
91611-60622 |
US $2.62 |
||
|
9165140618
|
9165140618
91651-40618 New Genuine Part |
91651-40618 |
US $2.80 |
||
|
9165540818
|
9165540818
91655-40818
New Genuine Part
|
91655-40818 |
— | ||
| replacement | |||||
|
9165540818
|
9165540818
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
