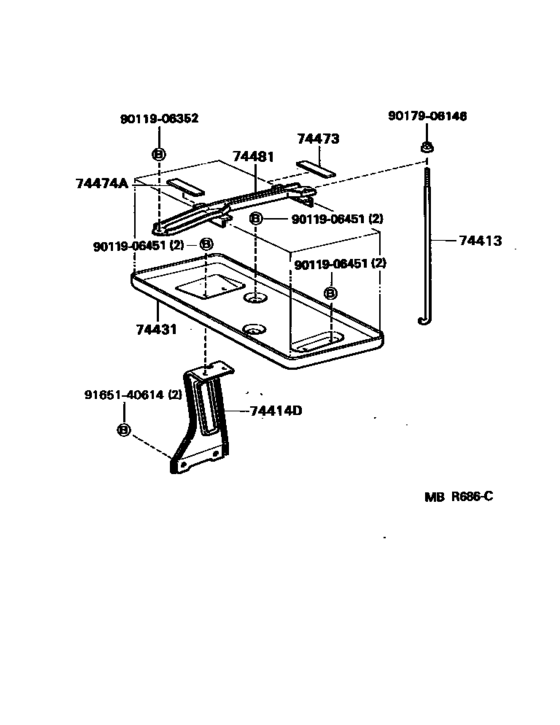

Battery Carrier ([10.1988 - ] (8810- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74413
|
74413
74451-16010 Bolt, Battery Clamp[10.1988 - 04.1997] GX70,LX76,YX7# |
74451-16010 |
from US $2.44 |
||
|
74431
|
74431
74431-22040
Carrier, Battery
[10.1988 - 04.1997] GX70,LX76 |
74431-22040 |
— | ||
|
74473
|
74473
74473-22010 Spacer, Battery[10.1988 - 04.1997] GX70,LX76,YX7# |
74473-22010 |
US $4.89 |
||
|
74474A
|
74474A
74474-22010 Pad, Battery[10.1988 - 04.1997] GX70,LX76,YX7# |
74474-22010 |
US $4.02 |
||
|
74481
|
74481
74404-22180
Clamp, Battery Hold Down
[10.1988 - 04.1997] GX70,LX76 |
74404-22180 |
— | ||
|
9011906352
|
9011906352
90119-06352
New Genuine Part
|
90119-06352 |
— | ||
| replacement | |||||
|
9011906352
|
9011906352
90119-06430 BOLT WWASHER |
90119-06430 |
from US $1.54 |
||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
US $1.25 |
||
|
9017906146
|
9017906146
90179-06146 Nut |
90179-06146 |
US $1.79 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
