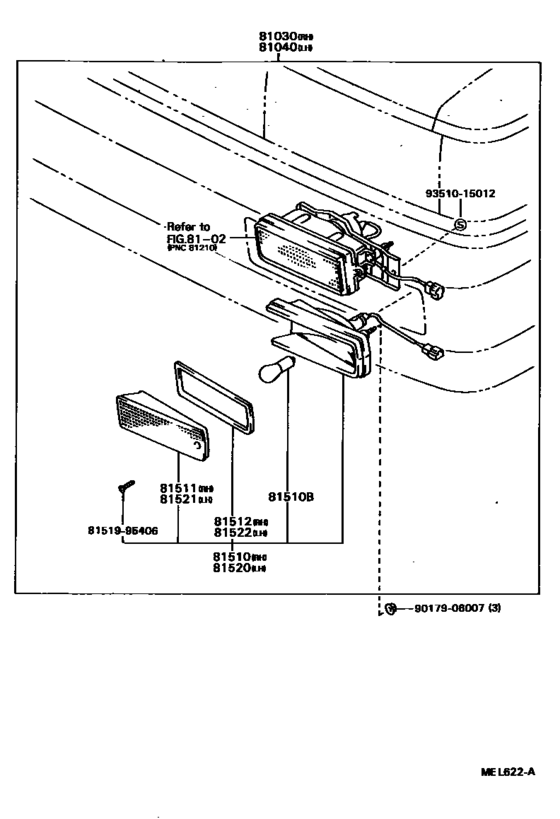

Front Turn Signal Lamp ([10.1988 - ] (8810- )GX70) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81030
|
81030
81030-91602 Lamp Assy, Front Fog And Turn Signal, Rh[10.1988 - 04.1997] GX70 |
81030-91602 |
US $254.80 |
||
|
81040
|
81040
81040-91602 Lamp Assy, Front Fog And Turn Signal, Lh[10.1988 - 04.1997] GX70 |
81040-91602 |
US $254.80 |
||
|
81510
|
81510
81510-91602 Lamp Assy, Front Turn Signal, Rh[10.1988 - 04.1997] GX70 |
81510-91602 |
US $60.57 |
||
|
81510B
|
81510B
99132-11210 Bulb (12V 21W)[10.1988 - 04.1997] GX70,LX76,YX7# １２Ｖ ２１Ｗ |
99132-11210 |
from US $2.81 |
||
|
81511
|
81511
81511-22320
Lens, Front Turn Signal Lamp, Rh
[10.1988 - 04.1997] GX70 |
81511-22320 |
— | ||
|
81512
|
81512
81512-22320
Gasket, Front Turn Signal Lamp Lens, Rh
[10.1988 - 04.1997] GX70 |
81512-22320 |
— | ||
|
81520
|
81520
81520-91602 Lamp Assy, Front Turn Signal, Lh[10.1988 - 04.1997] GX70 |
81520-91602 |
US $60.57 |
||
|
81521
|
81521
81521-22320
Lens, Front Turn Signal Lamp, Lh
[10.1988 - 04.1997] GX70 |
81521-22320 |
— | ||
|
81522
|
81522
81512-22320
Gasket, Front Turn Signal Lamp Lens, Rh
[10.1988 - 04.1997] GX70 |
81512-22320 |
— | ||
|
8151995406
|
8151995406
81519-95406 Bracket, Front Turn Signal Lamp, Rh |
81519-95406 |
US $3.93 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9351015012
|
9351015012
93510-15012 New Genuine Part |
93510-15012 |
US $3.23 |
