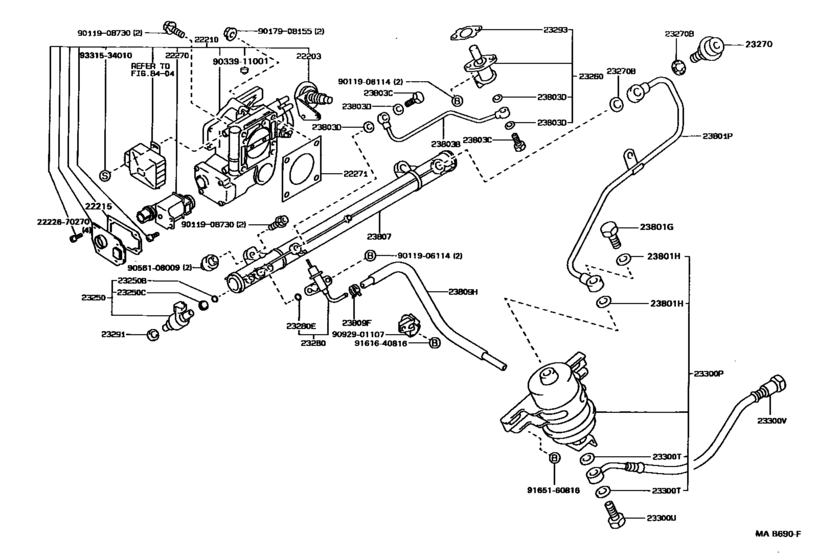

Fuel Injection System ([10.1988 - 08.1990] (8810-9008)1GFE) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22203-70080
Dash Pot Sub-Assy(For Throttle Body)
[10.1988 - 04.1997] 1GFE..GX70 |
22203-70080 |
— | ||
|
22210
|
22210
22210-70270
Body Assy, Throttle
[10.1988 - 08.1990] 1GFE..GX70..4FC |
22210-70270 |
— | ||
|
22210
|
22210
22210-70320 Body Assy, Throttle[08.1990 - 01.1993] 1GFE..GX70 |
22210-70320 |
US $1,616.16 |
||
|
22210
|
22210
22210-70321 Body Assy, Throttle[01.1993 - 04.1997] 1GFE..GX70 |
22210-70321 |
US $1,630.72 |
||
|
22215
|
22215
22215-70270
Gasket, Throttle Body Cover
[10.1988 - 08.1990] 1GFE..GX70 |
22215-70270 |
— | ||
|
22270
|
22270
17630-70030
Valve Assy, Idle Speed Control(For Thlottle Body)
[10.1988 - 08.1990] 1GFE..GX70 |
17630-70030 |
— | ||
|
22270
|
22270
22270-70120 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1990 - 04.1997] 1GFE..GX70 |
22270-70120 |
US $1,126.94 |
||
|
22271
|
22271
22271-70020
Gasket, Throttle Body
[10.1988 - 07.1990] 1GFE..GX70 |
22271-70020 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-70021 Gasket, Throttle Body[10.1988 - 07.1990] 1GFE..GX70 |
22271-70021 |
from US $2.79 |
||
|
22271
|
22271
22271-70021 Gasket, Throttle Body[07.1990 - 04.1997] 1GFE..GX70 |
22271-70021 |
from US $2.79 |
||
|
23250
|
23250
23209-70070 Injector Assy, Fuel[10.1988 - 08.1990] 1GFE..GX70 |
23209-70070 |
US $291.78 |
||
|
23250
|
23250
23209-70100 Injector Assy, Fuel[08.1990 - 04.1997] 1GFE..GX70 |
23209-70100 |
US $275.18 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[10.1988 - 04.1997] 1GFE..GX70 |
90301-07001 |
from US $2.81 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[10.1988 - 04.1997] 1GFE..GX70 |
90480-13005 |
from US $2.42 |
||
|
23260
|
23260
23260-79145 Injector Assy, Cold Start Fuel[10.1988 - 07.1990] 1GFE..GX70 |
23260-79145 |
US $141.23 |
||
| replacement | |||||
|
23260
|
23260
23260-79146 Injector Assy, Cold Start Fuel[10.1988 - 07.1990] 1GFE..GX70 |
23260-79146 |
US $138.32 |
||
|
23260
|
23260
23260-79146 Injector Assy, Cold Start Fuel[07.1990 - 08.1990] 1GFE..GX70 |
23260-79146 |
US $138.32 |
||
|
23270
|
23270
23270-28030 Damper Assy, Fuel Pressure Pulsation[10.1988 - 04.1997] 1GFE..GX70 |
23270-28030 |
US $91.73 |
||
| replacement | |||||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[10.1988 - 04.1997] 1GFE..GX70 |
23207-46010 |
— | ||
|
23270B
|
23270B
23232-28010
Gasket(For Fuel Pump Hose)
[10.1988 - 02.1990] 1GFE..GX70 DAMPER SIDE |
23232-28010 |
— | ||
| replacement | |||||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[10.1988 - 02.1990] 1GFE..GX70 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[02.1990 - 03.1993] 1GFE..GX70 DAMPER SIDE; 3YE..YX78 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12005 Gasket(For Water Hole)[10.1988 - 02.1990] 1GFE..GX70 DELIVERY PIPE SIDE |
90430-12005 |
from US $0.68 |
||
|
23270B
|
23270B
90430-12026 Gasket[02.1990 - 03.1993] 1GFE..GX70 DELIVERY PIPE SIDE; 3YE..YX78 DELIVERY PIPE SIDE |
90430-12026 |
from US $0.82 |
||
|
23280
|
23280
23280-70070
Regulator Assy, Fuel Pressure
[10.1988 - 04.1997] 1GFE..GX70 |
23280-70070 |
— | ||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[10.1988 - 04.1997] 1GFE..GX70; 3YE..YX78 |
90301-07001 |
from US $2.81 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[10.1988 - 04.1997] 1GFE..GX70 |
23291-41010 |
from US $2.65 |
||
|
23293
|
23293
23293-70020 Gasket, Cold Start Injector[10.1988 - 08.1990] 1GFE..GX70 |
23293-70020 |
US $5.39 |
||
| replacement | |||||
|
23293
|
23293
23293-70021 Gasket, Cold Start Injector[10.1988 - 08.1990] 1GFE..GX70 |
23293-70021 |
US $4.66 |
||
|
23300P
|
23300P
23300-79145 Filter, Fuel(For Efi)[10.1988 - 08.1990] 1GFE..GX70 |
23300-79145 |
US $106.29 |
||
| replacement | |||||
|
23300P
|
23300P
23300-79146
Filter, Fuel(For Efi)
[10.1988 - 08.1990] 1GFE..GX70 |
23300-79146 |
— | ||
|
23300P
|
23300P
23300-79146
Filter, Fuel(For Efi)
[08.1990 - 04.1997] 1GFE..GX70 |
23300-79146 |
— | ||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[10.1988 - 07.1991] 1GFE..GX70 |
90430-12005 |
from US $0.68 |
||
|
23300T
|
23300T
90430-12026 Gasket[07.1991 - 04.1997] 1GFE..GX70 |
90430-12026 |
from US $0.82 |
||
|
23300U
|
23300U
90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set)[03.1993 - 04.1997] 1GFE..GX70 |
90401-12029 |
US $6.60 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[10.1988 - 03.1993] 1GFE..GX70 |
90401-12097 |
from US $2.94 |
||
|
23300V
|
23300V
90923-01328
Hose, Fuel(For Fuel Inlet)
[10.1988 - 04.1997] 1GFE..GX70 |
90923-01328 |
— | ||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[10.1988 - 04.1997] 1GFE..GX70 |
90401-12097 |
from US $2.94 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[10.1988 - 02.1990] 1GFE..GX70 |
90430-12005 |
from US $0.68 |
||
|
23801H
|
23801H
90430-12026 Gasket[02.1990 - 04.1997] 1GFE..GX70 |
90430-12026 |
from US $0.82 |
||
|
23801P
|
23801P
23801-70060 Pipe Sub-Assy, Fuel, No.1[10.1988 - 04.1997] 1GFE..GX70 |
23801-70060 |
US $58.82 |
||
|
23803B
|
23803B
23803-70050 Pipe Sub-Assy, Fuel, No.3[10.1988 - 08.1990] 1GFE..GX70 |
23803-70050 |
US $44.99 |
||
|
23803C
|
23803C
90401-08003 Bolt, Union[04.1989 - 08.1990] 1GFE..GX70 |
90401-08003 |
US $2.51 |
||
|
23803C
|
23803C
90401-08006 Bolt, Union[10.1988 - 04.1989] 1GFE..GX70 |
90401-08006 |
US $2.18 |
||
| replacement | |||||
|
23803C
|
23803C
90401-08003 Bolt, Union[10.1988 - 04.1989] 1GFE..GX70 |
90401-08003 |
US $2.51 |
||
|
23803D
|
23803D
90430-08005 Gasket[10.1988 - 02.1990] 1GFE..GX70 |
90430-08005 |
US $2.51 |
||
|
23803D
|
23803D
90430-08012 Gasket[02.1990 - 08.1990] 1GFE..GX70 |
90430-08012 |
US $2.15 |
||
|
23807
|
23807
23807-70040 Pipe Sub-Assy, Fuel Delivery[10.1988 - 08.1991] 1GFE..GX70 |
23807-70040 |
US $246.06 |
||
|
23807
|
23807
23807-70060 Pipe Sub-Assy, Fuel Delivery[08.1991 - 04.1997] 1GFE..GX70 |
23807-70060 |
US $243.15 |
||
|
23809F
|
23809F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1993 - 04.1997] 1GFE..GX70 |
90467-13001 |
— | ||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[09.1993 - 04.1997] 1GFE..GX70 |
96135-51300 |
from US $2.13 |
||
|
23809F
|
23809F
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.1988 - 09.1993] 1GFE..GX70 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[10.1988 - 09.1993] 1GFE..GX70 |
96135-51300 |
from US $2.13 |
||
|
23809H
|
23809H
90447-15027 Hose, Fuel Pipe Support To Regulator[10.1988 - 04.1997] 1GFE..GX70 |
90447-15027 |
US $22.86 |
||
|
2222670270
|
2222670270
22226-70270
New Genuine Part
|
22226-70270 |
— | ||
|
9011906114
|
9011906114
90119-06114
New Genuine Part
|
90119-06114 |
— | ||
| replacement | |||||
|
9011906114
|
9011906114
90119-06206 New Genuine Part |
90119-06206 |
US $2.51 |
||
|
9011908730
|
9011908730
90119-08730 New Genuine Part |
90119-08730 |
US $1.89 |
||
|
9017908155
|
9017908155
90179-08155 New Genuine Part |
90179-08155 |
US $1.16 |
||
|
9033911001
|
9033911001
90339-11001
New Genuine Part
|
90339-11001 |
— | ||
|
9056108009
|
9056108009
90561-08009 Spacer, No.1(For Delivery Pipe) |
90561-08009 |
US $3.58 |
||
|
9092901107
|
9092901107
90929-01107 New Genuine Part |
90929-01107 |
US $6.84 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9331534010
|
9331534010
93315-34010
New Genuine Part
|
93315-34010 |
— | ||
