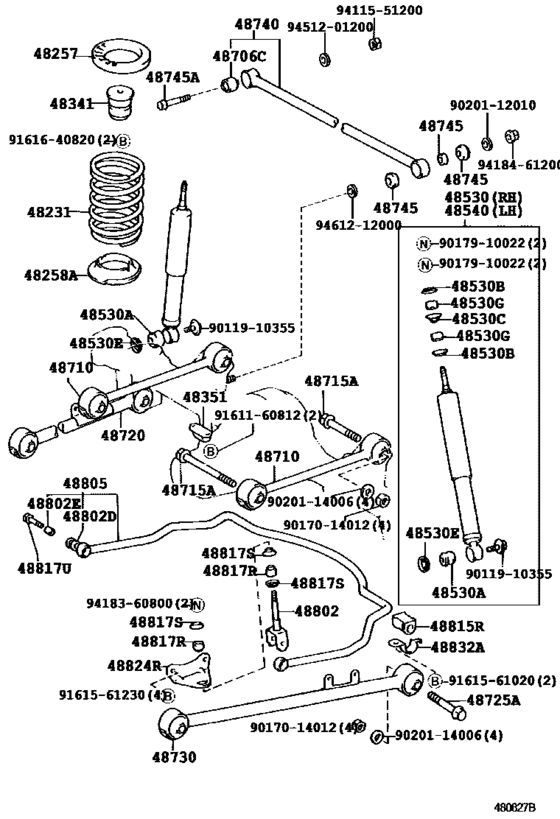

Rear Spring & Shock Absorber ([10.1988 - ] (8810- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48231
|
48231
48231-23140 Spring, Coil, Rear[10.1988 - 08.1990] GX70 |
48231-23140 |
US $113.57 |
||
|
48231
|
48231
48231-23141
Spring, Coil, Rear
[08.1990 - 04.1997] GX70 |
48231-23141 |
— | ||
|
48257
|
48257
48257-23010 Insulator, Rear Coil Spring[10.1988 - 04.1997] GX70,LX76,YX7# |
48257-23010 |
US $18.05 |
||
|
48258A
|
48258A
48258-30010 Insulator, Rear Coil Spring, Lower[10.1988 - 04.1997] GX70,LX76,YX7# |
48258-30010 |
US $9.03 |
||
|
48341
|
48341
48306-14030
Bumper Sub-Assy, Rear Spring
[10.1988 - 04.1997] GX70 |
48306-14030 |
— | ||
|
48351
|
48351
48351-20020 Bumper, Differential Carrier[10.1988 - 04.1997] GX70,LX76,YX7# |
48351-20020 |
US $6.60 |
||
|
48530
|
48530
48531-80365 Absorber Assy, Shock, Rear Rh[10.1988 - 04.1997] GX70 マーク ４８５３１−２３１８０ |
48531-80365 |
US $91.73 |
||
| replacement | |||||
|
48530
|
48530
48531-80195 Absorber Assy, Shock, Rear Rh[10.1988 - 04.1997] GX70 マーク ４８５３１−２３１８０ |
48531-80195 |
from US $58.01 |
||
|
48530A
|
48530A
90385-16004 Cushion, Front Shock Absorber[10.1988 - 04.1997] GX70,LX76,YX7# |
90385-16004 |
from US $3.26 |
||
|
48530B
|
48530B
90948-02002 Retainer, Steering Damper Cushion[10.1988 - 08.1990] GX70,LX76,YX76 下側 |
90948-02002 |
from US $1.21 |
||
|
48530B
|
48530B
90948-02045 Washer, Rear Shock Absorber Cushion, No.1[10.1988 - 08.1990] GX70,LX76,YX76 上側 |
90948-02045 |
US $3.89 |
||
|
48530C
|
48530C
90948-02075 Washer, Rear Shock Absorber Cushion, No.1[10.1988 - 04.1997] GX70,LX76,YX7# |
90948-02075 |
US $2.62 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[10.1988 - 04.1997] GX70,LX76,YX7# |
90948-03004 |
from US $1.29 |
||
|
48530G
|
48530G
90540-10004 Bush(For Rear Shock Absorber)[10.1988 - 04.1997] GX70,LX76,YX7# 下側 |
90540-10004 |
US $4.12 |
||
|
48530G
|
48530G
90540-10005 Bush(For Rear Shock Absorber)[10.1988 - 04.1997] GX70,LX76,YX7# 上側 |
90540-10005 |
from US $3.22 |
||
|
48540
|
48540
48531-80365 Absorber Assy, Shock, Rear Rh[10.1988 - 04.1997] GX70 マーク ４８５３１−２３１８０ |
48531-80365 |
US $91.73 |
||
| replacement | |||||
|
48540
|
48540
48531-80195 Absorber Assy, Shock, Rear Rh[10.1988 - 04.1997] GX70 マーク ４８５３１−２３１８０ |
48531-80195 |
from US $58.01 |
||
|
48706C
|
48706C
48706-23010 Bush Sub-Assy, Lateral Control Rod[10.1988 - 04.1997] GX70,LX76,YX7# |
48706-23010 |
US $12.52 |
||
|
48710
|
48710
48710-23080 Arm Assy, Upper Control[10.1988 - 04.1997] GX70 |
48710-23080 |
US $80.08 |
||
|
48715A
|
48715A
90105-14009 Bolt, Hexagon(For Upper Control Arm)[10.1988 - 04.1997] GX70,LX76,YX7# BODY SIDE |
90105-14009 |
US $10.48 |
||
|
48715A
|
48715A
90105-14027 Bolt, Hexagon(For Upper Control Arm)[10.1988 - 04.1997] GX70,LX76,YX7# AXLE HOUSING SIDE |
90105-14027 |
US $9.14 |
||
|
48720
|
48720
48720-23070 Arm Assy, Lower Control, Rh[10.1988 - 04.1997] GX70,LX76,YX7# |
48720-23070 |
US $170.35 |
||
|
48725A
|
48725A
90105-14027 Bolt, Hexagon(For Upper Control Arm)[10.1988 - 04.1997] GX70,LX76,YX7# |
90105-14027 |
US $9.14 |
||
|
48730
|
48730
48720-23070 Arm Assy, Lower Control, Rh[10.1988 - 04.1997] GX70,LX76,YX7# |
48720-23070 |
US $170.35 |
||
|
48740
|
48740
48740-23020 Rod Assy, Rear Lateral Control[10.1988 - 04.1997] GX70,LX76,YX7# |
48740-23020 |
from US $90.27 |
||
|
48745
|
48745
90385-20001 Bush Sub-Assy, Front Lateral Control Rod[10.1988 - 04.1997] GX70,LX76,YX7# 長さ＝１５ |
90385-20001 |
from US $2.26 |
||
|
48745
|
48745
90386-20001 Bush Sub-Assy, Front Lateral Control Rod[10.1988 - 04.1997] GX70,LX76,YX7# L=12 |
90386-20001 |
from US $5.38 |
||
|
48745A
|
48745A
90106-12002
Bolt, Hexagon(For Lateral Control Rod)
[10.1988 - 04.1997] GX70,LX76,YX7# |
90106-12002 |
— | ||
|
48802
|
48802
48802-12010 Link Sub-Assy, Stabilizer[10.1988 - 04.1997] GX70 |
48802-12010 |
US $15.59 |
||
|
48802D
|
48802D
90385-11021 Bush, Stabilizer Link[10.1988 - 04.1997] GX70 |
90385-11021 |
from US $1.44 |
||
|
48802E
|
48802E
90560-10275 Spacer(For Rear Stabilizer Bar)[10.1988 - 04.1997] GX70 |
90560-10275 |
from US $2.05 |
||
|
48805
|
48805
48805-23030 Bar Sub-Assy, Rear Stabilizer[10.1988 - 04.1997] GX70 |
48805-23030 |
US $116.48 |
||
|
48815R
|
48815R
48815-12120 Bush, Stabilizer(For Rear)[10.1988 - 04.1997] GX70 |
48815-12120 |
US $7.17 |
||
|
48817R
|
48817R
48817-12010 Cushion, Stabilizer[10.1988 - 04.1997] GX70 |
48817-12010 |
from US $2.26 |
||
|
48817S
|
48817S
90948-02024 Retainer, Cushion, No.1(For Front Stabilizer Bar)[10.1988 - 08.1990] GX70 厚さ＝１．０ |
90948-02024 |
US $3.23 |
||
|
48817S
|
48817S
90948-02025 Retainer, Cushion, No.1(For Front Stabilizer Bar)[10.1988 - 08.1990] GX70 厚さ＝１．２ |
90948-02025 |
US $3.58 |
||
|
48817U
|
48817U
91111-41040
Bolt(For Rear Stabilizer)
[10.1988 - 04.1997] GX70 |
91111-41040 |
— | ||
| replacement | |||||
|
48817U
|
48817U
91111-51040 Shaft, Control Select Lever (For Column Shift)[10.1988 - 04.1997] GX70 |
91111-51040 |
US $3.76 |
||
|
48824R
|
48824R
48825-22020 Bracket, Stabilizer(For Rear)[10.1988 - 04.1997] GX70 |
48825-22020 |
US $8.88 |
||
|
48832A
|
48832A
48832-22030 Cover, Stabilizer Link(For Rear)[10.1988 - 04.1997] GX70 |
48832-22030 |
US $3.93 |
||
|
9011910355
|
9011910355
90119-10355 Washer, Rear Shock Absorber Cushion, No.2 |
90119-10355 |
from US $0.99 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.07 |
||
|
9017910022
|
9017910022
90179-10022 Nut(For Rear Support To Rear Shock Absorber) |
90179-10022 |
US $4.66 |
||
|
9020112010
|
9020112010
90201-12010 Washer(For Front Lateral Control Rod) |
90201-12010 |
US $6.99 |
||
|
9020114006
|
9020114006
90201-14006 Washer |
90201-14006 |
US $1.97 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161561020
|
9161561020
91615-61020
Bolt (For Transfer Case)Cover No.2
|
91615-61020 |
— | ||
| replacement | |||||
|
9161561020
|
9161561020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161561230
|
9161561230
91615-61230 New Genuine Part |
91615-61230 |
US $2.33 |
||
| replacement | |||||
|
9161561230
|
9161561230
91619-61230 BOLT |
91619-61230 |
US $1.97 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $3.05 |
||
|
9418360800
|
9418360800
94183-60800 Nut(For Front Stabilizer Bar) |
94183-60800 |
US $1.43 |
||
|
9418461200
|
9418461200
94184-61200 Nut, Lock(For Power Steering Control Valve) |
94184-61200 |
from US $1.03 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
|
9461212000
|
9461212000
94612-12000 Washer, Plate, No.2(For Rear Lateral Control Rod) |
94612-12000 |
from US $1.19 |
||
