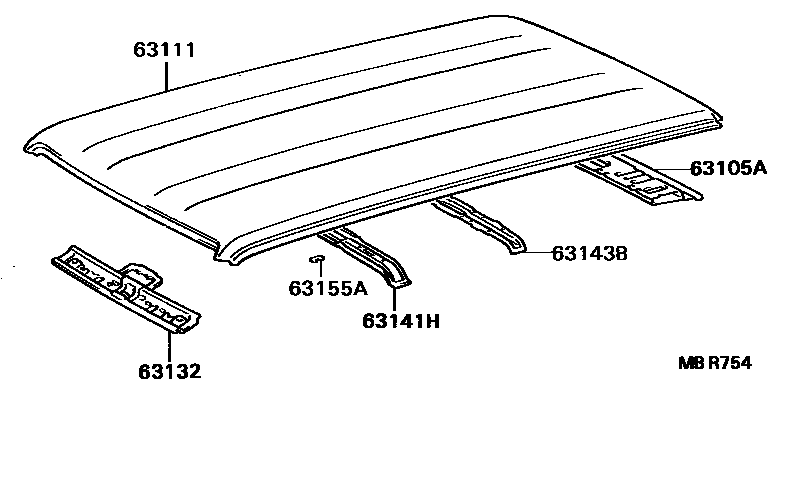

Roof Panel & Back Window Glass ([10.1988 - ] (8810- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63105A
|
63105A
63105-23010 Frame Sub-Assy, Back Door Opening[10.1988 - 11.1990] GX70,LX76,YX76 |
63105-23010 |
US $115.02 |
||
| replacement | |||||
|
63105A
|
63105A
63105-23020 Frame Sub-Assy, Back Door Opening[10.1988 - 11.1990] GX70,LX76,YX76 |
63105-23020 |
US $110.66 |
||
|
63105A
|
63105A
63105-23020 Frame Sub-Assy, Back Door Opening[11.1990 - 04.1997] GX70,LX76,YX7# |
63105-23020 |
US $110.66 |
||
|
63111
|
63111
63111-23020 Panel, Roof[02.1993 - 04.1997] GX70 |
63111-23020 |
US $1,054.14 |
||
|
63111
|
63111
63111-91619 Panel, Roof[10.1988 - 02.1993] GX70,LX76,YX76 |
63111-91619 |
US $1,054.14 |
||
|
63132
|
63132
63102-23020 Reinforcement Sub-Assy, Roof Panel, Front[10.1988 - 04.1997] GX70,LX76,YX7# |
63102-23020 |
US $51.40 |
||
|
63141H
|
63141H
63141-23900 Reinforcement, Roof Panel, Center[12.1988 - 04.1997] GX70,LX76,YX7# |
63141-23900 |
US $64.65 |
||
|
63143B
|
63143B
63143-23010 Reinforcement, Roof Panel, No.3[10.1988 - 04.1997] GX70,LX76,YX7# |
63143-23010 |
US $42.08 |
||
|
63155A
|
63155A
63155-22020 Plate, Roof Panel Reinforcement[10.1988 - 04.1997] GX70,LX76,YX7# |
63155-22020 |
US $2.18 |
||
