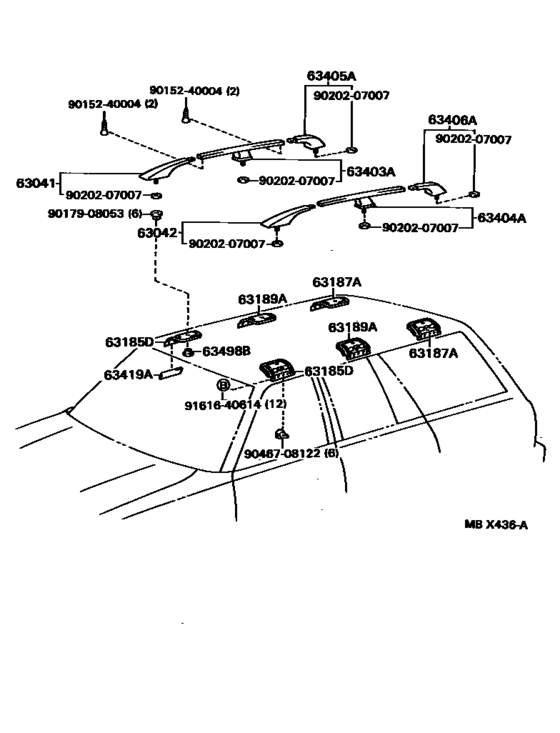

Roof Panel & Back Window Glass ([02.1993 - ] ｱﾘ(ﾙ-ﾌ ﾗﾂｸ) (9302- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63041
|
63041
63041-23010 Leg Sub-Assy, Roof Rack, Front Rh[02.1993 - 04.1997] GX70 |
63041-23010 |
US $168.90 |
||
|
63042
|
63042
63042-23010 Leg Sub-Assy, Roof Rack, Front Lh[02.1993 - 04.1997] GX70 |
63042-23010 |
US $168.90 |
||
|
63185D
|
63185D
63185-23010 Bracket, Roof Rack, Front[02.1993 - 04.1997] GX70 |
63185-23010 |
US $15.87 |
||
|
63187A
|
63187A
63187-23010 Bracket, Roof Rack, Rear[02.1993 - 04.1997] GX70 |
63187-23010 |
US $15.87 |
||
|
63189A
|
63189A
63189-23010 Bracket, Roof Rack, Center[02.1993 - 04.1997] GX70 |
63189-23010 |
US $15.87 |
||
|
63403A
|
63403A
63403-23010 Support Sub-Assy, Roof Rack, Center Rh[02.1993 - 04.1997] GX70 |
63403-23010 |
US $155.79 |
||
|
63404A
|
63404A
63404-23010 Support Sub-Assy, Roof Rack, Center Lh[02.1993 - 04.1997] GX70 |
63404-23010 |
US $155.79 |
||
|
63405A
|
63405A
63405-23010 Support Sub-Assy, Roof Rack, Rear[02.1993 - 04.1997] GX70 |
63405-23010 |
US $149.97 |
||
|
63406A
|
63406A
63406-23010 Support Sub-Assy, Roof Rack, Rear Lh[02.1993 - 04.1997] GX70 |
63406-23010 |
US $149.97 |
||
|
63419A
|
63419A
63419-23010 Cover, Roof Rack[02.1993 - 03.1993] GX70 |
63419-23010 |
US $3.93 |
||
|
63498B
|
63498B
63498-23010 Cap, Roof Carrier[02.1993 - 04.1997] GX70 |
63498-23010 |
US $1.75 |
||
|
9015240004
|
9015240004
90152-40004 New Genuine Part |
90152-40004 |
US $1.60 |
||
|
9017908053
|
9017908053
90179-08053 Nut (For Differential Side Gear Shaft) |
90179-08053 |
from US $1.44 |
||
|
9020207007
|
9020207007
90202-07007 New Genuine Part |
90202-07007 |
US $1.89 |
||
|
9046708122
|
9046708122
90467-08122 Clip, Roof Headlining |
90467-08122 |
US $2.62 |
||
|
9161640614
|
9161640614
91616-40614
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91616-40614 |
— | ||
| replacement | |||||
|
9161640614
|
9161640614
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
