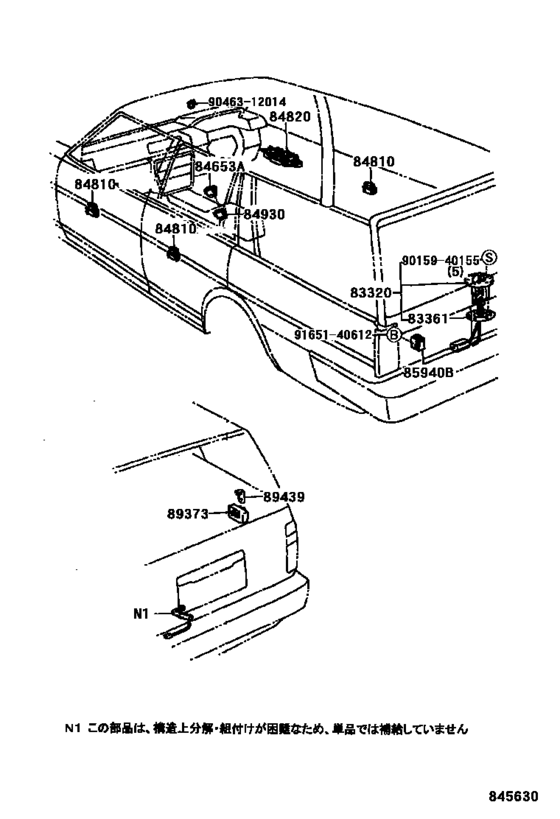

Switch & Relay & Computer ([10.1988 - ] (8810- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80013 Gage Assy, Fuel Sender[10.1988 - 04.1997] GX70,YX7# |
83320-80013 |
US $106.29 |
||
|
83361
|
83361
77169-14020 Gasket, Fuel Tank Vent[10.1988 - 04.1997] GX70,LX76,YX7# |
77169-14020 |
from US $3.30 |
||
|
84653A
|
84653A
84653-22020 Switch, Rear Wiper[10.1988 - 08.1990] GX70,YX76..GL,LG |
84653-22020 |
US $63.34 |
||
|
84810
|
84810
84810-23010 Switch Assy, Power Window Regulator[10.1993 - 04.1997] GX70 FRONT DOOR LH |
84810-23010 |
US $47.76 |
||
| replacement | |||||
|
84810
|
84810
84810-33010 Switch Assy, Power Window Regulator[10.1993 - 04.1997] GX70 FRONT DOOR LH |
84810-33010 |
US $47.76 |
||
|
84810
|
84810
84810-32050
Switch Assy, Power Window Regulator
[08.1990 - 02.1993] GX70 FRONT DOOR LH |
84810-32050 |
— | ||
| replacement | |||||
|
84810
|
84810
84810-30130 Switch Assy, Power Window Regulator[08.1990 - 02.1993] GX70 FRONT DOOR LH |
84810-30130 |
US $62.66 |
||
|
84810
|
84810
84810-33010 Switch Assy, Power Window Regulator[02.1993 - 10.1993] GX70 FRONT DOOR LH |
84810-33010 |
US $47.76 |
||
|
84820
|
84820
84820-23010 Master Switch Assy, Power Window Regulator[02.1993 - 10.1993] GX70 |
84820-23010 |
US $228.59 |
||
|
84820
|
84820
84820-23011 Master Switch Assy, Power Window Regulator[10.1993 - 04.1997] GX70 |
84820-23011 |
US $228.59 |
||
| replacement | |||||
|
84820
|
84820
84820-23010 Master Switch Assy, Power Window Regulator[10.1993 - 04.1997] GX70 |
84820-23010 |
US $228.59 |
||
|
84820
|
84820
84820-32090 Master Switch Assy, Power Window Regulator[10.1988 - 02.1993] GX70 |
84820-32090 |
US $291.20 |
||
|
85940B
|
85940B
85940-22180 Relay Assy, Rear Wiper[08.1990 - 04.1997] GX70 |
85940-22180 |
US $173.26 |
||
|
89373
|
89373
89373-23010 Sensor, Lamp Failure Indicator[10.1988 - 02.1993] GX70 |
89373-23010 |
US $262.08 |
||
|
89373
|
89373
89373-23050 Sensor, Lamp Failure Indicator[08.1990 - 02.1993] GX70 ｸﾞﾗﾝﾃﾞ ｴﾃﾞｲｼﾖﾝ |
89373-23050 |
US $219.86 |
||
|
89439
|
89439
89439-23010
Bracket, Sensor
[10.1988 - 04.1997] GX70 |
89439-23010 |
— | ||
|
9015940155
|
9015940155
90159-40155 SCREW WWASHER |
90159-40155 |
US $2.15 |
||
|
9046312014
|
9046312014
90463-12014 Clamp, Hood Lock Control Wire |
90463-12014 |
US $1.97 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
