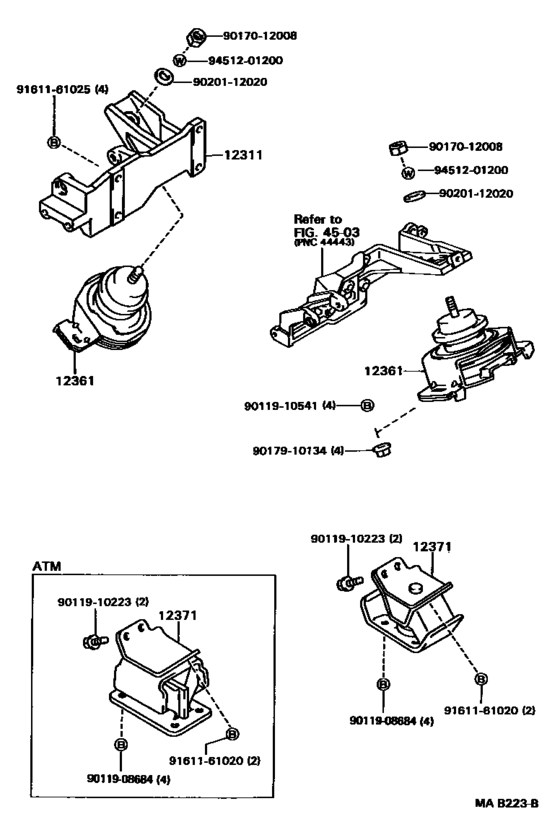

Mounting ([08.1988 - 08.1993] (8808-9308)2L#) Diagram Toyota MARK 2
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-54130
Bracket, Engine Mounting, Front No.1 Rh
[08.1988 - 08.1990] 2L#..LX80 |
12311-54130 |
— | ||
|
12311
|
12311
12311-54190
Bracket, Engine Mounting, Front No.1 Rh
[08.1990 - 08.1993] 2L#..LX80 |
12311-54190 |
— | ||
| replacement | |||||
|
12311
|
12311
12311-54191
Bracket, Engine Mounting, Front No.1 Rh
[08.1990 - 08.1993] 2L#..LX80 |
12311-54191 |
— | ||
|
12361
|
12361
12361-54152 Insulator, Engine Mounting, Front[08.1988 - 03.1989] 2L#..LX80 |
12361-54152 |
US $161.62 |
||
| replacement | |||||
|
12361
|
12361
12361-54181 Insulator, Engine Mounting, Front[08.1988 - 03.1989] 2L#..LX80 |
12361-54181 |
US $212.80 |
||
|
12361
|
12361
12361-54153
Insulator, Engine Mounting, Front
[03.1989 - 10.1989] 2L#..LX80 |
12361-54153 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-54181 Insulator, Engine Mounting, Front[03.1989 - 10.1989] 2L#..LX80 |
12361-54181 |
US $212.80 |
||
|
12371
|
12371
12371-34030 Insulator, Engine Mounting, Rear No.1[08.1988 - 02.1993] 3YP..YX80; 2L#..LX80..5F; 4SF#..SX80..5F |
12371-34030 |
from US $59.34 |
||
|
9011908684
|
9011908684
90119-08684 New Genuine Part |
90119-08684 |
US $2.15 |
||
|
9011910223
|
9011910223
90119-10223 Bolt(For Transaxle & Engine Setting) |
90119-10223 |
US $2.15 |
||
|
9011910541
|
9011910541
90119-10541 New Genuine Part |
90119-10541 |
US $3.40 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
US $2.87 |
||
|
9017910134
|
9017910134
90179-10134 NUT WWASHER |
90179-10134 |
US $4.30 |
||
|
9020112020
|
9020112020
90201-12020 New Genuine Part |
90201-12020 |
US $2.87 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
