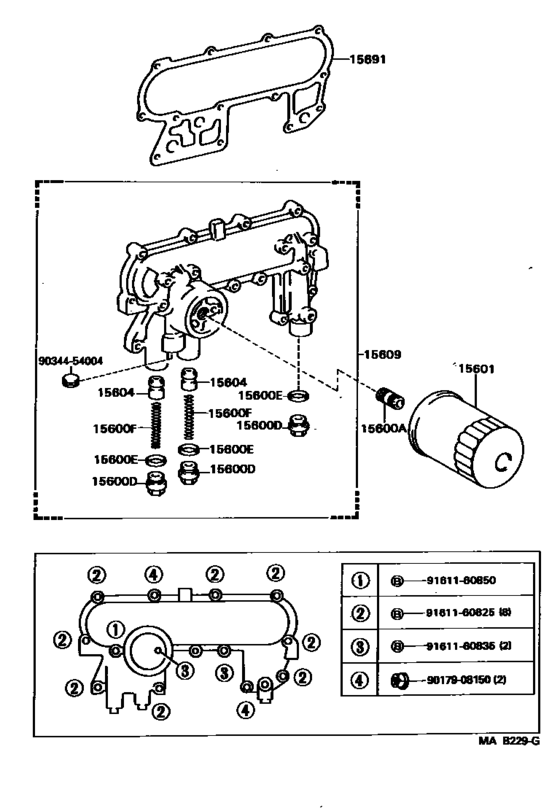

Oil Filter ([08.1988 - 08.1993] (8808-9308)2L) Diagram Toyota MARK 2
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600A
|
15600A
15116-54020 Union(For Oil Filter)[08.1988 - 06.1991] 2L#..LX80 |
15116-54020 |
US $104.83 |
||
| replacement | |||||
|
15600A
|
15600A
15116-54021 Union(For Oil Filter)[08.1988 - 06.1991] 2L#..LX80 |
15116-54021 |
from US $15.42 |
||
|
15600A
|
15600A
15116-54021 Union(For Oil Filter)[06.1991 - 08.1993] 2L#..LX80 |
15116-54021 |
from US $15.42 |
||
|
15600D
|
15600D
90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)[08.1988 - 08.1993] 2L#..LX80 |
90341-18015 |
US $2.62 |
||
|
15600E
|
15600E
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[07.1989 - 12.1991] 2L#..LX80 |
90430-18001 |
US $3.05 |
||
|
15600E
|
15600E
90430-18011 Washer(For Oil Filter)[08.1988 - 07.1989] 2L#..LX80 |
90430-18011 |
US $2.33 |
||
| replacement | |||||
|
15600E
|
15600E
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[08.1988 - 07.1989] 2L#..LX80 |
90430-18001 |
US $3.05 |
||
|
15600E
|
15600E
90430-18021 Washer(For Oil Filter)[12.1991 - 08.1993] 2L#..LX80 |
90430-18021 |
US $0.96 |
||
|
15600F
|
15600F
90501-16026 Spring, Compression(For Oil Filter)[08.1988 - 08.1993] 2L#..LX80 |
90501-16026 |
from US $0.96 |
||
|
15601
|
15601
90915-03006
Filter Sub-Assy, Oil
[08.1988 - 08.1989] 2L#..LX80 |
90915-03006 |
— | ||
| replacement | |||||
|
15601
|
15601
90915-30002 Filter Sub-Assy, Oil[08.1988 - 08.1989] 2L#..LX80 |
90915-30002 |
from US $48.93 |
||
| replacement | |||||
|
15601
|
15601
90915-30002-8T Oil Filter (Thailand)(Thailand) [08.1988 - 08.1989] 2L#..LX80 |
90915-30002-8T |
US $22.58 |
||
|
15601
|
15601
90915-30002 Filter Sub-Assy, Oil[06.1991 - 08.1993] 2L#..LX80 |
90915-30002 |
from US $48.93 |
||
| replacement | |||||
|
15601
|
15601
90915-30002-8T Oil Filter (Thailand)(Thailand) [06.1991 - 08.1993] 2L#..LX80 |
90915-30002-8T |
US $22.58 |
||
|
15604
|
15604
15131-54010 Valve, Oil Pump Relief[08.1988 - 08.1993] 2L#..LX80 |
15131-54010 |
from US $5.07 |
||
|
15609
|
15609
15609-54081
Bracket Sub-Assy, Oil Filter
[08.1988 - 08.1993] 2L..LX80 |
15609-54081 |
— | ||
|
15691
|
15691
15692-54030
Gasket, Oil Filter
[08.1988 - 08.1993] 2L#..LX80 |
15692-54030 |
— | ||
| replacement | |||||
|
15691
|
15691
15692-54050 Gasket, Oil Filter[08.1988 - 08.1993] 2L#..LX80 |
15692-54050 |
from US $8.33 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9034454004
|
9034454004
90344-54004 Plug, Taper Screw(For Oil Filter Bracket) |
90344-54004 |
US $4.80 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
||
