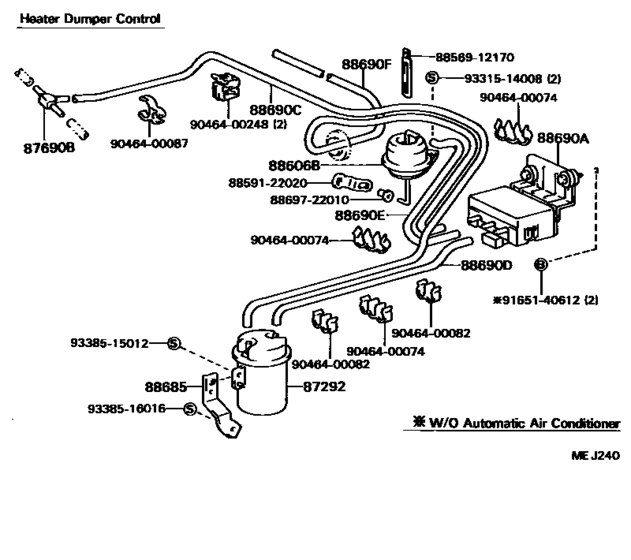

Heating & Air Conditioning - Vacuum Piping ([08.1984 - 08.1986] (8408-8608)GX7#,SX70..GR,LG) Diagram Toyota MARK 2
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- SX70
- grade
- GR
- body
- SED
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87292
|
87292
87292-22040
Tank, Vacuum
[08.1986 - 08.1988] GX7#,SX70..GR,LG |
87292-22040 |
— | ||
|
87292
|
87292
88683-32010
Tank, Vacuum
[08.1984 - 08.1986] GX7#,LX70,SX70..GR,LG |
88683-32010 |
— | ||
|
87690B
|
87690B
90413-03001 Way, 3[08.1986 - 08.1988] GX7#,LX70,SX70..GR,LG W/*AAC |
90413-03001 |
US $4.08 |
||
|
87690B
|
87690B
90413-04001 Way, 3(For Transfer Breather Hose)[08.1984 - 08.1986] GX7#,SX70..GR,LG |
90413-04001 |
US $5.56 |
||
|
87690B
|
87690B
90413-04005 Way, 3, No.1 (For Front Drive Shift)[08.1986 - 08.1988] LX7#,SX70..DX,GL,GR,STD |
90413-04005 |
from US $3.40 |
||
|
88606B
|
88606B
88606-22050
Diaphragm Sub-Assy, Cooler
[08.1984 - 08.1986] GX7#,SX70..GR,LG W/*AAC |
88606-22050 |
— | ||
|
88606B
|
88606B
88606-22051
Diaphragm Sub-Assy, Cooler
[08.1986 -] GX7#,SX70..GR,LG W/*AAC |
88606-22051 |
— | ||
|
88685
|
88685
88688-22260
Bracket, Air Conditioner Control Vacuum Tank
[08.1984 - 08.1988] GX7#,SX70..GR,LG |
88688-22260 |
— | ||
|
88690A
|
88690A
88690-22320
Valve Assy, Combination
[08.1984 - 08.1986] GX7#,MX71,SX70..GD,GR,GT,LG W/*AAC |
88690-22320 |
— | ||
| replacement | |||||
|
88690A
|
88690A
88690-22321
Valve Assy, Combination
[08.1984 - 08.1986] GX7#,MX71,SX70..GD,GR,GT,LG W/*AAC |
88690-22321 |
— | ||
|
88690A
|
88690A
88690-22480
Valve Assy, Combination
[08.1986 - 08.1988] GX7#,SX70..GR,LG W/*AAC |
88690-22480 |
— | ||
|
88690C
|
88690C
88689-22050
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[08.1984 - 08.1986] GX7#,SX70..GR,LG W/*AAC |
88689-22050 |
— | ||
|
88690C
|
88690C
88689-22130
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[08.1986 - 08.1988] GX7#,LX70,SX70..GR,LG W/*AAC |
88689-22130 |
— | ||
|
88690C
|
88690C
88807-22230
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[08.1986 - 08.1988] SX70..GR |
88807-22230 |
— | ||
|
88690D
|
88690D
88689-22120
Hose, Vacuum, No.2 (For Heater Or Air Conditioner)
[08.1986 - 08.1988] GX7#,LX70,SX70..GR,LG W/*AAC |
88689-22120 |
— | ||
|
88690D
|
88690D
88807-22270
Hose, Vacuum, No.2 (For Heater Or Air Conditioner)
[08.1986 - 08.1988] SX70..GL,GR,STD |
88807-22270 |
— | ||
|
88690D
|
88690D
95411-10260 Hose (For Idle Up Device)[08.1984 - 08.1986] GX7#,SX70..GR,LG ＊Ｈ，Ｌ＝４５０，マーク＝＃２,W/*AAC; LX70..GR ＊Ｈ，Ｌ＝４２０，マーク＝＃２,W/*AAC |
95411-10260 |
US $11.65 |
||
| replacement | |||||
|
88690D
|
88690D
90999-92003
Hose, Breather (For Transfer Case)
[08.1984 - 08.1986] GX7#,SX70..GR,LG ＊Ｈ，Ｌ＝４５０，マーク＝＃２,W/*AAC; LX70..GR ＊Ｈ，Ｌ＝４２０，マーク＝＃２,W/*AAC |
90999-92003 |
— | ||
|
88690E
|
88690E
88689-22090
Hose, Vacuum, No.3 (For Heater Or Air Conditioner)
[08.1986 - 08.1988] GX7#,LX70,SX70..GR,LG W/*AAC |
88689-22090 |
— | ||
|
88690E
|
88690E
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1984 - 08.1986] GX7#,SX70..GR,LG ＊Ｈ，Ｌ＝２２０，マーク＝＃３,W/*AAC |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
88690E
|
88690E
90999-92002
Air Hose (300 mm)
[08.1984 - 08.1986] GX7#,SX70..GR,LG ＊Ｈ，Ｌ＝２２０，マーク＝＃３,W/*AAC |
90999-92002 |
— | ||
|
88690F
|
88690F
88689-22040
Hose, Vacuum, No.4 (For Heater Or Air Conditioner)
[08.1984 - 08.1986] GX7#,SX70..GR,LG W/*AAC |
88689-22040 |
— | ||
|
88690F
|
88690F
88689-22041
Hose, Vacuum, No.4 (For Heater Or Air Conditioner)
[08.1986 - 08.1988] GX7#,SX70..GR,LG W/*AAC |
88689-22041 |
— | ||
| replacement | |||||
|
88690F
|
88690F
88689-22081
Hose, Vacuum, No.4 (For Heater Or Air Conditioner)
[08.1986 - 08.1988] GX7#,SX70..GR,LG W/*AAC |
88689-22081 |
— | ||
|
8856912170
|
8856912170
88569-12170
Clamp (for Cooler Relay)
|
88569-12170 |
— | ||
|
8859122020
|
8859122020
88591-22020
Guide, Cooler Box Air
|
88591-22020 |
— | ||
|
8869722010
|
8869722010
88697-22010
Collar (for Blower Drive Shaft)
|
88697-22010 |
— | ||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400087
|
9046400087
90464-00087 New Genuine Part |
90464-00087 |
US $6.99 |
||
|
9046400248
|
9046400248
90464-00248 New Genuine Part |
90464-00248 |
US $1.89 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.10 |
||
|
9338515012
|
9338515012
93385-15012 SCREW |
93385-15012 |
US $2.87 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
