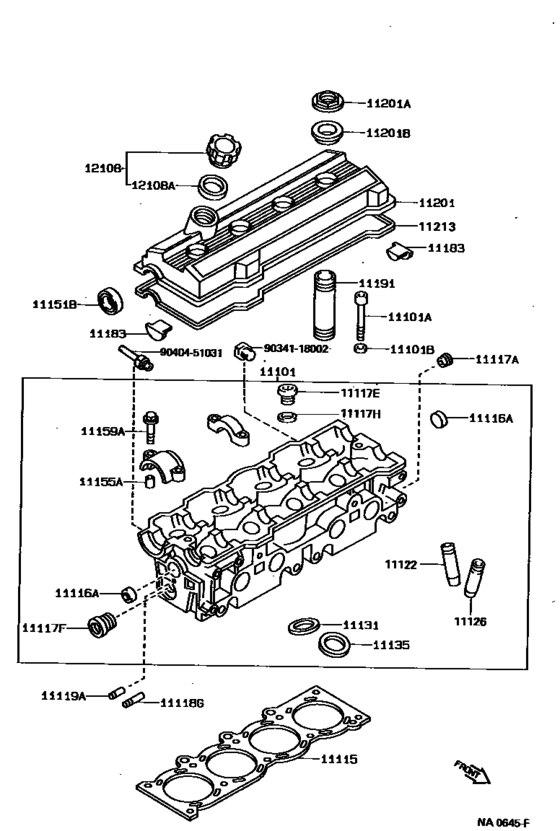

Cylinder Head ([08.1988 - ] (8808- )4SF#) Diagram Toyota MARK 2
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- SX80
- grade
- GR
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 08.1990
- To
- 12.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-74140 Head Sub-Assy, Cylinder[08.1990 - 01.1992] 4SFE..SX80 |
11101-74140 |
US $2,154.88 |
||
| replacement | |||||
|
11101
|
11101
11101-74141 Head Sub-Assy, Cylinder[08.1990 - 01.1992] 4SFE..SX80 |
11101-74141 |
US $2,154.88 |
||
|
11101
|
11101
11101-74141 Head Sub-Assy, Cylinder[01.1992 - 10.1992] 4SFE..SX80 |
11101-74141 |
US $2,154.88 |
||
|
11101A
|
11101A
90109-10132 Bolt(For Cylinder Head Set)[07.1989 - 10.1992] 4SF#..SX80 |
90109-10132 |
from US $4.13 |
||
|
11101B
|
11101B
90201-11026 Washer, Plate(For Cylinder Head Set)[07.1989 - 10.1992] 4SF#..SX80 |
90201-11026 |
from US $1.66 |
||
|
11115
|
11115
11115-74060 Gasket, Cylinder Head[06.1990 - 10.1992] 4SF#..SX80 厚さ＝１．２５ |
11115-74060 |
from US $70.67 |
||
|
11116A
|
11116A
96411-42800 Plug, Tight, No.1[08.1988 - 10.1992] 4SF#..SX80 |
96411-42800 |
from US $2.89 |
||
|
11117A
|
11117A
90344-53011 Plug, W/head Taper Screw, No.1[08.1988 - 10.1992] 4SF#..SX80 |
90344-53011 |
US $4.30 |
||
|
11117E
|
11117E
90341-24090 Plug, W/head Taper Screw, No.1[08.1988 - 10.1992] 4SF#..SX80 |
90341-24090 |
US $4.89 |
||
|
11117F
|
11117F
90341-32031 Plug, W/head Straight Screw, No.2[08.1988 - 10.1992] 4SF#..SX80 |
90341-32031 |
US $7.16 |
||
|
11117H
|
11117H
90430-24246 Gasket(For Cylinder Head Screw Plug)[08.1988 - 10.1992] 4SF#..SX80 |
90430-24246 |
from US $1.03 |
||
|
11118G
|
11118G
90249-06084 Pin, Slotted Spring, No.1[08.1988 - 10.1992] 4SF#..SX80 |
90249-06084 |
US $2.18 |
||
|
11119A
|
11119A
90250-06003 Pin, Straight[08.1988 - 10.1992] 4SF#..SX80 長さ＝１４，外径＝６ |
90250-06003 |
US $1.61 |
||
|
11122
|
11122
11122-16010
Bush, Intake Valve Guide
[08.1988 - 10.1992] 4SF#..SX80 ＳＴＤ |
11122-16010 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-16020 Bush, Intake Valve Guide[08.1988 - 10.1992] 4SF#..SX80 ＳＴＤ |
11122-16020 |
from US $10.26 |
||
|
11122
|
11122
11123-16010 Bush, Intake Valve Guide[08.1988 - 10.1992] 4SF#..SX80 Ｏ／Ｓ ０．０５ |
11123-16010 |
US $11.36 |
||
|
11126
|
11126
11122-16010
Bush, Intake Valve Guide
[08.1988 - 10.1992] 4SF#..SX80 ＳＴＤ |
11122-16010 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[08.1988 - 10.1992] 4SF#..SX80 ＳＴＤ |
11122-16020 |
from US $10.26 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[08.1988 - 10.1992] 4SF#..SX80 Ｏ／Ｓ ０．０５ |
11123-16010 |
US $11.36 |
||
|
11131
|
11131
11131-74020 Seat, Intake Valve[08.1988 - 10.1992] 4SF#..SX80 ＳＴＤ |
11131-74020 |
US $38.88 |
||
|
11131
|
11131
11132-74020 Seat, Intake Valve[08.1988 - 10.1992] 4SF#..SX80 Ｏ／Ｓ ０．０３ |
11132-74020 |
US $17.76 |
||
|
11135
|
11135
11135-74030 Seat, Exhaust Valve[08.1988 - 10.1992] 4SF#..SX80 ＳＴＤ |
11135-74030 |
US $15.29 |
||
|
11135
|
11135
11136-74030 Seat, Exhaust Valve[08.1988 - 10.1992] 4SF#..SX80 Ｏ／Ｓ ０．０３ |
11136-74030 |
US $9.46 |
||
|
11151B
|
11151B
90311-38017
Seal, Oil(For Camshaft Setting)
[08.1988 - 06.1991] 4SF#..SX80 |
90311-38017 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-38067 Seal, Oil(For Camshaft Setting)[08.1988 - 06.1991] 4SF#..SX80 |
90311-38067 |
from US $7.17 |
||
|
11151B
|
11151B
90311-38046
Seal, Oil(For Camshaft Setting)
[06.1991 - 10.1992] 4SFE..SX80 |
90311-38046 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-38067 Seal, Oil(For Camshaft Setting)[06.1991 - 10.1992] 4SFE..SX80 |
90311-38067 |
from US $7.17 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[08.1988 - 10.1992] 4SF#..SX80 |
90253-10004 |
US $2.15 |
||
|
11159A
|
11159A
90119-07005
Bolt(For Head To Camshaft Bearing Cap)
[08.1988 - 12.1990] 4SF#..SX80 |
90119-07005 |
— | ||
| replacement | |||||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[08.1988 - 12.1990] 4SF#..SX80 |
90119-07009 |
from US $0.84 |
||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[12.1990 - 10.1992] 4SFE..SX80 |
90119-07009 |
from US $0.84 |
||
|
11183
|
11183
11183-74010 Plug, Semicircular[08.1988 - 10.1992] 4SF#..SX80 |
11183-74010 |
from US $6.77 |
||
|
11191
|
11191
11191-74030 Tube, Spark Plug[06.1989 - 10.1992] 4SF#..SX80 |
11191-74030 |
from US $14.08 |
||
|
11201
|
11201
11201-74010 Cover Sub-Assy, Cylinder Head[08.1988 - 10.1992] 4SF#..SX80 |
11201-74010 |
US $320.32 |
||
| replacements | |||||
|
11201
|
11201
11201-74081 Cover Sub-Assy, Cylinder Head[08.1988 - 10.1992] 4SF#..SX80 |
11201-74081 |
US $301.39 |
||
|
11201
|
11201
12204-74020 Valve Sub-Assy, Ventilation[08.1988 - 10.1992] 4SF#..SX80 |
12204-74020 |
from US $17.65 |
||
|
11201
|
11201
12261-74160 Hose, Ventilation[08.1988 - 10.1992] 4SF#..SX80 |
12261-74160 |
US $9.17 |
||
|
11201
|
11201
12261-74170 Hose, Ventilation[08.1988 - 10.1992] 4SF#..SX80 |
12261-74170 |
US $11.07 |
||
|
11201
|
11201
12262-74090 Hose, Ventilation, No.2[08.1988 - 10.1992] 4SF#..SX80 |
12262-74090 |
US $10.48 |
||
|
11201
|
11201
12262-74110 Hose, Ventilation, No.2[08.1988 - 10.1992] 4SF#..SX80 |
12262-74110 |
US $12.67 |
||
|
11201
|
11201
90480-18001 Grommet(For Ventilation System)[08.1988 - 10.1992] 4SF#..SX80 |
90480-18001 |
from US $3.71 |
||
|
11201
|
11201
11201-74060 Cover Sub-Assy, Cylinder Head[09.1994 - 12.1995] 4SFE..SX80 |
11201-74060 |
US $299.94 |
||
| replacement | |||||
|
11201
|
11201
11201-74081 Cover Sub-Assy, Cylinder Head[09.1994 - 12.1995] 4SFE..SX80 |
11201-74081 |
US $301.39 |
||
|
11201A
|
11201A
90179-28004 Nut, Cap(For Cylinder Head Cover)[08.1988 - 10.1992] 4SF#..SX80 |
90179-28004 |
from US $1.42 |
||
|
11201B
|
11201B
90480-30025 Washer, Seal(For Cylinder Head Cover)[08.1988 - 10.1992] 4SF#..SX80 |
90480-30025 |
from US $3.90 |
||
|
11213
|
11213
11213-74020 Gasket, Cylinder Head Cover[08.1988 - 10.1992] 4SF#..SX80 |
11213-74020 |
from US $15.44 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 1GFE,1GGTE,1GGZE..GX81 |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 1GFE,1GGTE,1GGZE..GX81 |
12180-55010 |
from US $11.29 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[12.1993 - 12.1995] 4SFE..SX80; 1GFE..GX81 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 1GFE,1GGTE,1GGZE..GX81 |
90430-37140 |
from US $1.17 |
||
|
9034118002
|
9034118002
90341-18002 Plug, No.1 |
90341-18002 |
from US $3.59 |
||
|
9040451031
|
9040451031
90404-51031 Union, Vacuum Hose(For Manifold Side) |
90404-51031 |
US $8.21 |
||
