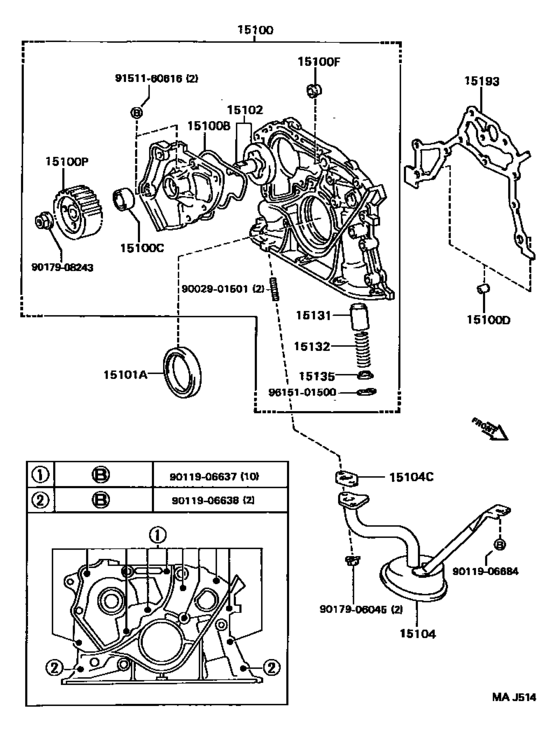

Engine Oil Pump ([08.1995 - ] (9508- )4SFE) Diagram Toyota MARK 2
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- SX80
- grade
- GR
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 08.1990
- To
- 12.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-74010
Pump Assy, Oil
[08.1988 - 10.1992] 4SF#..SX80 |
15100-74010 |
— | ||
| replacements | |||||
|
15100
|
15100
15100-74060 Pump Assy, Oil[08.1988 - 10.1992] 4SF#..SX80 |
15100-74060 |
from US $95.43 |
||
|
15100
|
15100
15197-74040 Gasket, Oil Pump[08.1988 - 10.1992] 4SF#..SX80 |
15197-74040 |
from US $7.08 |
||
|
15100
|
15100
15100-74060 Pump Assy, Oil[08.1995 - 12.1995] 4SFE..SX80 |
15100-74060 |
from US $95.43 |
||
|
15100B
|
15100B
15188-63010 Ring, O(For Oil Pump)[08.1988 - 10.1992] 4SF#..SX80 |
15188-63010 |
from US $15.52 |
||
|
15100B
|
15100B
15188-88382
Ring, O(For Oil Pump)
[04.1993 - 05.1993] 4SFE..SX80..GL,GR;4SFE..SX80..4FC..KYO |
15188-88382 |
— | ||
| replacement | |||||
|
15100B
|
15100B
15188-74050 Ring, O(For Oil Pump)[04.1993 - 05.1993] 4SFE..SX80..GL,GR;4SFE..SX80..4FC..KYO |
15188-74050 |
from US $5.99 |
||
|
15100C
|
15100C
15165-70010 Seal(For Oil Pump)[08.1988 - 10.1992] 1GGE,1GGZE..GX81; 4SF#..SX80 |
15165-70010 |
from US $7.16 |
||
|
15100C
|
15100C
15165-74020 Seal(For Oil Pump)[04.1993 - 05.1993] 4SFE..SX80..GL,GR;4SFE..SX80..4FC..KYO |
15165-74020 |
from US $7.47 |
||
|
15100D
|
15100D
90253-09001 Pin, Ring W/head[08.1988 - 10.1992] 4SF#..SX80 |
90253-09001 |
from US $1.07 |
||
|
15100F
|
15100F
90029-38302 Bush (For Oil Pump)[11.1989 - 10.1992] 4SF#..SX80; 1GFE,1GG#..GX81 |
90029-38302 |
US $2.62 |
||
|
15100P
|
15100P
13524-74020 Pulley, Oil Pump Drive Shaft[08.1988 - 10.1992] 4SF#..SX80 |
13524-74020 |
from US $19.66 |
||
|
15101A
|
15101A
90311-42026 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[09.1989 - 10.1992] 4SF#..SX80 |
90311-42026 |
from US $6.27 |
||
|
15102
|
15102
15102-63010 Rotor Set, Oil Pump[08.1988 - 10.1992] 4SF#..SX80 |
15102-63010 |
from US $40.31 |
||
|
15104
|
15104
15104-74040 Strainer Sub-Assy, Oil[08.1988 - 10.1992] 4SF#..SX80 |
15104-74040 |
US $56.06 |
||
|
15104C
|
15104C
15149-74020 Gasket(For Oil Strainer)[07.1989 - 10.1992] 4SF#..SX80 |
15149-74020 |
from US $4.23 |
||
|
15104C
|
15104C
15149-74030 Gasket(For Oil Strainer)[09.1993 - 12.1995] 4SFE..SX80 |
15149-74030 |
from US $2.65 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 1GFE,1GG#..GX81; 3YP..YX80 |
15131-24010 |
from US $3.98 |
||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[08.1988 - 10.1992] 4SF#..SX80; 1GFE,1GG#..GX81; 3YP..YX80 |
15132-40010 |
from US $2.83 |
||
|
15135
|
15135
15135-15010 Retainer, Oil Pump Relief Valve[08.1988 - 10.1992] 4SF#..SX80 |
15135-15010 |
US $5.38 |
||
|
15193
|
15193
15197-63021 Gasket, Oil Pump[07.1989 - 10.1992] 4SF#..SX80 |
15197-63021 |
from US $4.76 |
||
|
15193
|
15193
15197-74030 Gasket, Oil Pump[09.1993 - 08.1995] 4SFE..SX80 |
15197-74030 |
from US $7.14 |
||
|
15193
|
15193
15197-74040 Gasket, Oil Pump[08.1995 - 12.1995] 4SFE..SX80 |
15197-74040 |
from US $7.08 |
||
|
9002901501
|
9002901501
90029-01501 Bolt,stud(For Oil Pump) |
90029-01501 |
US $1.60 |
||
|
9011906637
|
9011906637
90119-06637 Bolt(For Cylinder Head Cover) |
90119-06637 |
from US $1.01 |
||
|
9011906638
|
9011906638
90119-06638 New Genuine Part |
90119-06638 |
US $1.60 |
||
|
9011906684
|
9011906684
90119-06684 New Genuine Part |
90119-06684 |
US $1.51 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9017908243
|
9017908243
90179-08243 New Genuine Part |
90179-08243 |
US $2.33 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
|
9615101500
|
9615101500
96151-01500 Ring, Hole Snap (For Pressure Regulator Valve Set) |
96151-01500 |
US $3.05 |
||
