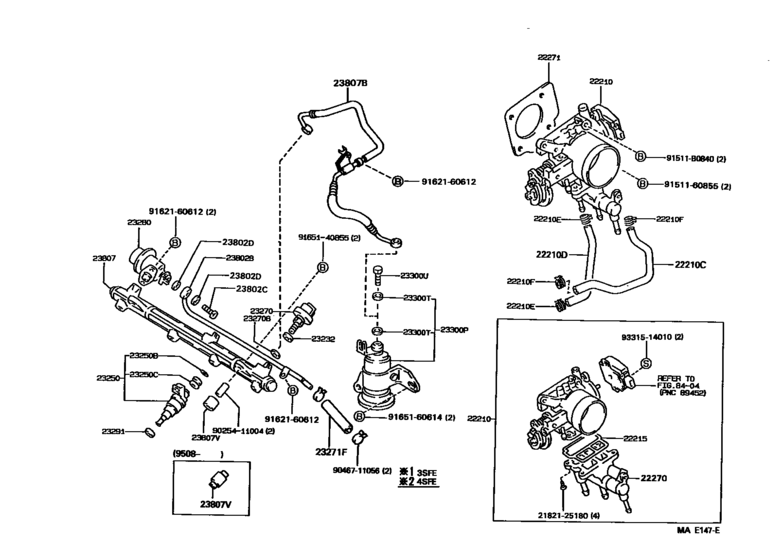

Fuel Injection System ([08.1990 - ] (9008- )4SFE) Diagram Toyota MARK 2
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- SX80
- grade
- GR
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 08.1990
- To
- 12.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-74570 Body Assy, Throttle[08.1990 - 04.1993] 4SFE..SX80..4FC |
22210-74570 |
US $1,218.67 |
||
|
22210
|
22210
22210-74571 Body Assy, Throttle[04.1993 - 09.1994] 4SFE..SX80..4FC |
22210-74571 |
US $1,217.22 |
||
|
22210
|
22210
22210-7A280 Body Assy, Throttle[09.1994 - 12.1995] 4SFE..SX80..4FC |
22210-7A280 |
US $1,217.22 |
||
|
22210C
|
22210C
16282-74060 Hose, Water By-Pass, No.1[08.1990 - 10.1992] 4SFE..SX80 |
16282-74060 |
US $11.21 |
||
|
22210D
|
22210D
16283-74030 Hose, Water By-Pass, No.1[08.1990 - 10.1992] 4SFE..SX80 |
16283-74030 |
US $7.72 |
||
|
22210E
|
22210E
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1990 - 10.1992] 4SFE..SX80 |
90467-13050 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1990 - 10.1992] 4SFE..SX80 |
96135-51300 |
from US $2.13 |
||
|
22210F
|
22210F
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1990 - 10.1992] 4SFE..SX80 |
90467-13050 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1990 - 10.1992] 4SFE..SX80 |
96135-51300 |
from US $2.13 |
||
|
22215
|
22215
22215-74400 Gasket, Throttle Body Cover[08.1990 - 10.1992] 4SFE..SX80 |
22215-74400 |
from US $3.53 |
||
|
22270
|
22270
22270-74120 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1990 - 04.1993] 4SFE..SX80..4FC |
22270-74120 |
US $601.33 |
||
|
22270
|
22270
22270-74150 Valve Assy, Idle Speed Control(For Thlottle Body)[04.1993 - 12.1995] 4SFE..SX80..4FC |
22270-74150 |
US $604.24 |
||
|
22271
|
22271
22271-74060 Gasket, Throttle Body[08.1990 - 10.1992] 4SFE..SX80 |
22271-74060 |
US $4.37 |
||
| replacement | |||||
|
22271
|
22271
22271-74062 Gasket, Throttle Body[08.1990 - 10.1992] 4SFE..SX80 |
22271-74062 |
US $4.51 |
||
|
22271
|
22271
22271-74061 Gasket, Throttle Body[10.1992 - 05.1993] 4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD |
22271-74061 |
US $4.37 |
||
| replacement | |||||
|
22271
|
22271
22271-74062 Gasket, Throttle Body[10.1992 - 05.1993] 4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD |
22271-74062 |
US $4.51 |
||
|
22271
|
22271
22271-74062 Gasket, Throttle Body[09.1993 - 12.1995] 4SFE..SX80 |
22271-74062 |
US $4.51 |
||
|
23232
|
23232
23232-28010
Gasket(For Fuel Pump Hose)
[08.1990 - 10.1990] 4SFE..SX80 |
23232-28010 |
— | ||
| replacement | |||||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[08.1990 - 10.1990] 4SFE..SX80 |
23232-41081 |
from US $1.40 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[10.1990 - 10.1992] 4SFE..SX80 |
23232-41081 |
from US $1.40 |
||
|
23232
|
23232
23279-74010 Gasket(For Fuel Pump Hose)[05.1995 - 12.1995] 4SFE..SX80 |
23279-74010 |
from US $1.11 |
||
|
23250
|
23250
23209-74110 Injector Assy, Fuel[08.1990 - 10.1992] 4SFE..SX80 |
23209-74110 |
US $275.18 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1990 - 10.1992] 4SFE..SX80 |
90301-07001 |
from US $2.85 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1990 - 10.1992] 4SFE..SX80 |
90480-13005 |
from US $2.42 |
||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[07.1993 - 12.1995] 4SFE..SX80 |
23207-46010 |
— | ||
|
23270
|
23270
23207-74010 Damper Assy, Fuel Pressure Pulsation[08.1990 - 10.1992] 4SFE..SX80 |
23207-74010 |
US $90.27 |
||
| replacement | |||||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[08.1990 - 10.1992] 4SFE..SX80 |
23207-46010 |
— | ||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[10.1990 - 10.1992] 4SFE..SX80 |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
23279-74010 Gasket(For Fuel Pump Hose)[05.1995 - 12.1995] 4SFE..SX80 |
23279-74010 |
from US $1.11 |
||
|
23270B
|
23270B
90430-12005 Gasket(For Water Hole)[08.1988 - 10.1990] 4SFE..SX80 |
90430-12005 |
from US $0.68 |
||
|
23271F
|
23271F
95333-06010 Hose, Fuel[08.1990 - 02.1992] 4SFE..SX80 |
95333-06010 |
US $5.38 |
||
|
23271F
|
23271F
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1993 - 12.1995] 4SFE..SX80 |
95333-06020 |
— | ||
| replacement | |||||
|
23271F
|
23271F
95337-06020 Hose, Differential Pressure Control[08.1993 - 12.1995] 4SFE..SX80 |
95337-06020 |
from US $10.21 |
||
|
23271F
|
23271F
95334-06009 Hose, Fuel[02.1992 - 10.1992] 4SFE..SX80 |
95334-06009 |
US $2.48 |
||
|
23271F
|
23271F
95334-06011 Hose, Fuel[10.1992 - 05.1993] 4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD |
95334-06011 |
US $4.37 |
||
| replacement | |||||
|
23271F
|
23271F
95337-06020 Hose, Differential Pressure Control[10.1992 - 05.1993] 4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD |
95337-06020 |
from US $10.21 |
||
|
23280
|
23280
23280-74100 Regulator Assy, Fuel Pressure[08.1990 - 10.1992] 4SFE..SX80 |
23280-74100 |
US $129.29 |
||
|
23280
|
23280
23280-74150 Regulator Assy, Fuel Pressure[08.1993 - 04.1994] 4SFE..SX80 |
23280-74150 |
US $131.04 |
||
| replacement | |||||
|
23280
|
23280
23280-74100 Regulator Assy, Fuel Pressure[08.1993 - 04.1994] 4SFE..SX80 |
23280-74100 |
US $129.29 |
||
|
23280
|
23280
23280-74151
Regulator Assy, Fuel Pressure
[04.1994 - 12.1995] 4SFE..SX80 |
23280-74151 |
— | ||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1990 - 10.1992] 4SFE..SX80 |
23291-41010 |
from US $2.61 |
||
|
23300P
|
23300P
23300-79195 Filter, Fuel(For Efi)[08.1988 - 12.1995] 4SF#..SX80 |
23300-79195 |
US $81.54 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1988 - 07.1991] 1GFE,1GG#..GX81; 1JZ#..JZX81; 4SF#..SX80 |
90430-12005 |
from US $0.68 |
||
|
23300T
|
23300T
90430-12026 Gasket[08.1991 - 12.1995] 4SFE..SX80; 1JZ#..JZX81; 1G#..GX81 |
90430-12026 |
from US $0.82 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1988 - 03.1993] 1JZGTE..JZX81; 4SF#..SX80; 1GFE,1GG#..GX81 |
90401-12097 |
from US $2.94 |
||
|
23802B
|
23802B
23802-74061 Pipe Sub-Assy, Fuel, No.2[08.1990 - 10.1992] 4SFE..SX80 |
23802-74061 |
US $51.11 |
||
|
23802B
|
23802B
23802-74062 Pipe Sub-Assy, Fuel, No.2[10.1992 - 05.1993] 4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD |
23802-74062 |
US $51.11 |
||
|
23802C
|
23802C
90401-08004 Bolt Union(For Oil Jet)[08.1990 - 10.1992] 4SFE..SX80 |
90401-08004 |
US $3.14 |
||
|
23802D
|
23802D
90430-08009
Gasket
[08.1990 - 10.1990] 4SFE..SX80 |
90430-08009 |
— | ||
| replacement | |||||
|
23802D
|
23802D
90430-08014 Gasket(For Oil Filter Outlet Pipe)[08.1990 - 10.1990] 4SFE..SX80 |
90430-08014 |
from US $0.80 |
||
|
23802D
|
23802D
90430-08014 Gasket(For Oil Filter Outlet Pipe)[10.1990 - 10.1992] 4SFE..SX80 |
90430-08014 |
from US $0.80 |
||
|
23807
|
23807
23807-74040 Pipe Sub-Assy, Fuel Delivery[08.1990 - 10.1992] 4SFE..SX80 |
23807-74040 |
US $189.28 |
||
| replacement | |||||
|
23807
|
23807
23807-74060 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [08.1990 - 10.1992] 4SFE..SX80 |
23807-74060 |
US $219.86 |
||
|
23807B
|
23807B
23271-74270 Hose, Fuel Delivery Pipe[08.1990 - 10.1992] 4SFE..SX80 |
23271-74270 |
US $173.26 |
||
|
23807V
|
23807V
90560-11020 Spacer, No.1(For Delivery Pipe)[08.1990 - 10.1992] 4SFE..SX80 |
90560-11020 |
US $2.33 |
||
|
23807V
|
23807V
90561-08053 Spacer, No.1(For Delivery Pipe)[08.1995 - 12.1995] 4SFE..SX80 |
90561-08053 |
from US $1.40 |
||
|
91511B0840
|
91511B0840
91511-B0840
Bolt(For Alternator)
|
91511-B0840 |
— | ||
| replacement | |||||
|
91511B0840
|
91511B0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $1.44 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $1.44 |
||
|
9025411004
|
9025411004
90254-11004 New Genuine Part |
90254-11004 |
US $6.84 |
||
|
9046711056
|
9046711056
90467-11056
Clamp Or Clip(For Water By-Pass Hose)
|
90467-11056 |
— | ||
| replacement | |||||
|
9046711056
|
9046711056
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
|
9151160855
|
9151160855
91511-60855 New Genuine Part |
91511-60855 |
US $2.33 |
||
| replacement | |||||
|
9151160855
|
9151160855
91511-B0855 BOLT FLANGE |
91511-B0855 |
US $3.05 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9165140855
|
9165140855
91651-40855 New Genuine Part |
91651-40855 |
US $1.05 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
