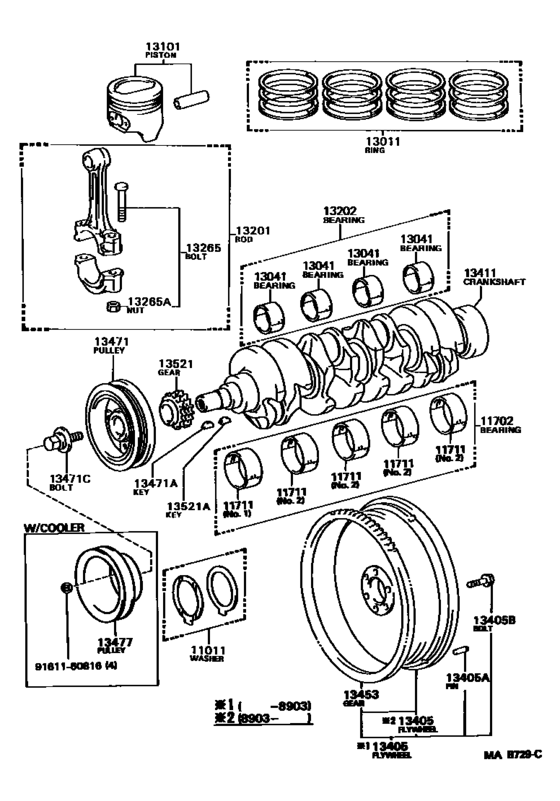

Crankshaft & Piston ([12.1988 - 02.1993] (8812-9302)2YJ ; (9302- )3YE) Diagram Toyota MARK 2
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- YX76
- grade
- DX
- body
- V
- ENGINE
- 2YJ
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 12.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[12.1988 - 04.1997] 2YJ,3YE..YX7# ＳＴＤ |
11011-25010 |
from US $20.67 |
||
|
11702
|
11702
11704-71020 Bearing Set, Crankshaft (0.25)[12.1988 - 12.1995] 2YJ,3YE..YX7# Ｕ／Ｓ ０．２５ |
11704-71020 |
US $206.17 |
||
|
11711
|
11711
11701-71020-01 Bearing, Crankshaft[12.1988 - 12.1995] 2YJ,3YE..YX7# MARK 1 |
11701-71020-01 |
US $45.43 |
||
|
11711
|
11711
11701-71020-02 Bearing, Crankshaft[12.1988 - 12.1995] 2YJ,3YE..YX7# MARK 2 |
11701-71020-02 |
US $45.43 |
||
|
11711
|
11711
11701-71020-03 Bearing, Crankshaft[12.1988 - 12.1995] 2YJ,3YE..YX7# MARK 3 |
11701-71020-03 |
US $45.43 |
||
|
13011
|
13011
13011-71021
Ring Set, Piston
[12.1988 - 05.1996] 2YJ,3YE..YX7# ＳＴＤ |
13011-71021 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-71012
Ring Set, Piston (STD)
[12.1988 - 05.1996] 2YJ,3YE..YX7# ＳＴＤ |
13011-71012 |
— | ||
|
13011
|
13011
13013-71021 Ring Set, Piston (0.50)[12.1988 - 04.1997] 2YJ,3YE..YX7# Ｏ／Ｓ ０．５０ |
13013-71021 |
US $227.14 |
||
|
13011
|
13011
13014-71021 Ring Set, Piston (0.75)[12.1988 - 04.1997] 2YJ,3YE..YX7# Ｏ／Ｓ ０．７５ |
13014-71021 |
US $204.42 |
||
|
13011
|
13011
13015-71021 Ring Set, Piston (1.00)[12.1988 - 04.1997] 2YJ,3YE..YX7# Ｏ／Ｓ １．００ |
13015-71021 |
US $135.41 |
||
|
13041
|
13041
13041-71011-06
Bearing, Connecting Rod
[12.1988 - 04.1997] 2YJ,3YE..YX7# MARK 6 |
13041-71011-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-06 Bearing, Connecting Rod[12.1988 - 04.1997] 2YJ,3YE..YX7# MARK 6 |
13041-73010-06 |
from US $18.54 |
||
|
13041
|
13041
13041-71011-07
Bearing, Connecting Rod
[12.1988 - 04.1997] 2YJ,3YE..YX7# MARK 7 |
13041-71011-07 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-07 Bearing, Connecting Rod[12.1988 - 04.1997] 2YJ,3YE..YX7# MARK 7 |
13041-73010-07 |
US $34.42 |
||
|
13041
|
13041
13041-71011-08
Bearing, Connecting Rod
[12.1988 - 04.1997] 2YJ,3YE..YX7# MARK 8 |
13041-71011-08 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-08 Bearing, Connecting Rod[12.1988 - 04.1997] 2YJ,3YE..YX7# MARK 8 |
13041-73010-08 |
US $35.38 |
||
|
13101
|
13101
13101-72010-01 Piston Sub-Assy, W/pin[12.1988 - 02.1993] 2YJ..YX76 ＳＴＤ,MARK1 |
13101-72010-01 |
from US $68.37 |
||
|
13101
|
13101
13101-72010-02 Piston Sub-Assy, W/pin[12.1988 - 02.1993] 2YJ..YX76 ＳＴＤ,MARK2 |
13101-72010-02 |
US $88.82 |
||
|
13101
|
13101
13101-72010-03
Piston Sub-Assy, W/pin
[12.1988 - 02.1993] 2YJ..YX76 ＳＴＤ,MARK3 |
13101-72010-03 |
— | ||
|
13101
|
13101
13103-72010 Piston Sub-Assy, W/pin[12.1988 - 02.1993] 2YJ..YX76 Ｏ／Ｓ ０．５０ |
13103-72010 |
US $94.64 |
||
|
13101
|
13101
13104-72010 Piston Sub-Assy, W/pin[12.1988 - 02.1993] 2YJ..YX76 Ｏ／Ｓ ０．７５ |
13104-72010 |
US $94.64 |
||
|
13101
|
13101
13105-72010 Piston Sub-Assy, W/pin[12.1988 - 02.1993] 2YJ..YX76 Ｏ／Ｓ １．００ |
13105-72010 |
US $94.64 |
||
|
13201
|
13201
13201-71011
Rod Sub-Assy, Connecting
[12.1988 - 02.1993] 2YJ..YX76 |
13201-71011 |
— | ||
|
13202
|
13202
13204-71011
Bearing Set, Connecting Rod
[12.1988 - 04.1997] 2YJ,3YE..YX7# Ｕ／Ｓ ０．２５ |
13204-71011 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-73010 Bearing Set, Connecting Rod (0.25)[12.1988 - 04.1997] 2YJ,3YE..YX7# Ｕ／Ｓ ０．２５ |
13204-73010 |
from US $90.09 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[12.1988 - 04.1997] 2YJ,3YE..YX7# |
13265-29025 |
from US $9.67 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[12.1988 - 04.1997] 2YJ,3YE..YX7# |
90170-09001 |
US $2.72 |
||
|
13405
|
13405
13405-71011 Flywheel Sub-Assy[03.1989 - 02.1993] 2YJ..YX76..5F |
13405-71011 |
from US $335.38 |
||
|
13405
|
13405
13405-79055 Flywheel Sub-Assy[12.1988 - 03.1989] 2YJ..YX76..5F |
13405-79055 |
US $374.19 |
||
| replacement | |||||
|
13405
|
13405
13405-71011 Flywheel Sub-Assy[12.1988 - 03.1989] 2YJ..YX76..5F |
13405-71011 |
from US $335.38 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[10.1988 - 04.1997] 2L..LX76 長さ＝２３，外径＝８; 1GFE..GX70..5F 長さ＝２３，外径＝８; 2YJ,3YE..YX7#..5F 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[10.1988 - 04.1997] 1GFE..GX70..5F; 2YJ,3YE..YX7#..5F |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-72010
Crankshaft
[12.1988 - 02.1993] 2YJ..YX76 |
13411-72010 |
— | ||
| replacement | |||||
|
13411
|
13411
13411-72900 Crankshaft[12.1988 - 02.1993] 2YJ..YX76 |
13411-72900 |
from US $839.79 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[10.1988 - 04.1997] 1GFE..GX70..5F; 2YJ,3YE..YX7#..5F |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13408-71010 Pulley, Crankshaft[12.1988 - 02.1993] 2YJ..YX76 |
13408-71010 |
US $206.17 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[09.1992 - 04.1997] 2YJ,3YE..YX7# |
90280-05005 |
from US $1.76 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[12.1988 - 09.1992] 2YJ..YX76 |
90280-05010 |
from US $1.83 |
||
|
13471C
|
13471C
90105-14013 Bolt(For Crankshaft Pulley Set)[12.1988 - 01.1989] 2YJ..YX76 |
90105-14013 |
US $17.04 |
||
| replacement | |||||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[12.1988 - 01.1989] 2YJ..YX76 |
90105-14069 |
US $14 |
||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[01.1989 - 04.1997] 2YJ,3YE..YX7# |
90105-14069 |
US $14 |
||
|
13477
|
13477
88451-20110
Pulley, Crankshaft, No.2
[12.1988 - 02.1993] 2YJ..YX76 |
88451-20110 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[12.1988 - 04.1997] 2YJ,3YE..YX7# |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[09.1992 - 04.1997] 2YJ,3YE..YX7# |
90280-05005 |
from US $1.76 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[12.1988 - 09.1992] 2YJ..YX76 |
90280-05010 |
from US $1.83 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
