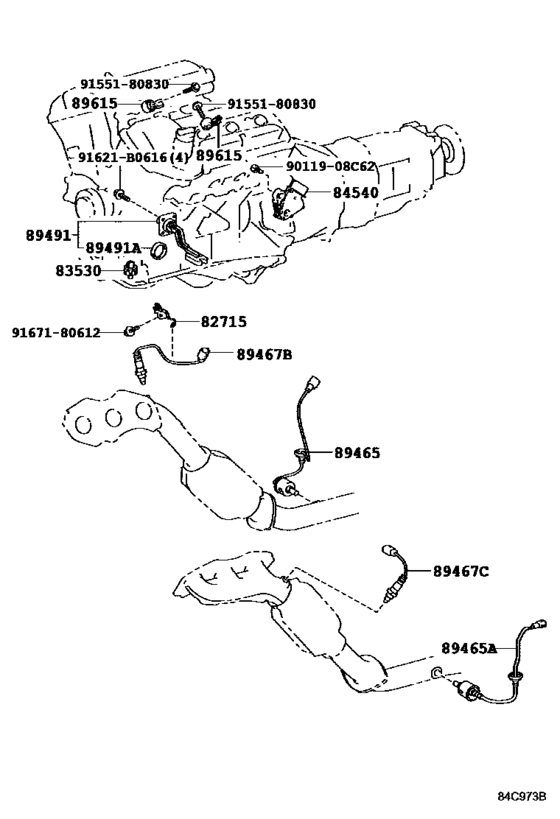

Switch & Relay & Computer ([12.2011 - ] ENGINE & TRANSMISSION (1112- )) Diagram Toyota MARK X
- Year
- 2011 - 2016
- Sales region
- General
- Frame
- GRX130
- grade
- 250G
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- MARK X
- From
- 12.2011
- To
- 11.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- MARK X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82715
|
82715
82715-22850 Bracket,wiring Harness Clamp[12.2011 - 08.2012] GRX130 |
82715-22850 |
US $2.62 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[12.2011 - 08.2012] GRX130 DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2011 - 08.2012] GRX130 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[12.2011 - 08.2012] GRX130 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2011 - 08.2012] GRX130 YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-04010 Switch Assy, Neutral StartNEUTRAL START [09.2013 - 11.2016] GRX130 (L) |
84540-04010 |
US $112.48 |
||
|
84540
|
84540
84540-71010 Switch Assy, Neutral Start[12.2011 - 08.2012] GRX130 |
84540-71010 |
from US $112.48 |
||
|
89465
|
89465
89465-30730 Sensor, Oxygen[12.2011 - 08.2012] GRX130 |
89465-30730 |
from US $139.12 |
||
|
89465A
|
89465A
89465-30730 Sensor, Oxygen[12.2011 - 08.2012] GRX130 |
89465-30730 |
from US $139.12 |
||
|
89467B
|
89467B
89467-22050 Sensor, Air Fuel RatioAIR FUEL RATIO [12.2011 - 08.2012] GRX130 |
89467-22050 |
US $188.64 |
||
|
89467C
|
89467C
89467-22030 Sensor, Air Fuel RatioAIR FUEL RATIO [12.2011 - 08.2012] GRX130 |
89467-22030 |
from US $146.52 |
||
|
89491
|
89491
89491-30061 Sensor, Engine Oil Level[12.2011 - 08.2012] GRX130 |
89491-30061 |
from US $140.60 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[12.2011 - 08.2012] GRX130 |
89493-60010 |
from US $2.24 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[12.2011 - 08.2012] GRX130 |
89615-20090 |
from US $36.02 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.94 |
||
|
9011908C62
|
9011908C62
90119-08C62 New Genuine Part |
90119-08C62 |
US $1.28 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.88 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
