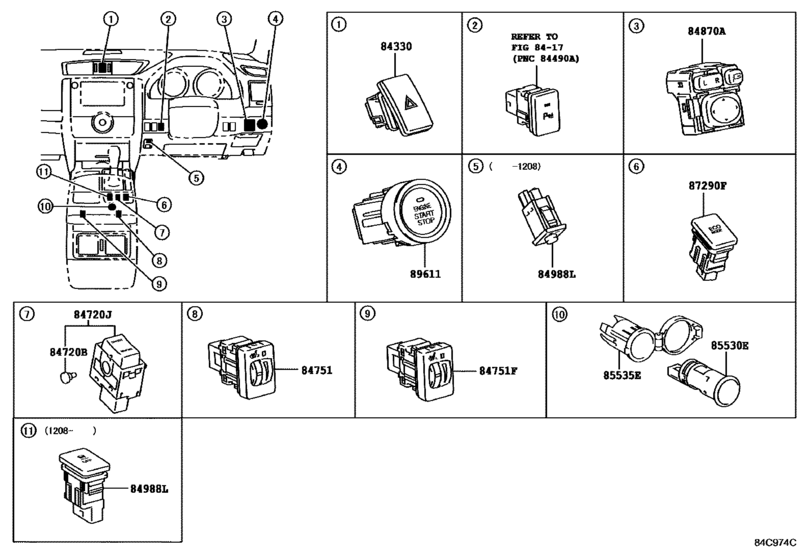

Switch & Relay & Computer ([12.2011 - ] INSTRUMENT PANEL (1112- )) Diagram Toyota MARK X
- Year
- 2011 - 2016
- Sales region
- General
- Frame
- GRX130
- grade
- 250G
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- MARK X
- From
- 12.2011
- To
- 11.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- MARK X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-22150 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [12.2011 - 08.2012] GRX130 |
84332-22150 |
US $34.36 |
||
| replacement | |||||
|
84330
|
84330
84332-22151 Switch Assy, Hazard Warning Signal[12.2011 - 08.2012] GRX130 |
84332-22151 |
US $31.16 |
||
|
84330
|
84330
84332-22151 Switch Assy, Hazard Warning Signal[01.2015 -] GRX130 |
84332-22151 |
US $31.16 |
||
|
84720B
|
84720B
90010-01155 Bulb (For Pattern Select Switch)[12.2011 - 08.2012] GRX130 14V0.56W,W/GREEN CAP |
90010-01155 |
US $4.80 |
||
|
84720J
|
84720J
84721-22010 Switch Assy, Pattern SelectPATTERN SELECT [12.2011 - 08.2012] GRX130 |
84721-22010 |
US $70.03 |
||
|
84751
|
84751
84751-60240 Switch, Seat HeaterSEAT HEATER [12.2011 - 08.2012] GRX130 S PACKAGE |
84751-60240 |
from US $47.61 |
||
| replacement | |||||
|
84751
|
84751
84751-60171 Switch, Seat Heater[12.2011 - 08.2012] GRX130 S PACKAGE |
84751-60171 |
from US $55.01 |
||
|
84751F
|
84751F
84751-60250
Switch, Seat Heater
[12.2011 - 08.2012] GRX130 S PACKAGE |
84751-60250 |
— | ||
| replacement | |||||
|
84751F
|
84751F
84751-60181 Switch, Seat Heater[12.2011 - 08.2012] GRX130 S PACKAGE |
84751-60181 |
from US $55.56 |
||
|
84870A
|
84870A
84872-58010 Switch Assy, Outer Mirror[12.2011 - 08.2012] GRX130 |
84872-58010 |
US $72.96 |
||
|
84988L
|
84988L
84988-22070 Switch, Vsc OffVSC OFF [12.2011 - 08.2012] GRX130 |
84988-22070 |
US $41.35 |
||
|
84988L
|
84988L
84988-48070 Switch, Vehicle Stability Control[08.2012 - 11.2014] GRX130 |
84988-48070 |
US $39.75 |
||
| replacement | |||||
|
84988L
|
84988L
84988-48071 Switch, Vehicle Stability Control[08.2012 - 11.2014] GRX130 |
84988-48071 |
US $34.94 |
||
|
84988L
|
84988L
84988-48071 Switch, Vehicle Stability Control[12.2014 -] GRX130 |
84988-48071 |
US $34.94 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[12.2011 - 08.2012] GRX130 |
85530-42010 |
from US $26.60 |
||
|
85535E
|
85535E
85535-30020 Cover, Power Outlet Socket, No.1[12.2011 - 08.2012] GRX130 |
85535-30020 |
from US $6.08 |
||
|
87290F
|
87290F
87290-22010 Switch Assy, EcoECO [12.2011 - 08.2012] GRX130 |
87290-22010 |
US $34.07 |
||
| replacement | |||||
|
87290F
|
87290F
87290-22011 Switch Assy, Eco[12.2011 - 08.2012] GRX130 |
87290-22011 |
US $34.07 |
||
|
87290F
|
87290F
87290-22011 Switch Assy, Eco[12.2014 -] GRX130 |
87290-22011 |
US $34.07 |
||
|
89611
|
89611
89611-30062 Switch, Push Start[12.2011 - 08.2012] GRX130 |
89611-30062 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30064 Switch, Push Start[12.2011 - 08.2012] GRX130 |
89611-30064 |
US $122.30 |
||
|
89611
|
89611
89611-30063 Switch, Push Start[02.2013 - 09.2016] GRX130 |
89611-30063 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-30064 Switch, Push Start[02.2013 - 09.2016] GRX130 |
89611-30064 |
US $122.30 |
||
|
89611
|
89611
89611-30064 Switch, Push Start[10.2016 -] GRX130 |
89611-30064 |
US $122.30 |
||
